12pc Kit
SKU: CRL-J-TJLJ-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,186.58 2186.58 USD $ 2,572.45

$ 2,572.45

(Save 15%)

See financing options →

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
Free mounting hardware included — a $100 value
COLOR 11 colors — pick yours
https://core4x4.com/web/image/product.template/1657/image_1920?unique=982bc5a

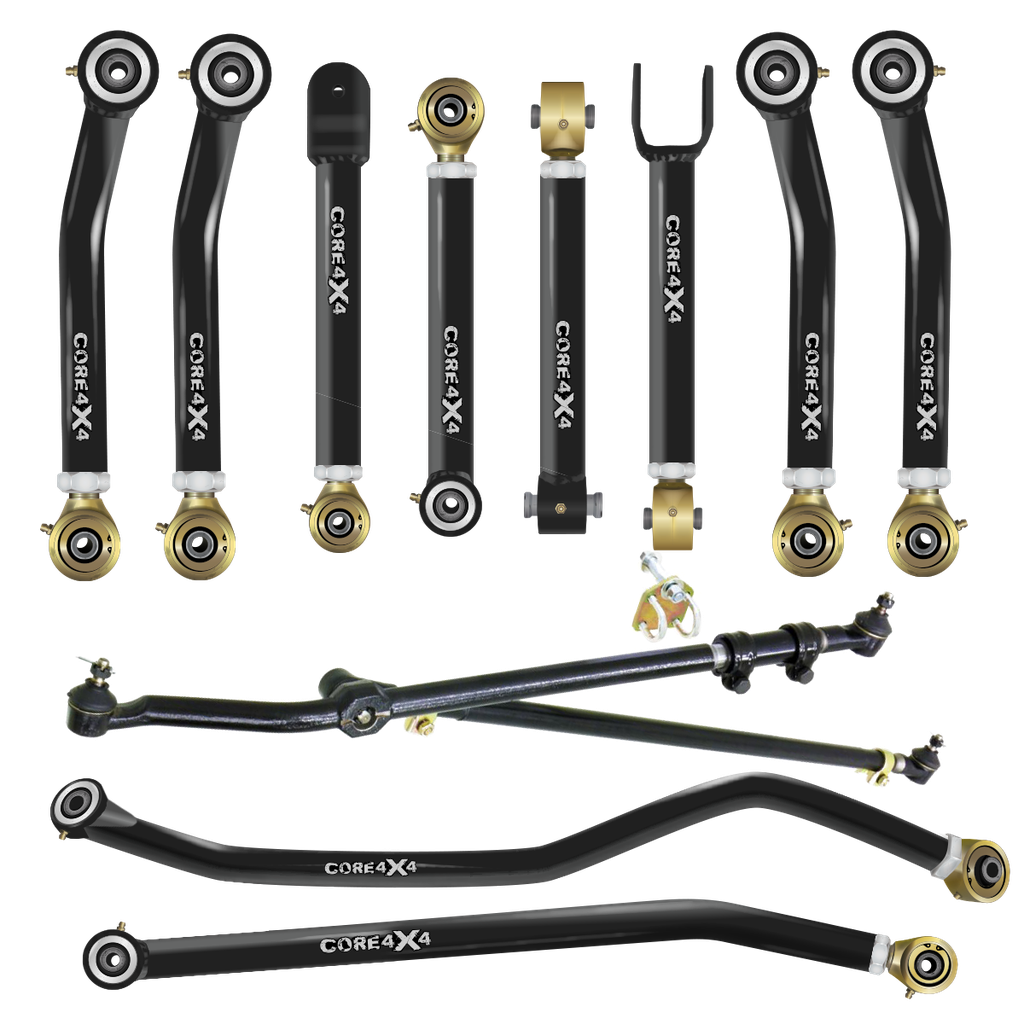

12pc Crawl Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CRL-J-TJLJ-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,186.58 2186.58 USD $ 2,572.45

$ 2,572.45

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Adjustment Type
  • TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Ultimate Suspension and Steering Upgrade

Elevate your Jeep Wrangler TJ or LJ (1997-2006) with the Crawl Series Complete Kit With Steering, a comprehensive suspension and steering solution designed for off-road adventurers and daily drivers alike. This all-inclusive kit provides unmatched durability, superior articulation, and advanced adjustability while enhancing on-road comfort and conquering rugged trails with confidence.

Key Features and Benefits

  • Complete suspension and steering solution – Includes eight control arms, front and rear track bars, and the RockJock Currectlync Steering Upgrade for precise alignment, axle centering, and steering control.
  • Unmatched articulation – Johnny Joints at both ends of every control arm provide superior flexibility and durability for tackling the toughest off-road terrains.
  • Lift compatibility – Fully adjustable to accommodate lifts from 0 to 6 inches, ensuring optimal suspension geometry and handling.
  • Durable steering system – The RockJock Currectlync Steering Upgrade features oversized 1.25-inch forged tie rod ends for unbeatable strength and control on challenging trails.

Double Adjustable Upgrade

Upgrade to double adjustability with left- and right-hand-threaded joints on all control arms. This optional feature allows for on-the-vehicle fine-tuning of axle centering, caster, and pinion angles, making suspension adjustments seamless and efficient.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for a hassle-free installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.



  • Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – A complete suspension and steering upgrade that enhances articulation, axle alignment, and handling, ensuring precise control in off-road conditions and smooth on-road stability.

  • CORE Advantage: Featuring Johnny Joints at every connection and the Rock Jock Currectlync Steering Upgrade, this kit delivers unmatched articulation, steering precision, and durability for superior off-road performance.

  • Adjustability: Designed to accommodate lifts from 0 to 6 inches, allowing precise tuning of caster, pinion, and axle alignment. Optional double adjustability enables on-vehicle fine-tuning for effortless suspension dialing.

  • Construction: Built with heavy-duty DOM tubing and oversized forged tie rod ends, this kit withstands extreme impacts. A U-bracket on the front uppers integrates with factory bushings while maintaining strength.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 1997 - 2006
Jeep Wrangler 2004 - 2006

Construction & Materials

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded U-bracket on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Crawl Series Rear Upper Adjustable Control Arms

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Crawl Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Adjustment Type Single Threaded or Double Threaded
TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE No or Yes-Include new rear track bar bracket (JKSOGS160)
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
A
Aaron Mar 23, 2024
★ ★ ★ ★ ★ Google
I have recently come to know Core 4x4 when I purchased a Jeep XJ and was looking for a place that had dedicated XJ suspension and components. Here is what makes them different than most other shops. All of their components are top shelf quality and they back it up if you break any of it. I was able to see their shop when I picked up an order locally and was impressed with their attention to detail and how they assemble and powder coat each part. I had an issue with a shackle and needed the threaded shaft to be shorter. I called in and talked to Kaden and he told me to come by and they would shorten it for me. When I got there, Kaden and Spencer (the owner) met me and talked about options and proceeded to make the right adjustments to fit my XJ. Told me if anything changes in the future and I need additional length, they would take care of me. So what really sets them apart from others is their Customer Service. Try calling in to any other Jeep suspension or part shop and see how they treat you. Been there - done that. Will continue to do business with Core and their team. Getting that kind of service for just a shackle has me thinking I may need to replace my JT components with Core's. Thanks Guys for being helpful good humans!
GV
Gil Valk Sep 24, 2025
★ ★ ★ ★ ★ Google
Excellent service, Prompt responses when needing technical assistance, Amazing looking parts that fit excellently. I would recommend them to anyone looking for suspension components. Also very well packaged when we received the shipment, which means no damage from shipping company!! We went with the Crawl Series double adjustable kit and it definitely looks killer on our build!!!
Review photo 1 Review photo 2 Review photo 3 Review photo 4
JC
John Cutler Oct 24, 2025
★ ★ ★ ★ ★ Google
In September 2025, we visited CORE 4x4 in Orem, Utah. CORE 4x4 makes control arms and other similar parts that stiffen the suspension of an off-road 4x4 vehicles, so that the off-road vehicles can travel on more rugged terrain. CORE 4x4 used to share this building with another business, and since this other business has moved elsewhere, CORE 4x4 will continue to expand and grow their business. Good for CORE 4x4 to be a growing company and to expand into the vacant part of the building.
Review photo 1 Review photo 2 Review photo 3 Review photo 4
DT
Dean Tk421 Feb 21, 2026
★ ★ ★ ★ ★ Google
I purchased the Jeep WJ control arms Camp series over a year ago. Very pleased and impressed. Easy installation and solid build. Bracket broke for rear upper control arm, they redesigned it to be more robust and sent me a new one with hardware, honoring their guarantee!
JH
Joe Hu Sep 24, 2025
★ ★ ★ ★ ★ Google
Amazing! I put all my new control arms and it drives a lot smoother and looks great!!!
Review photo 1
MH
mark hinz Mar 2, 2026
★ ★ ★ ★ ★ Google
Went above and beyond to get the parts we needed to complete our customers build for Moab Easter safari cant thank you enough for all your hard work and efforts Thank you and look forward to working with you in the near future
RD
Reagan D'mello Dec 23, 2025
★ ★ ★ ★ ★ Google
Love the product. Excellent customer support 👍🏽 …
JJ
Jason Jukich Jul 26, 2025
★ ★ ★ ★ ★ Google
Fast shipping, excellent communication, and awesome products
Z
Zion Sep 24, 2025
★ ★ ★ ★ ★ Google
Every product I have received from them has been nothing short of fantastic. Korby in Customer service went above and beyond to help me fix my own mistake. I cannot reccomend them enough.
VK
Victor Keele Sep 24, 2025
★ ★ ★ ★ ★ Google
Great customer service. I got my front upper and lower control arms and hardware on Friday afternoon. It didn’t come with instructions so I called Core 4X4 and they immediately e mailed me the instructions. Also, the kit I got had the spacers missing so I called. It was late Friday by thus time but they took care of the issue first thing Monday morning and I got the spacers on Tuesday. Great company.
Review photo 1 Review photo 2

Specifications

Vehicle Jeep Wrangler TJ (97–06), Jeep Wrangler LJ (04–06)
Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Adjustment Type Single Threaded, Double Threaded
TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE No, Yes-Include new rear track bar bracket (JKSOGS160)
Brand CORE 4X4
Series Crawl Series
Note to Core4x4: -
