SKU: CMP-J-TJLJ-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 1,869.75 1869.75 USD $ 2,199.70

$ 2,199.70

(Save 15%)

See financing options →

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
Free mounting hardware included — a $100 value
COLOR 11 colors — pick yours
https://core4x4.com/web/image/product.template/1622/image_1920?unique=982bc5a

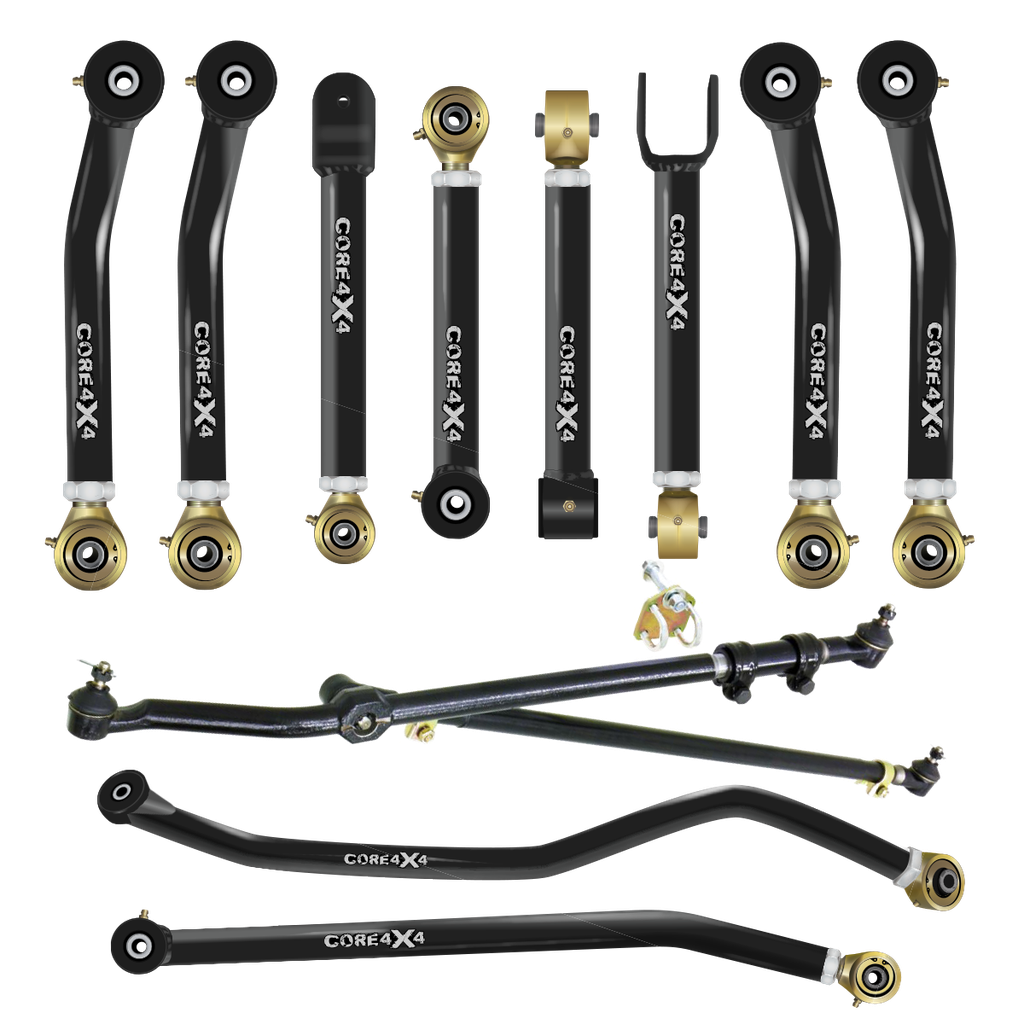

12pc Camp Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CMP-J-TJLJ-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 1,869.75 1869.75 USD $ 2,199.70

$ 2,199.70

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Transform Your Jeep Wrangler TJ/LJ’s Suspension Steering Performance

Upgrade your Jeep Wrangler TJ or LJ (1997-2006) with the Camp Series 12-Piece Kit, the ultimate solution for superior suspension control and steering precision. This all-in-one package combines adjustable control arms, track bars, and the RockJock Currectlync Heavy-Duty Steering Kit, ensuring optimal axle alignment, improved handling, and enhanced steering response on and off the road. Designed for lifts from 0 to 6 inches, this kit allows for precise alignment correction, axle re-centering, and suspension geometry adjustments, providing maximum stability, strength, and flexibility for every driving condition.

Key Features and Benefits

  • Complete suspension steering overhaul – Replaces all eight control arms, front and rear track bars, and steering components, delivering unmatched precision, control, and stability.
  • Eliminates death wobble enhances steering response – Corrects axle alignment, suspension geometry, and steering accuracy, reducing instability and improving high-speed drivability.
  • Built for strength maximum articulation – Features 5/16” wall DOM tubing, RockJock Johnny Joints, and tapered polyurethane bushings, ensuring long-lasting durability and flexibility.
  • Optimized for lifted vehicles – Fully adjustable to accommodate suspension lifts from 0 to 6 inches, allowing for precise caster, pinion, and alignment corrections.

Heavy-Duty Steering System

The RockJock Currectlync Heavy-Duty Steering Upgrade ensures tighter steering feel, reduced play, and increased durability on rough terrain.

Recommended Pairing

Pair this kit with your choice of springs and shocks to create a complete lift kit that surpasses anything else on the market.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for bolt-on installation using factory hardware, with optional Grade 8 hardware kits available for rusted or stubborn bolts.



  • Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – A complete suspension and steering upgrade designed to enhance handling, stability, and steering response.

  • CORE Advantage: Replaces all factory control arms, track bars, and steering components, ensuring precise axle alignment, improved drivability, and reduced death wobble.

  • Adjustability: Adjustable from 0 to 6 inches of lift, allowing for accurate caster correction, pinion angle optimization, and proper suspension geometry.

  • Construction: Heavy-duty 1.75” OD 5/16” wall DOM tubing for lower arms and 1.5” OD 5/16” wall DOM tubing for upper arms. Includes Rock Jock Johnny Joints for maximum articulation and the Rock Jock Currectlync Heavy Duty Steering Upgrade for superior steering durability.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Wrangler 1997 - 2006
Jeep Wrangler 2004 - 2006

Construction & Materials

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Camp Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Camp Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Camp Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 2pc Camp Series Rear Upper Adjustable Control Arms

Rear Upper built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Camp Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler TJ 97-06 LJ 04-06 Camp Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Camp Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE No or Yes-Include new rear track bar bracket (JKSOGS160)
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
CT
Canon TeSelle Jun 26, 2025
★ ★ ★ ★ ★ Google
Great Experience. I wanted to make changes to my order and Korby was more than willing to work with me to get everything corrected. Hope to deal with these guys again in the future.
MT
Mike T Nov 23, 2025
★ ★ ★ ★ ★ Google
Korby and the rest of the team at Core 4x4 know there stuff and answered my question in a timely manner. They even were able to quick ship a re-build kit for me so I could get my truck back on the road- Thanks!
C
caleb Mar 24, 2022
★ ★ ★ ★ ★ Google
Absolutely a great company. Ordered rear lower control arms with hardware but when i got it the hardware wasn't there but they sent it out right away and got a free t-shirt! Highly recommend.
EL
Eric Labrum May 27, 2025
★ ★ ★ ★ ★ Google
Best customer service I have ever experienced. They are my go to source do to quality and service
RM
R2d2 Movi78 Feb 21, 2026
★ ★ ★ ★ ★ Google
I’m extremely impressed with Core 4x4. The quality of their parts is outstanding — everything feels solid, well‑built, and engineered with real attention to detail. Shipping was fast and everything arrived perfectly packaged. Their customer service is just as good as their products: responsive, helpful, and genuinely committed to making sure you get exactly what you need. Overall, a top‑tier experience. I’ll definitely be buying from them again. Specially thank you Mr. Linscomb from Core 4x4. Arturo M.
JI
Jerome Segura III Jun 26, 2025
★ ★ ★ ★ ★ Google
I bought the 16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit to replace a worn budget 4" lift on my used JKU. These are top quality parts; very solid. Customer service is unsurpassed. They even matched prices on my order placed before the tax day sale. I made an error in ordering a drag link flip kit; they were quick to help me fix this too. There's peace of mind knowing these components are made in the USA. Thank you. 👍👍
Review photo 1 Review photo 2
MT
Ma TheMeatLoaf Mar 23, 2024
★ ★ ★ ★ ★ Google
Their website estimated 2 days to get my parts but actually took 11. No communication to let me know what’s going on. Parts were missing. Some days they answer questions, some they don’t. Didn’t let me know I’d have to alter stock bolts to fit their parts. All around just seems like they don’t care.
Z
Zion Sep 24, 2025
★ ★ ★ ★ ★ Google
Every product I have received from them has been nothing short of fantastic. Korby in Customer service went above and beyond to help me fix my own mistake. I cannot reccomend them enough.
TH
Todd Hume Jan 22, 2026
★ ★ ★ ★ ★ Google
Their products are great but the service is even better!! Thanks Korby.
TW
Travis Walker Sep 24, 2025
★ ★ ★ ★ ★ Google
I have nothing but great things to say about this company and their customer service. If you like American made products backed by warranty and amazing customer support, this is the company for you. I have a Lexus GX470 and love their rear control arms.
Review photo 1 Review photo 2

Specifications

Vehicle Jeep Wrangler TJ (97–06), Jeep Wrangler LJ (04–06)
Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
TJ/LJ Rear Track Bar Bracket - Required For vehicles with 3" or more of lift and/or have an SYE No, Yes-Include new rear track bar bracket (JKSOGS160)
Brand CORE 4X4
Series Camp Series
Note to Core4x4: -
