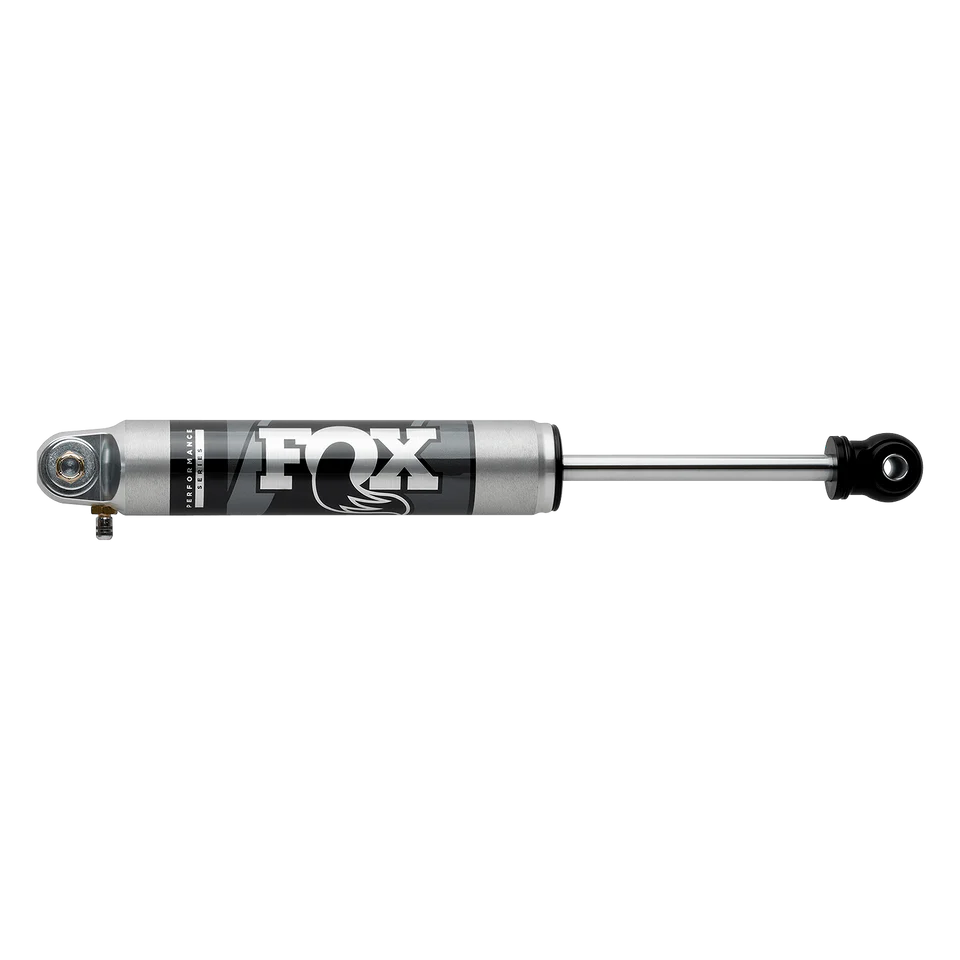

- Features - Performance tuned for vehicle specific application; Aluminum body dissipates heat faster than steel; IFP separates oil from high-pressure nitrogen gas; Black anodized cnc machined aluminum components.
- Series - Performance
- Travel - 6.22
- Body - 2.0" Impact extruded and cnc machined 6061-T6 clear anodized aluminum-one piece body resists rust over time.
- Shaft - 1/2" Hard chrome plated heat-treated alloy steel.
- Piston - Race-developed high-flow piston design.
- Valving - Application specific valving to maximize performance.
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length - 18.62
- Compressed Length - 12.4
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984 - 2001 | |
| Jeep | Comanche | 1986 - 1992 | |
| Jeep | Grand Cherokee | 1993 - 1998 | |
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) or Jeep Cherokee XJ (84–01) or Jeep Comanche MJ (86–92) or Jeep Grand Cherokee ZJ (93–98) |
| Brand | Fox |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
RT
Ruby Timm
Apr 27, 2025
★
★
★
★
★
Bought a new 2019 Ram 1500. Had bad rear wheel hop since new, got all four core 4x4 control arms and it fixed the issue. Thanks
MT
Ma TheMeatLoaf
Mar 23, 2024
★
★
★
★
★
Their website estimated 2 days to get my parts but actually took 11. No communication to let me know what’s going on. Parts were missing. Some days they answer questions, some they don’t. Didn’t let me know I’d have to alter stock bolts to fit their parts.
All around just seems like they don’t care.
JT
Jay Taylor
May 27, 2025
★
★
★
★
★
Had a worn out set of rear upper control arms on my TJ. These were old rubicon express long arms. can’t buy replacements and no one makes a direct fit replacement.
Talked with Korby at core off road sent some measurements and photos and a week later new arms showed up. Packaging was perfect fit was perfect.
Would highly recommend giving these guys a call.
BZ
Brandon Zeiders
Dec 23, 2025
★
★
★
★
★
I ordered the jeep xj long arm lift kit. Control arms showed up first they turned out amazing!! Had some issues with the powder coating on the cross member and sent korby and the team at core4x4 an email. They got right on making me another cross member and sending it out. I appreciate all the help they've given me along the way. Very fast response thru emails. Build quality seems to be pretty dang nice!! Can't wait to install it and enjoy it!
DA
Dastrup Auto
Mar 25, 2019
★
★
★
★
★
I have bought a bunch of sets of arms, track bars and even had custom work done by Core 4x4. Just yesterday, Spence and Cam delivered an awesome cross member they designed and built for me! All of their products have been exceptional! I have personally seen their progression with design changes/updates. They truly take pride in their work and products. Quality control is second to none! They’ve also helped me diagnose issues with different jeeps I’ve had, as well as Dodge/Rams. These guys know their stuff! Really! I trust them whole heartedly and absolutely love their products/quality of work! I’ve referred many people, and will always continue to do so. Keep up the good work Core4x4!
OK
oleg k
Nov 23, 2025
★
★
★
★
★
I recently ordered a set of control arms from Core 4x4, and the entire experience was absolutely top-notch from start to finish. The ordering process was smooth, the parts arrived quickly, and the control arms themselves are extremely high quality—solid construction, great finish, and clearly built to last.
I also want to give a special shout-out to Korby, the guy I spoke with during the process. His customer service was amazing. He went above and beyond to make sure I got exactly what I needed, answered all my questions, and made the whole experience stress-free. You don’t see service like that very often these days.
If you’re looking for high-quality suspension components backed by truly exceptional customer service, I highly recommend Core 4x4. I’ll definitely be buying from them again.
SC
Singer Heating and Cooling
Mar 25, 2018
★
★
★
★
★
These guys are great. You can get them on the phone for support. This important and is not always the case with other custom parts builders. Their control arms are bomb proof and offer plenty of options. You can get real genuine Currie Johnny joints without paying the price for Currie arms.
MB
Melody Baker
Jan 22, 2026
★
★
★
★
★
I ordered a part for my 03 Jeep TJ and all I can say is wow! Korby at Core 4x4 is a total rockstar!! There was a glitch with my payment and within minutes, Korby reached out to me to get it fixed, then sent my receipt with the tracking number. I lost the number and reached out to him during the Holidays and got a rapid response with the number again. I can’t say enough about the customer service and the quality of parts. Thank you!!
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
JS
Jeffrey Shafer
Jan 22, 2026
★
★
★
★
★
Exceptional customer service. All my questions were asked in a timely manner and parts were replaced when an error occured. I encourage people to make purchases due to their exceptional quality products, but also because of their customer service. Will make additional purchases in the future.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Wrangler TJ (97–06), Jeep Wrangler LJ (04–06), Jeep Cherokee XJ (84–01), Jeep Comanche MJ (86–92), Jeep Grand Cherokee ZJ (93–98) |
| Brand | Fox |
