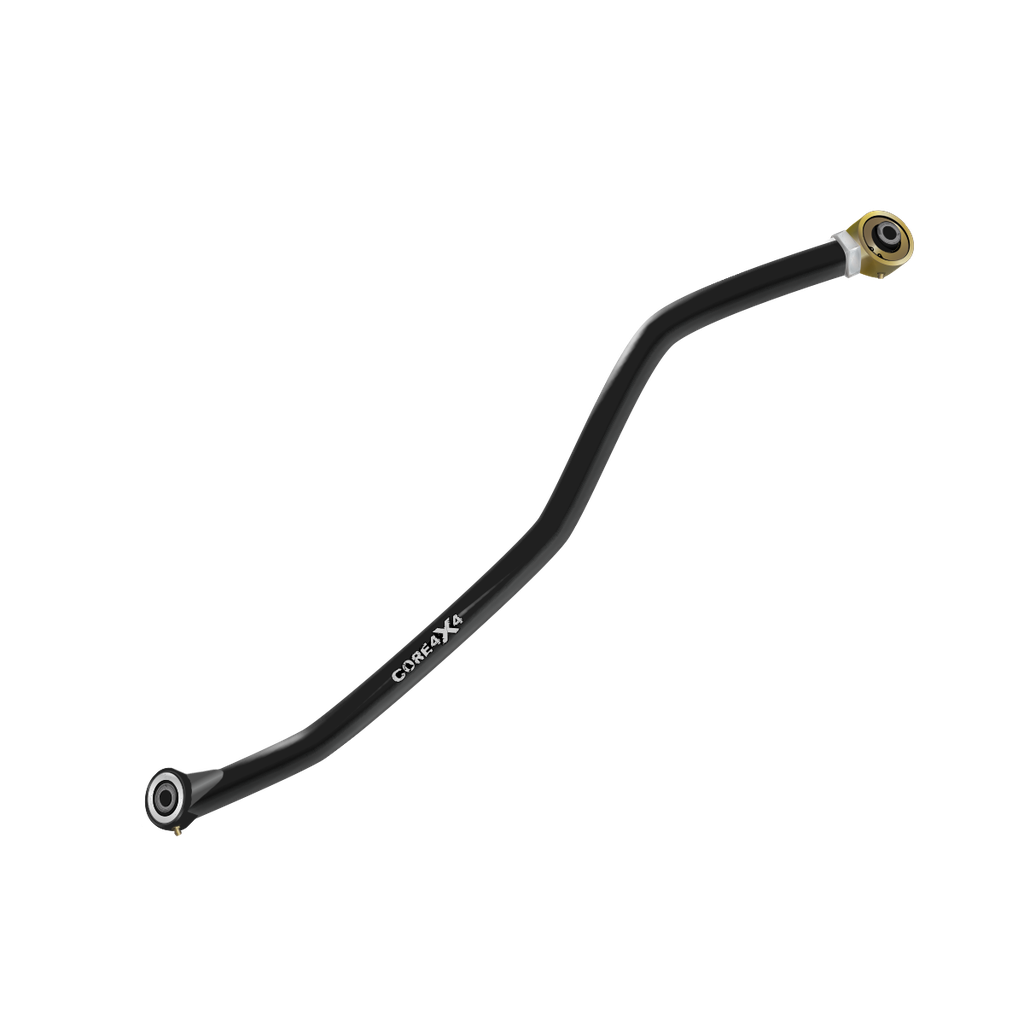

Jeep Wrangler TJ/LJ Crawl Series Front Heavy-Duty Adjustable Track Bar

Name: Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Front Heavy-Duty Adjustable Track Bar
Brand: CORE 4X4
SKU: CRL-J-TJLJ-FTB1
Price: 324.14 USD
Availability: InStock

Shop

SKU: CRL-J-TJLJ-FTB1 ★★★★★ (132 reviews)

$ 324.14 324.14 USD $ 341.20

$ 341.20

(Save 5%)

See financing options →

Order today — ships by Mon, Jun 1

Salt Lake City, UT change

Order by 3:00 PM MT today — we'll start tomorrow

See full timeline

Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install

Jeep Wrangler TJ 97-06 LJ 04-06 Crawl Series Front Heavy-Duty Adjustable Track Bar

Shared Image from x_studio_series_image_1

Shared Image from x_studio_series_image_2

Shared Image from x_studio_series_image_3

Shared Image from x_studio_series_image_4

COLOR 11 colors — pick yours

	Daily Confidence $236	Trail-Ready $250	Trail Domination $324
Articulation	30°	65°	95°
Joint Type	Flex Polyurethane	Forged Johnny Joint	Forged Johnny Joint
Tubing	1.875" OD lowers / 1.625" OD uppers · 3/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM
Maintenance	Periodic greasing	Periodic greasing	Periodic greasing
Warranty	Lifetime	Lifetime	Lifetime
	SELECT CRUISE →	SELECT CAMP →	SELECT CRAWL →

Made in USA Orem, Utah

Lifetime Guarantee Unconditional

10 Colors In-house powder coat

Fully Adjustable 0-6" of lift

3 X-Series Options Only Core 4x4

Optimized Stability for On and Off-Road Adventures

Transform your Jeep Wrangler TJ/LJ (1997-2006) with the Crawl Series Front Track Bar. Designed to provide unmatched stability and handling, this premium track bar enhances your vehicle's axle alignment and suspension geometry, ensuring peak performance on rugged trails and smooth highways alike. Whether you’re tackling rocky climbs or navigating urban streets, this track bar guarantees the control and durability you need.

Key Features and Benefits

Unmatched Off-Road Flexibility – Equipped with Johnny Joints at both ends, this track bar offers extreme articulation, allowing your suspension to flex freely and handle even the most challenging terrains.
Robust Construction – Built from 1.5" OD .313 Wall DOM tubing and paired with high-quality Johnny Joints, this track bar provides superior strength and longevity, outlasting standard components in demanding conditions.
Adjustability for Precision Alignment – Adjustable to accommodate lifts from 0 to 6 inches, the Crawl Series Front Track Bar ensures accurate axle centering, reduces suspension stress, and improves overall handling. For lifts above 6 inches, additional options are available upon request.
Recommended Pairing for Full Front-End Stability – For a complete suspension solution, pair this track bar with Crawl Series Front Control Arms to optimize alignment, stability, and suspension geometry.

Engineered for Maximum Performance

The Crawl Series Front Track Bar is meticulously crafted to provide reliable performance across all terrains. Its robust DOM tubing construction and dual Johnny Joints deliver superior articulation and durability, ensuring your suspension maintains optimal performance during extreme off-road adventures or everyday commutes. Adjustable in-place, it offers a seamless solution for aligning your axle and optimizing suspension performance.

Two-Stage Powder Coating for Long-Lasting Durability

Each Crawl Series Front Track Bar undergoes a two-stage powder coating process for maximum durability and corrosion resistance.

Zinc Primer Base Coat – Guards against rust and corrosion.

Durable Top Coat – Available in 10 vibrant colors to protect your investment and customize your Jeep’s appearance.

Made in the USA

Crafted in our Orem, UT facility, the Crawl Series Front Track Bar represents the pinnacle of American manufacturing. We oversee every step of the production process to ensure the highest standards of quality, durability, and performance while supporting local industries.

Optional Hardware Upgrade

The Crawl Series Front Track Bar is designed for straightforward installation using factory hardware. To secure a perfect fit, installation requires drilling the frame mount, and we include the necessary drill bit and hardware for the process. Optional Grade 8 hardware kits are also available for replacing rusted or worn components.

Vehicle Fitment: Jeep Wrangler TJ LJ 97-06 – Designed for maximum stability and precise axle alignment, this track bar improves handling, reduces suspension stress, and enhances control on extreme off-road trails and smooth pavement alike.
CORE Advantage: Upgrade your front-end stability with an adjustable, high-strength track bar engineered to eliminate axle misalignment issues, improve ride quality, and allow full suspension articulation while maintaining steering precision at all lift heights.
Adjustability: Fully adjustable to correct axle positioning on lifts from 0 to 6 inches. Includes frame-side mounting bolts and the required drill bit for hassle-free installation, ensuring a precise, secure fit without additional hardware purchases.
Construction: Built from 1.5” OD DOM tubing with a 5/16” wall thickness, this track bar delivers superior strength and durability, allowing your suspension to perform under extreme off-road conditions while ensuring long-term reliability.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make	Model	Submodel	Years
Jeep	Wrangler		1997 - 2006
Jeep	Wrangler		2004 - 2006

Each rebuild kit includes all necessary components to replace and restore wearable parts.

Master Rebuild kit for CRL-J-TJLJ-FTB1 $ 42.00

Construction & Materials

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle	Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06)
Brand	CORE 4X4
Color	Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series	Crawl Series
Lift Size	0" — 6" or 6"+
Hardware	No Hardware or Complete Kit
Placement on Vehicle	Front
Mounting Style	Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
