7pc Trail Series Rear Adjustable Control Arm, Track Bar, End Link Kit

SKU: TRL-R-15-2009-K7 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 981.71 981.71 USD $ 1,154.95

$ 1,154.95

(Save 15%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://core4x4.com/web/image/product.template/1636/image_1920?unique=edc8f61

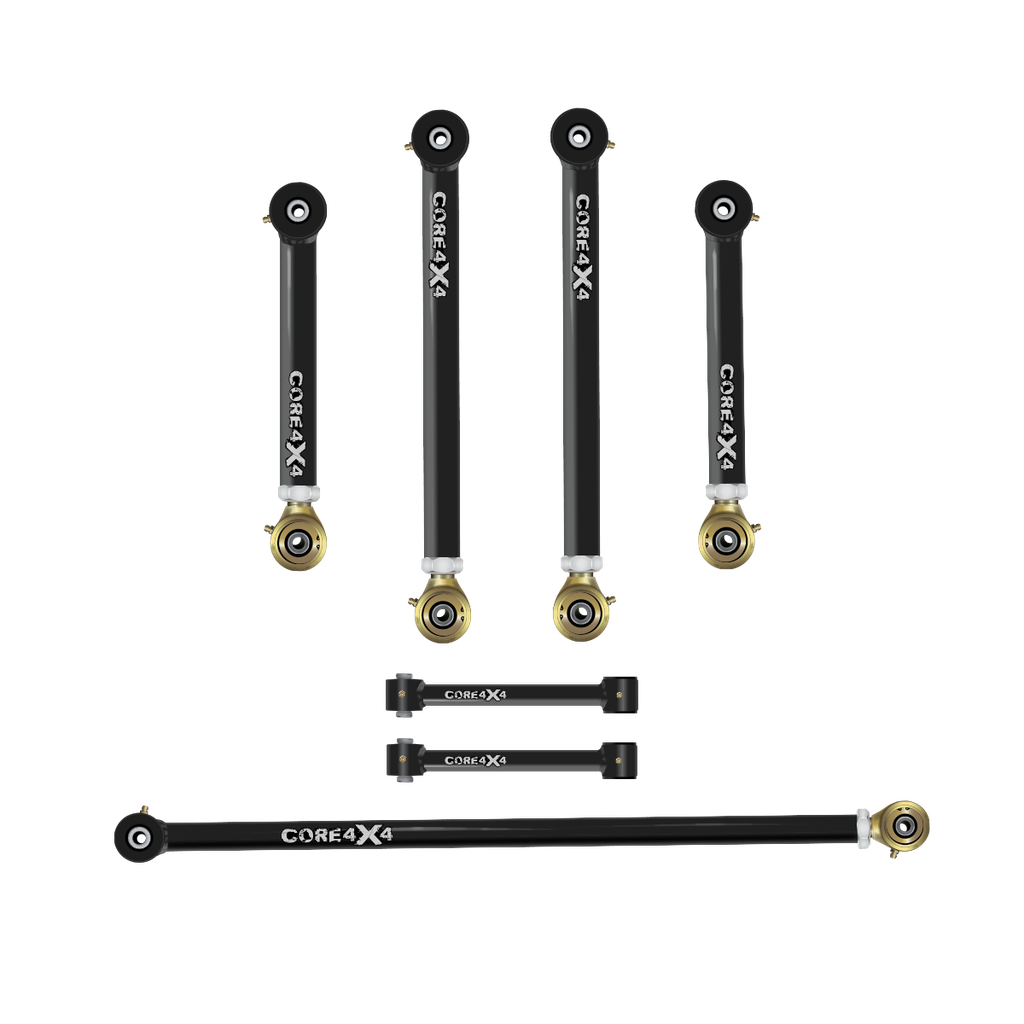

7pc Trail Series Rear Adjustable Control Arm, Track Bar, End Link Kit

SKU: TRL-R-15-2009-K7
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 981.71 981.71 USD $ 1,154.95

$ 1,154.95

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Brake Cable Attachment Point
  • Factory Air Ride
  • Year Range
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

Maximize Your Vehicle's Stability Handling

Transform your Ram 1500 (2009–Present) with the Trail Series Adjustable Rear Suspension Kit with Sway Bar End Links, a complete solution for improved traction, reduced body roll, and optimized axle control. Designed to provide greater adaptability for towing, daily driving, and off-road performance, this kit ensures your suspension is dialed in for superior ride quality and handling.

Key Features Benefits

  • Heavy-duty DOM tubing construction – Built with heavy-wall DOM tubing, offering exceptional strength and durability.
  • Rock Jock Johnny Joints high-grade polyurethane bushings – Features Johnny Joints at the adjustable ends for maximum articulation and polyurethane bushings on the fixed ends to reduce NVH (Noise, Vibration, and Harshness).
  • Adjustable for pinion angle axle alignment – Designed for precise rear axle alignment, reducing driveline vibrations and maintaining proper suspension geometry.
  • Eliminates wheel hop enhances traction – The factory rubber bushings allow excessive movement, leading to wheel hop and loss of traction. Our control arms stabilize the axle, ensuring better power transfer and smoother acceleration.
  • Improved stability handling – The included sway bar end links reduce body roll, further improving cornering ability and overall suspension control.

Fine-Tune Your Suspension for a Smoother Ride

The Trail Series Adjustable Rear Suspension Kit gives you full control over axle positioning and pinion angle adjustments, ensuring optimal handling and a smooth, vibration-free ride. Whether you're lifting, lowering, or fine-tuning your truck's suspension, this kit provides the flexibility needed to achieve your ideal setup.

Highly Durable Two-Stage Powder Coating

Every component undergoes a two-stage powder coating process for maximum durability and corrosion resistance. The zinc primer base coat provides advanced rust protection, while the durable topcoat is available in 10 color options for customization.

Optional Hardware Upgrade

This kit is designed for installation using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately).

Proudly Made in the USA

Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.

Final Thoughts

The Trail Series Adjustable Rear Suspension Kit with Sway Bar End Links provides the ultimate combination of adjustability, ride quality, and suspension control. For complete rear-end stability and cornering performance, this kit ensures your truck remains planted, responsive, and smooth over any terrain. Upgrade today and experience the difference in traction, stability, and ride comfort!


  • Vehicle Fitment: Designed for Ram 1500 09+, this rear suspension kit enhances traction, stability, and axle control for daily driving, towing, and off-road use.

  • CORE Advantage: Eliminates wheel hop, reduces body roll, and improves power transfer with Johnny Joints for articulation and polyurethane bushings to minimize NVH for a smoother, more controlled ride.

  • Adjustability: Adjustable for pinion angle and axle alignment, supporting up to a 6-inch lift or 6-inch drop to maintain proper suspension geometry and driveline efficiency.

  • Construction: Rear upper and lower control arms use 1.75” x 5/16” DOM tubing, while the panhard bar is 1.5” x 5/16” DOM. Features Rock Jock Johnny Joints at adjustable ends, polyurethane bushings at fixed ends, and .75” cold-rolled steel end links.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Ram 1500 2009 - Present

Each rebuild kit includes all necessary components to replace and restore wearable parts.

Master Rebuild kit for TRL-R-15-2009-K7 $ 261.00
Master Rebuild kit for TRL-R-15-2009-RL2 $ 78.00
Master Rebuild kit for TRL-R-15-2009-RU2 $ 78.00
Master Rebuild kit for TRL-R-15-2009-EL2 $ 70.00
Master Rebuild kit for TRL-R-15-2009-RPTB1 $ 35.00

Construction & Materials

Ram 1500 09+ 2pc Trail Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Ram 1500 09+ 2pc Trail Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Ram 1500 09+ 2pc Trail Series Rear Upper Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Ram 1500 09+ Trail Series Rear Rear Heavy-Duty Adjustable Panhard/Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Ram 1500 (09–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Trail Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6"
Hardware No Hardware or Complete Kit
Brake Cable Attachment Point No or Yes
Factory Air Ride No or Yes
Year Range 09+
Placement on Vehicle Rear Upper, Rear Lower, Rear
Mounting Style Bolt-On
