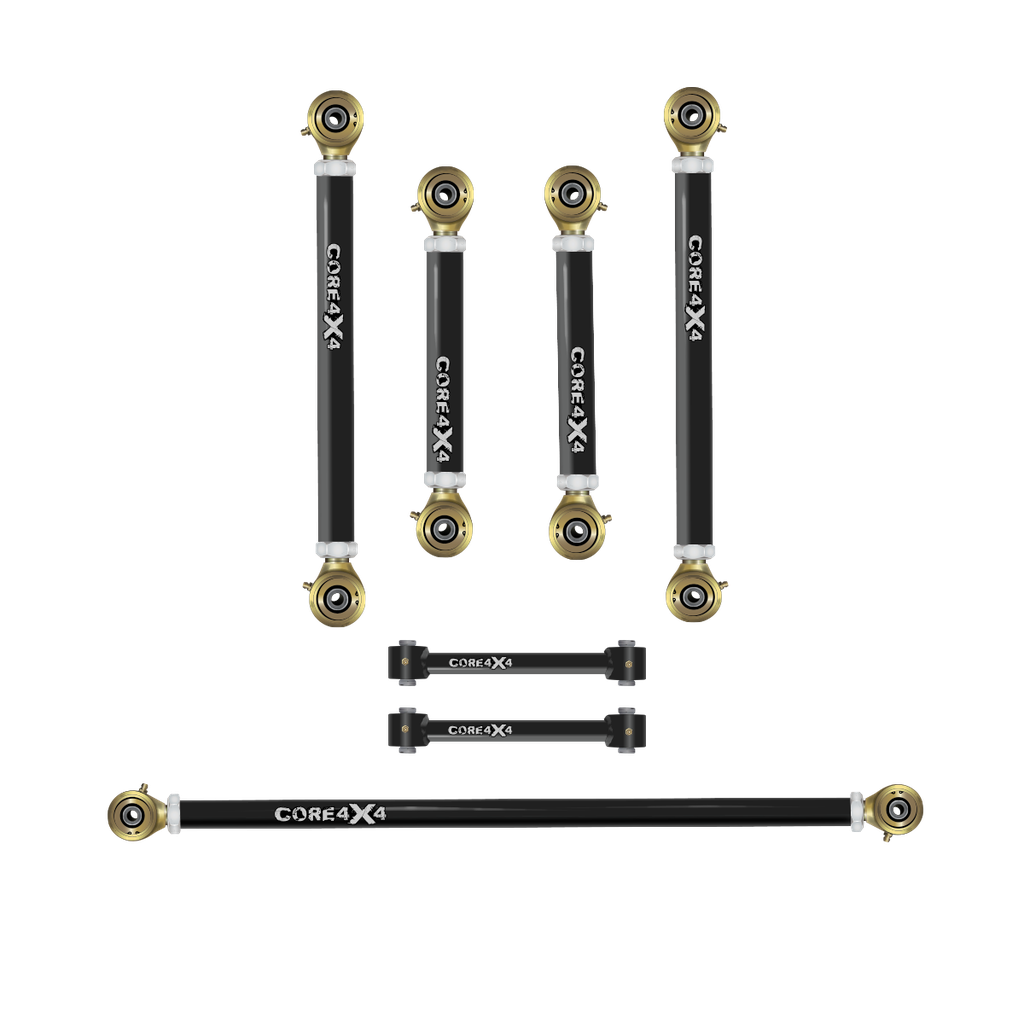

This kit includes 4 components, each built and powder-coated in-house.
Ram 1500 09+ 2pc Track Series Rear Fixed Length End Links
View Component →
Ram 1500 09+ 2pc Track Series Rear Lower Adjustable Control Arms
View Component →
Ram 1500 09+ 2pc Track Series Rear Upper Adjustable Control Arms
View Component →
Ram 1500 09+ Track Series Rear Rear Heavy-Duty Adjustable Panhard/Track Bar
View Component →Optimize Rear Suspension for Maximum Stability Control
Upgrade your Ram 1500 (2009–Present) with the Track Series Adjustable Rear Suspension Kit with Sway Bar End Links, designed to eliminate wheel hop, enhance traction, and fine-tune your pinion angle for smooth, predictable performance. Whether you’re daily driving, towing, off-roading, or launching at the track, this kit provides precise axle alignment, reduced driveline vibrations, and increased rear-end stability.
Key Features Benefits
- Heavy-Duty DOM Steel Construction – Built from high-strength DOM tubing, ensuring maximum durability and resistance to flex under extreme loads and aggressive driving conditions.
- Rock Jock Johnny Joints at Both Ends – Fully serviceable and rebuildable joints provide unmatched articulation, reduced suspension bind, and superior axle movement, eliminating wheel hop and axle wrap.
- Precision Adjustability for Pinion Angle Alignment – Left- and right-hand threaded adjusters allow for on-truck adjustments, enabling fine-tuning of pinion angle to eliminate driveline vibrations, correct rear axle alignment, and improve handling on lifted, leveled, or performance-tuned applications.
- Eliminates Wheel Hop Maximizes Traction – The stock rubber bushings preload the axle, causing oscillation and instability under acceleration. This kit eliminates wheel hop, ensuring consistent traction and power delivery.
- Enhanced Stability with Sway Bar End Links – The included sway bar end links help further reduce body roll, improve cornering stability, and enhance rear-end responsiveness, ensuring a more planted and controlled driving experience.
Total Control with Full Suspension Adjustability
The Track Series Adjustable Rear Suspension Kit gives you full control over your rear suspension geometry, allowing you to correct axle alignment, fine-tune pinion angles, and enhance overall ride quality with on-truck adjustments. Whether you’re optimizing for a lifted setup, a lowered stance, or stock height, this system ensures better traction, improved handling, and increased longevity.
Highly Durable Two-Stage Powder Coating
Each component undergoes a two-stage powder coating process for superior durability and corrosion resistance:
Zinc primer base coat for maximum rust protection.
Durable topcoat available in 10 color options for a customized look.
Optional Hardware Upgrade
Designed to be installed using factory hardware, but for increased durability and long-term reliability, we offer an optional Grade 8 hardware kit (sold separately). This upgrade ensures a stronger, more secure installation, reducing the risk of unwanted shifting under heavy loads.
Proudly Made in the USA
Every CORE 4X4 product is designed, manufactured, and tested in Orem, UT, ensuring superior craftsmanship and strict quality control. By keeping production local, we maintain high-quality material selection, precision machining, and consistent durability.
Final Thoughts
The Track Series Adjustable Rear Suspension Kit with Sway Bar End Links is the ultimate solution for Ram 1500 owners looking to eliminate wheel hop, maximize traction, and fine-tune suspension performance. Whether you're lifting, lowering, or optimizing your truck for towing or high-performance driving, this kit delivers adjustability, strength, and precision handling.
Vehicle Fitment: Designed for Ram 1500 09+, this adjustable rear suspension kit enhances axle stability, traction, and handling for daily driving, towing, track use, and off-road performance.
CORE Advantage: Eliminates wheel hop and axle wrap while optimizing pinion angle with Johnny Joints at both ends for articulation and sway bar end links for improved stability.
Adjustability: Fully adjustable for applications lifted or lowered up to 6”, allowing precise axle alignment, pinion angle correction, and optimized suspension geometry.
Construction: Built from 1.75" OD .313" wall DOM tubing for the upper and lower control arms, 1.5" OD .313" wall DOM tubing for the panhard track bar, and .75" OD cold-rolled steel for the sway bar end links. Features Rock Jock Johnny Joints at all ends for durability and articulation.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 1500 | 2009 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on both fixed ends.
Rear Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6" |
| Hardware | No Hardware or Complete Kit |
| Brake Cable Attachment Point | No or Yes |
| Factory Air Ride | No or Yes |
| Series | Track Series |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
