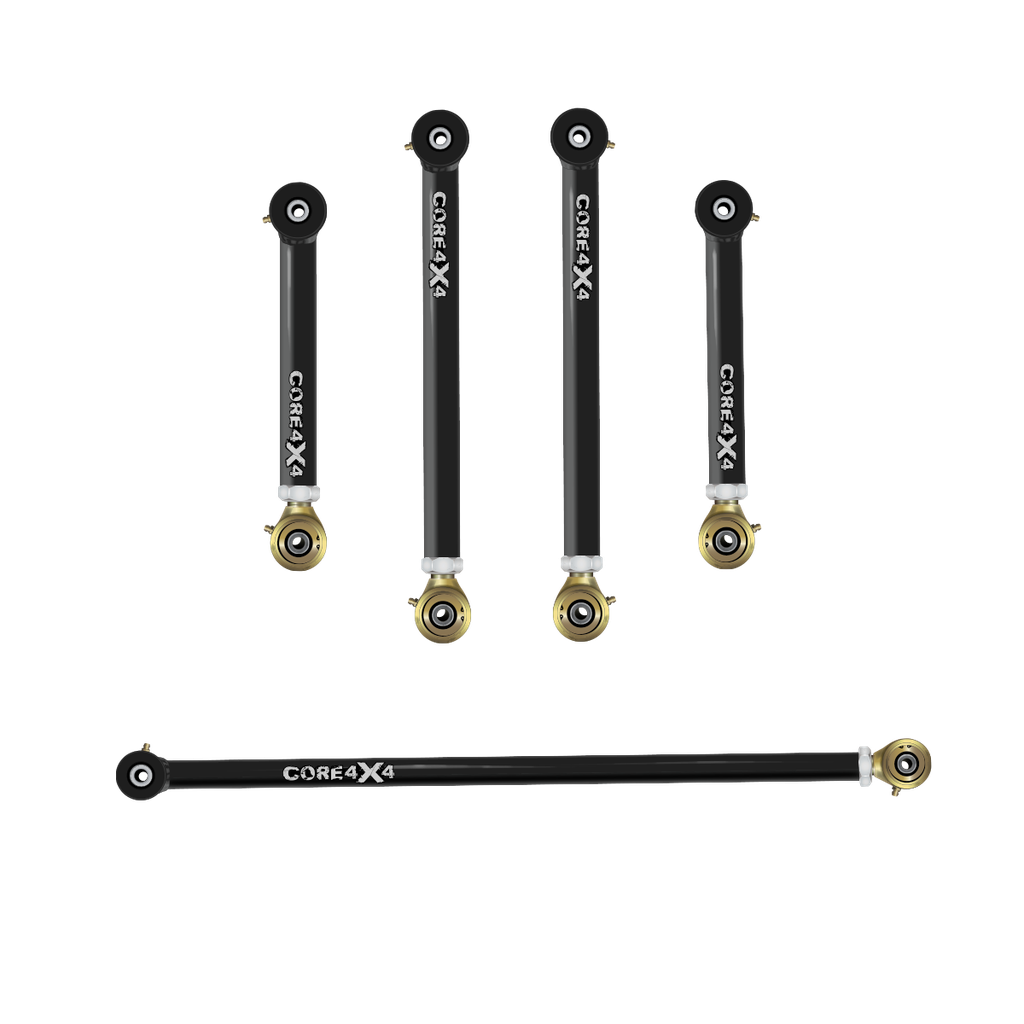

Ram 1500 09+ 5pc Trail Series Rear Adjustable Control Arms, Panhard/Track Bar Kit

SKU: TRL-R-15-2009-K5
Fits: 2009 - Present Ram 1500 Add vehicle
Add Vehicle Google 5.0 ★★★★★ (132 reviews)

$ 847.83 847.83 USD $ 997.45

$ 997.45

Starting at $110/mo or 0% APR with . See if you qualify

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Brake Cable Attachment Point
  • Factory Air Ride
  • Year Range
  • Note to Core4x4:

Select Color to see price and add to cart.

4–8 hr install Moderate Alignment recommended Lifetime warranty on all non-wear items Made In USA

Enhanced Stability Suspension Control

Maximize the control and performance of your Ram 1500 (2009–Present) with the Trail Series Adjustable Rear Suspension Kit. Designed for city driving, towing, and off-road performance, this complete kit provides adjustability to fine-tune rear axle alignment, eliminate wheel hop, reduce driveline vibrations, and improve overall ride quality.

What's Included?

  • Trail Series Adjustable Rear Upper Control Arms (TRL-R-15-2009-RU2)
  • Trail Series Adjustable Rear Lower Control Arms (TRL-R-15-2009-RL2)
  • Trail Series Adjustable Rear Panhard Track Bar (TRL-R-15-2009-RPTB1)

Key Features Benefits

  • High-strength DOM tubing construction – Built with heavy-wall DOM tubing, offering a balance of strength and durability to withstand extreme conditions.
  • Rock Jock Johnny Joints high-grade polyurethane bushings – Features Johnny Joints at the adjustable ends for maximum articulation and polyurethane bushings on the fixed ends to minimize NVH (noise, vibration, and harshness).
  • Easily adjustable for rear axle pinion angle alignment – Allows for precise adjustments to correct driveline angle and optimize suspension geometry.
  • Eliminates wheel hop enhances traction – Factory rubber bushings preload the axle, causing instability under acceleration. Our Trail Series kit reduces axle movement, improving traction and ensuring smooth power delivery.

Recommended Pairing for Total Suspension Control

For optimal rear-end stability, we recommend pairing this kit with Trail Series Adjustable Rear Sway Bar End Links (TRL-R-15-2009-EL2) to further improve stability and cornering performance.

Fine-Tune Rear Axle Alignment Pinion Angle

Unlike factory control arms, which lack adjustability, the Trail Series Adjustable Rear Suspension Kit gives you full control over pinion angle and axle positioning, reducing driveline vibrations, improving traction, and maintaining proper geometry—essential for lifted or modified trucks.

Highly Durable Two-Stage Powder Coating

Each component undergoes a two-stage powder coating process for long-term durability. The first stage includes a zinc primer base coat for maximum rust resistance, followed by a durable topcoat available in 10 color options for a customized look.

Optional Hardware Upgrade

Designed for installation using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately).

Proudly Made in the USA

Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.

Final Thoughts

The Trail Series Adjustable Rear Suspension Kit provides adjustability, premium ride quality, and suspension control, making it a must-have upgrade for Ram 1500 owners. For complete rear-end stability and cornering performance, pair this kit with Trail Series Adjustable Rear Sway Bar End Links (TRL-R-15-2009-EL2).

Upgrade today and experience the difference in traction, stability, and ride quality!


Make Model Submodel Years
Ram 1500 2009 - Present

Each rebuild kit includes all necessary components to replace and restore wearable parts.

Master Rebuild kit for TRL-R-15-2009-K5 $ 191.00
Master Rebuild kit for TRL-R-15-2009-RL2 $ 78.00
Master Rebuild kit for TRL-R-15-2009-RU2 $ 78.00
Master Rebuild kit for TRL-R-15-2009-RPTB1 $ 35.00

Vehicle Ram 1500 (09–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Trail Series
Lift Size 0" — 6" or 6"+ or -6" — -1"
Hardware No Hardware or Complete Kit
Brake Cable Attachment Point No or Yes
Factory Air Ride No or Yes
Year Range 09+
