SKU: CMP-J-JT-K12 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,387.40 2387.4 USD $ 2,808.70

$ 2,808.70

(Save 15%)

See financing options →

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
Free mounting hardware included — a $100 value
COLOR 11 colors — pick yours
https://core4x4.com/web/image/product.template/1724/image_1920?unique=982bc5a

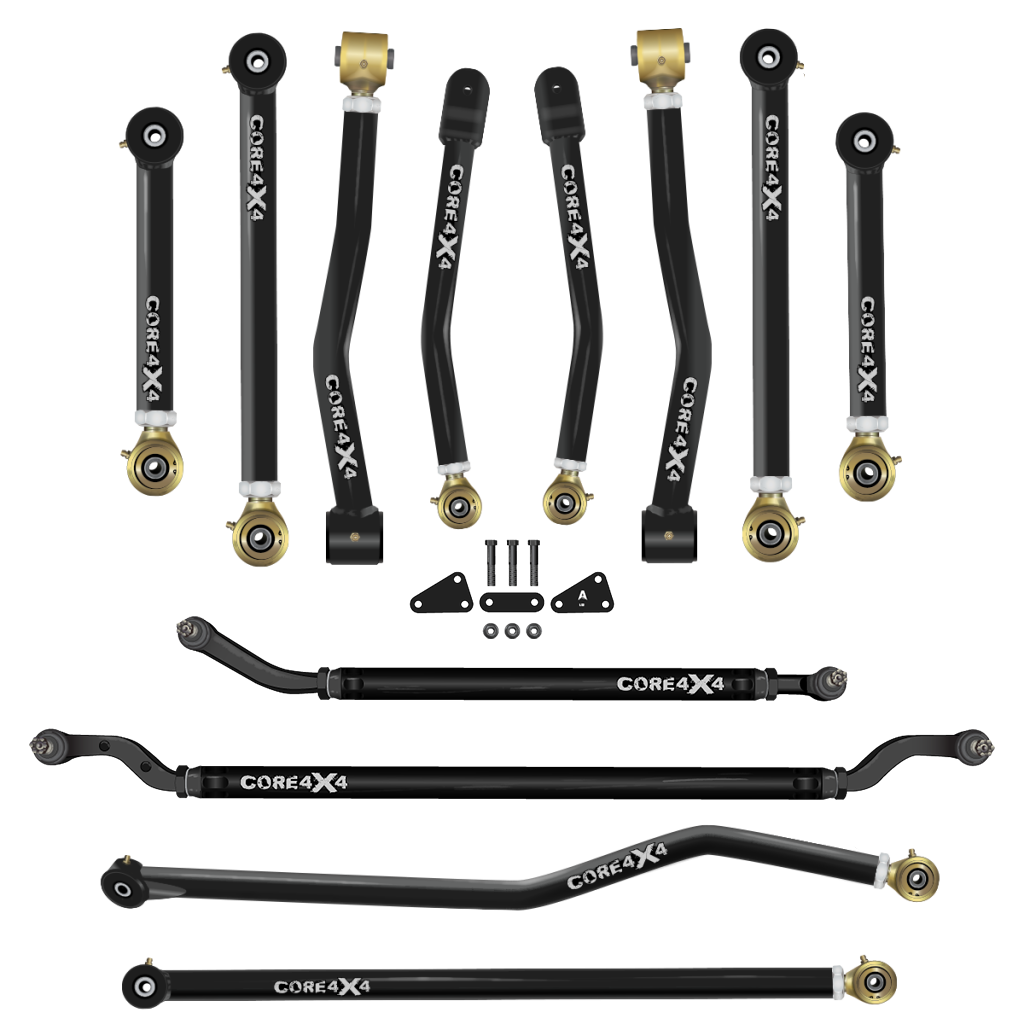

12pc Camp Series Adjustable Control Arm, Track Bar, Steering Kit

SKU: CMP-J-JT-K12
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,387.40 2387.4 USD $ 2,808.70

$ 2,808.70

(Save 15%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Rear Track Bar Clearance Bend For Spare Tire
    Choose clearance bend if your spare tire interferes with a straight rear track bar.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships by Mon, Jun 1
Salt Lake City, UT change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Free mounting hardware included — a $100 value

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Ultimate Suspension and Steering Upgrade

The Camp Series 12-Piece Kit is the ultimate suspension and steering upgrade for the Jeep Gladiator JT (2020-Present). This comprehensive kit replaces every major suspension and steering component, giving you full control over axle alignment, caster correction, pinion angle, and steering precision. Whether you're tackling rugged trails or maintaining highway stability, this kit eliminates death wobble, improves steering response, and enhances overall drivability, ensuring a smooth, predictable, and controlled ride in all conditions.

Key Features and Benefits

  • Complete suspension steering overhaul – Provides total control over axle positioning, caster correction, pinion angle, and steering geometry for superior performance on and off-road.
  • Eliminates death wobble improves handling – Adjustable track bars, control arms, and the 2.5-ton aluminum steering kit keep axles centered, minimize steering instability, and ensure a smoother, more predictable driving experience.
  • Heavy-duty steering system – The 2.5-ton aluminum steering kit increases strength and control, significantly improving steering precision and stability on tough trails and high-speed roads.
  • Optimized for lifted vehicles – Fully adjustable to accommodate suspension lifts from 0 to 6 inches, allowing precise alignment correction and axle centering at any ride height.

Solve Factory Caster Issues

Proper caster correction improves steering feel, high-speed stability, and overall handling, ensuring your Jeep tracks straight and drives smoothly.

Recommended Pairing

To further refine handling and stability, pair this kit with the Camp Series Sway Bar End Link Set (CMP-J-JT-ELS4) for a complete performance upgrade.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Simple Installation

Designed for easy bolt-on installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or stubborn bolts.

Notes: Some, (not all) factory axle mounts need to be "clearanced" to accept our larger bar. If needed, it is only a minor amount of trimming to be done. This applies to the front track bar only. Please see our Youtube channel for a video addressing this.


  • Vehicle Fitment: Jeep Gladiator JT 20+ – A complete suspension and steering upgrade engineered for enhanced stability, handling, and drivability.

  • CORE Advantage: Eliminates death wobble, improves steering response, and provides full control over axle alignment, caster correction, and pinion angle.

  • Adjustability: Adjustable from 0 to 6 inches of lift, allowing precise alignment corrections, axle centering, and optimized suspension geometry.

  • Construction: Heavy-duty 1.75” OD 5/16” wall DOM tubing for lower arms, 1.5” OD 5/16” wall DOM tubing for upper arms, and a 2.5-ton aluminum steering kit for maximum durability and performance.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar Built With 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Make Model Submodel Years
Jeep Gladiator 2020 - Present

Construction & Materials

Jeep Gladiator JT 20+ 2pc Camp Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Camp Series Rear Upper Adjustable Control Arms

Rear Upper control arms built with 1.75” OD 5/16” Wall DOM. Polyurethane Bushing one the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Gladiator JT 20+ 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Gladiator JT 20+ Camp Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Gladiator JT 20+ Camp Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Gladiator JT (20–Present)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Camp Series
Lift Size 0" — 6" or 6"+
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Rear Track Bar Clearance Bend For Spare Tire Straight Bar or Clearance Bend
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.

Google

Reviews of Core 4x4

See all on Google
5.0
★ ★ ★ ★ ★
132 reviews
5 ★
97%
4 ★
2%
3 ★
0%
2 ★
1%
1 ★
0%
JI
Jerome Segura III Jun 26, 2025
★ ★ ★ ★ ★ Google
I bought the 16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit to replace a worn budget 4" lift on my used JKU. These are top quality parts; very solid. Customer service is unsurpassed. They even matched prices on my order placed before the tax day sale. I made an error in ordering a drag link flip kit; they were quick to help me fix this too. There's peace of mind knowing these components are made in the USA. Thank you. 👍👍
Review photo 1 Review photo 2
TM
T Mac Mar 23, 2026
★ ★ ★ ★ ★ Google
CORE 4X4 Company produces/manufactures exceptional products. My rear upper and lower control arms and rear track bar were powder coated custom Fox “Shock Orange” for my 2024 Bronco Wildtrak. OEM looks minimal compared to the CORE 4X4 control arms. Plus they’re adjustable, serviceable and rebuildable. Shipment was very fast and packaging used custom foam wrapped around the arms and heavy duty boxes. Not even UPS could damage. Korby L. was great to work with and responded quickly with emails and product information. Great products. Great people from the State of Utah. All Made in the USA. 5 Stars!!!
HK
Harold Kruder Mar 23, 2024
★ ★ ★ ★ ★ Google
I needed some parts and had to replace 1 lower control arm and their customer service is great. Helped with answering my questions and got parts shipped quickly.
JW
Jonathan Word Aug 25, 2025
★ ★ ★ ★ ★ Google
Beefy parts made and painted well, very fair pricing for what you get, and fantastic customer service to boot. Easily my favorite place to get suspension parts.
SC
Singer Heating and Cooling Mar 25, 2018
★ ★ ★ ★ ★ Google
These guys are great. You can get them on the phone for support. This important and is not always the case with other custom parts builders. Their control arms are bomb proof and offer plenty of options. You can get real genuine Currie Johnny joints without paying the price for Currie arms.
LS
Leonard Smith Jan 22, 2026
★ ★ ★ ★ ★ Google
I don’t write reviews often, but Core 4x4 absolutely earned this one. I recently ordered leaf spring mounts and realized after the fact that I messed up my order. Totally my mistake. Instead of giving me the runaround or pointing at a return policy, Core 4x4 emailed me back and forth, worked through exactly what I was doing with my build, and made sure I ended up with the correct parts. That kind of customer service is rare these days — especially in the off-road world where a lot of companies stop caring once the order is placed. The parts themselves are exactly what you hope for: solid, well-made, confidence-inspiring hardware that looks like it belongs under a vehicle that actually gets used. You can tell these are designed by people who understand suspension geometry and real-world abuse, not just CAD screenshots. Mistakes happen — especially on custom or modified builds — and Core 4x4 handled mine like pros. Fast responses, clear communication, and a genuine effort to help me get it right. If you’re on the fence: don’t be. Core 4x4 is the kind of company you want backing your build — the kind that treats customers like fellow enthusiasts, not order numbers.
BM
Brantly Musgrave Jan 22, 2026
★ ★ ★ ★ ★ Google
First and foremost would like to say that Core4x4s customer service is top notch and they definitely stand behind their warranty on products! Highly recommend using them for any of your off road needs! It’s rare to find a company now a days that backs their products and they do! Had a few issues with mounts and control arms and they handled it without hesitation! Thank you!
JM
Jay Miller Jul 26, 2025
★ ★ ★ ★ ★ Google
I purchased a upper and lower set of control arms from core 4x4 they came early then expected and seem to be very nice quality I ran into a complication installing them and emailed them my question I was expecting to get the response maybe the next day because it was after hours I got a response in about a few minutes which allowed me to finish the project that day I super appreciate that, the products are good strong lifetime warranty and their customer service is top notch
MS
Mr. Smith Nov 23, 2025
★ ★ ★ ★ ★ Google
Have yet to get to try them but I bought some upper, and then later , lower control arms for my 03 rubicon. The pricing is very fair, so fair I was hesitant to even purchase. When the product came in I was happily mistaken. These are some beefy units with an incredible warranty! I’m very excited! I went with the “Camp”series as I mostly daily it. I have trouble with the shipping at times when I ordered but Corby is quick to notice things and help communicate the solution. Looking forward to buying more parts!
Review photo 1
JS
Jeffrey Shafer Jan 22, 2026
★ ★ ★ ★ ★ Google
Exceptional customer service. All my questions were asked in a timely manner and parts were replaced when an error occured. I encourage people to make purchases due to their exceptional quality products, but also because of their customer service. Will make additional purchases in the future.

Specifications

Color Black, Blue, Charcoal, Green, LightGreen, Orange, Purple, Red, White, Yellow, Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Lift Size 0" — 6", 6"+
Hardware No Hardware, Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle), Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Rear Track Bar Clearance Bend For Spare Tire Straight Bar, Clearance Bend
Stabilizer Clamp Standard Clamp, Hydraulic Assist Clamp
Vehicle Jeep Gladiator JT (20–Present)
Brand CORE 4X4
Series Camp Series
Note to Core4x4: -
