This kit includes 7 components, each built and powder-coated in-house.
Jeep Wrangler JL / JLU 18+ 2pc Camp Series Front Lower Adjustable Control Arms
View Component →
Jeep Wrangler JL / JLU 18+ 2pc Camp Series Front Upper Adjustable Control Arms
View Component →
Jeep Wrangler JL / JLU 18+ 2pc Camp Series Rear Lower Adjustable Control Arms
View Component →
Jeep Wrangler JL / JLU 18+ 2pc Camp Series Rear Upper Adjustable Control Arms
View Component →
Jeep Wrangler JL / JLU 18+ 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit
View Component →
Jeep Wrangler JL / JLU 18+ Camp Series Front Heavy-Duty Adjustable Track Bar
View Component →
Jeep Wrangler JL / JLU 18+ Camp Series Rear Heavy-Duty Adjustable Track Bar
View Component →The Ultimate Suspension and Steering Solution

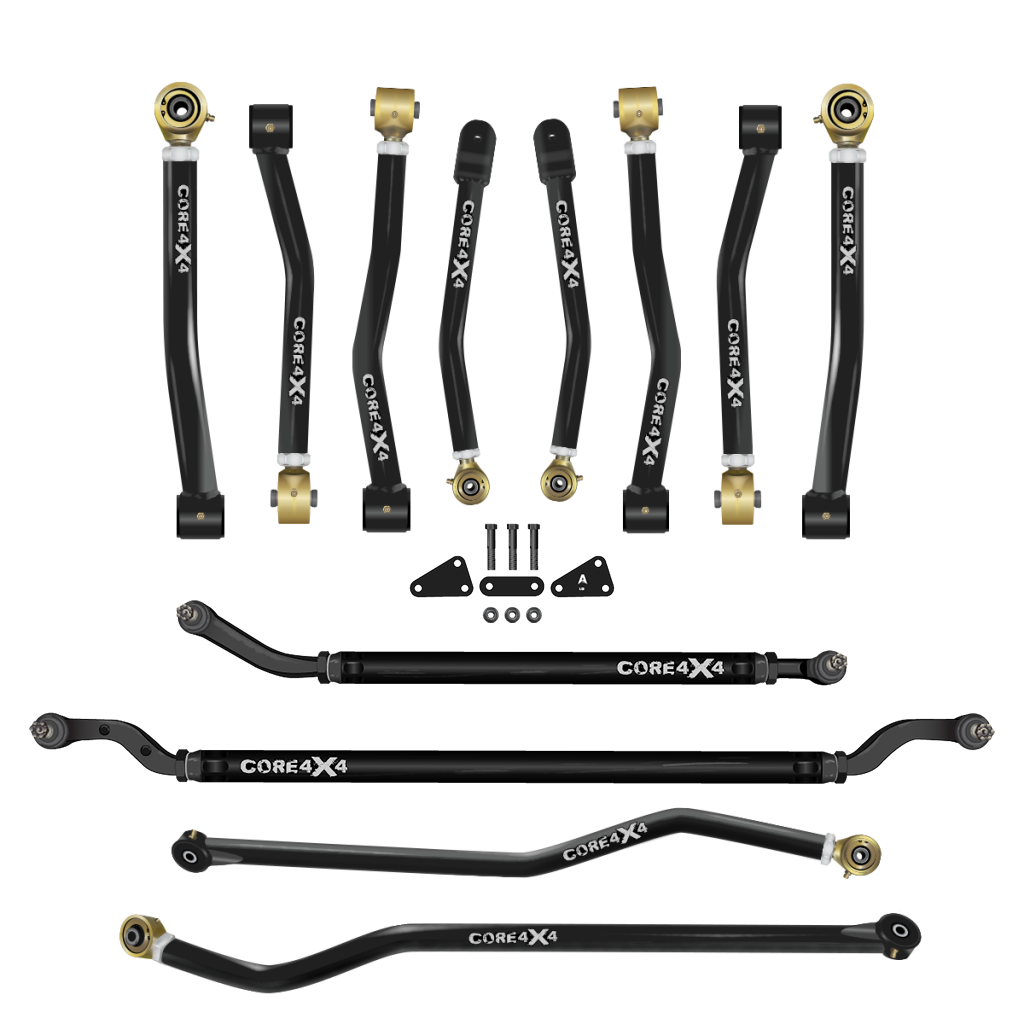

Take full control of your Jeep Wrangler JL (2018-Present) with the Camp Series 12-Piece Kit, a comprehensive suspension and steering upgrade engineered for on-road precision and off-road durability. By replacing your factory components with this fully adjustable system, you’ll experience enhanced stability, precise axle alignment, and improved steering response, making it the perfect solution for lifted vehicles.
Key Features and Benefits
- Complete suspension steering upgrade – Includes 8 control arms, 2 track bars, and a 2.5-ton aluminum steering kit for total control over suspension geometry, axle alignment, and steering response.
- Heavy-duty DOM tubing construction – Lower control arms built from 1.75” OD DOM tubing, upper control arms from 1.5” OD DOM tubing, all with 5/16” wall thickness for maximum strength and durability.
- Precision steering system – 2.5-ton aluminum steering kit enhances responsiveness, reduces play, and improves handling in both on-road and off-road conditions.
- Optimized suspension geometry – Fully adjustable control arms allow pinion angle corrections, caster adjustments, and axle re-centering, designed for lifts from 0 to 6 inches.
Heavy-Duty Adjustable Track Bars
Front and rear track bars work in tandem to keep axles centered, reducing bump steer and body roll while improving overall drivability and ride quality.
Recommended Pairing
For maximum suspension and handling performance, pair this kit with the Camp Series Front Sway Bar End Links (CMP-J-JL-FEL2) and Rear Sway Bar End Links (CMP-J-JL-REL2).
Unmatched Suspension and Steering Control
This 12-piece kit ensures your Jeep stays properly aligned, handles predictably, and delivers precision control. Whether tackling rocky terrain, high-speed desert runs, or daily commutes, this kit prevents wandering, reduces bump steer, and enhances steering feel, making it an essential upgrade for lifted Jeeps.
Durable Two-Stage Powder Coating
Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.
Optional Hardware Upgrade
Designed for easy installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or worn-out bolts.
Notes: Some, (not all) factory axle mounts need to be "clearanced" to accept our larger bar. If needed, it is only a minor amount of trimming to be done. This applies to the front track bar only. Please see our Youtube channel for a video addressing this.
Vehicle Fitment: Jeep Wrangler JL 18+ – Precision-engineered for all trims to optimize suspension alignment, handling, and steering performance.
CORE Advantage: A complete 12-piece upgrade replacing all control arms, track bars, and steering components, delivering unmatched stability and control.
Adjustability: Fully adjustable to accommodate 0–6” lifts, ensuring precise pinion angle correction, caster alignment, axle centering, and optimized steering geometry.
Construction: Built from heavy-duty .313-wall DOM tubing with Johnny Joints at the adjustable ends, polyurethane bushings at the axle ends, and a 2.5-ton aluminum steering kit for enhanced durability and responsiveness.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2018 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Front Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.
Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Camp Series |
| Lift Size | 0" — 6" or 6"+ |
| Hardware | No Hardware or Complete Kit |
| Drag Link Orientation | Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle) |
| Stabilizer Clamp | Standard Clamp or Hydraulic Assist Clamp |
| Placement on Vehicle | Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear |
| Mounting Style | Bolt-On |
