16pc Camp Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CMP-J-JK-K16 ★★★★★ (132 reviews)
Pick your vehicle to confirm fit

$ 2,477.96 2477.96 USD $ 3,097.45

$ 3,097.45

(Save 20%)

See financing options →

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline
Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install
COLOR 11 colors — pick yours
https://core4x4.com/web/image/product.template/1631/image_1920?unique=edc8f61

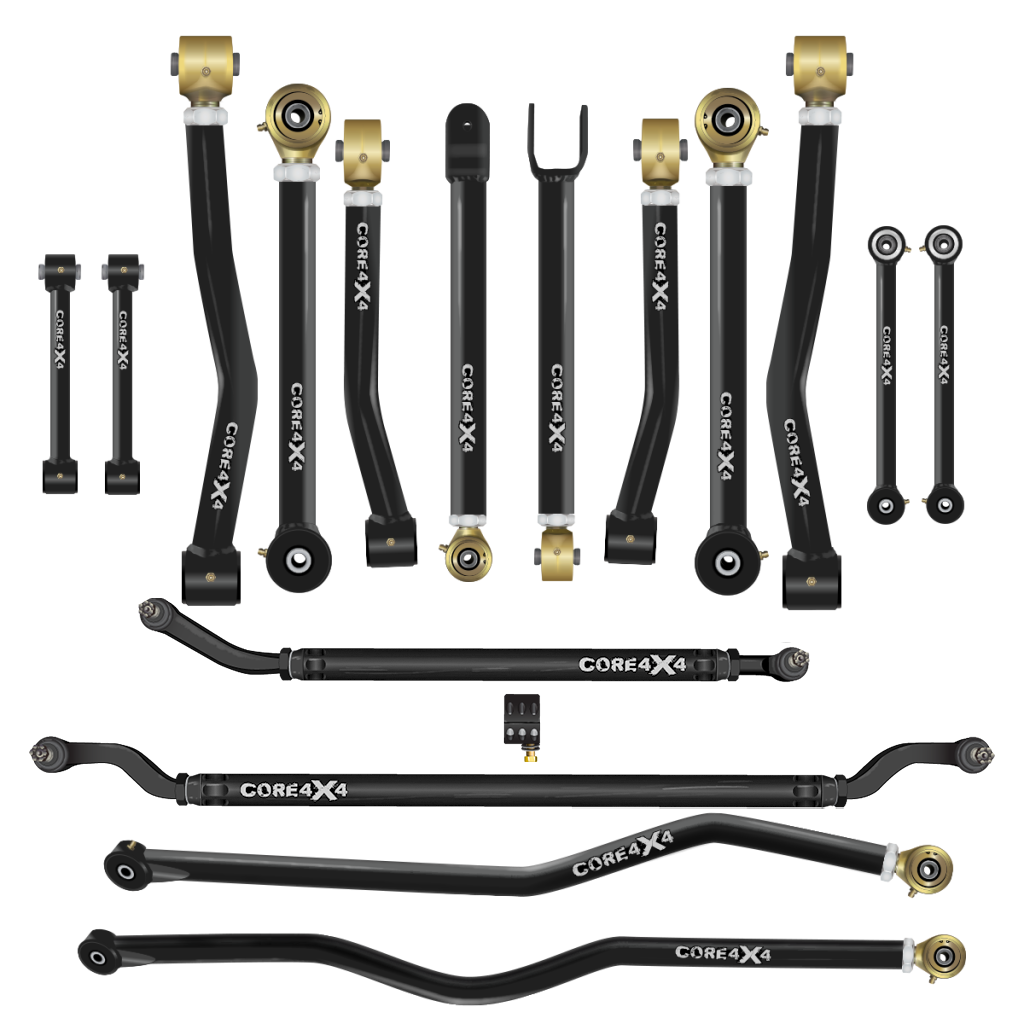

16pc Camp Series Adjustable Control Arm, Track Bar, Steering, End Link Kit

SKU: CMP-J-JK-K16
Pick your vehicle to confirm fit
Google 5.0 ★★★★★ (132 reviews)

$ 2,477.96 2477.96 USD $ 3,097.45

$ 3,097.45

(Save 20%)

COLOR 11 colors
Black Blue Charcoal Green LightGreen Orange Purple Red White Yellow Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Compare all tiers →

Build Your Kit

  • Vehicle
    Confirm this matches your vehicle. Use Shop by Vehicle to filter correctly.
  • Brand
  • Color
    Powder coat color for control arms and track bars. Does not affect performance.
  • Series
    Cruise: daily driving and light off-road. Camp: overlanding. Crawl: aggressive rock crawling.
  • Lift Size
    Choose your current front lift height. Measure from center of wheel to fender if unsure.
  • Hardware
    Choose upgraded hardware if your factory hardware is worn, damaged, or missing.
  • Drag Link Orientation
    Select flipped drag link only if your steering has already been converted to over-the-knuckle.
  • Stabilizer Clamp
    Match your steering stabilizer mounting style. Standard clamp, hydraulic assist, or tie rod clamp.
  • Note to Core4x4:

Select Color to see price and add to cart.

Order today — ships within 1–3 business days
Enter ZIP for arrival estimate change
Order by 3:00 PM MT today — we'll start tomorrow
See full timeline

Alignment recommended Lifetime warranty on all non-wear items Made In USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Ultimate All-Inclusive Suspension and Steering Solution

Take your Jeep Wrangler JK (2007-2018) to the next level with the Camp Series Ultimate Control, Steering, and Sway Bar End Links Kit, the most comprehensive upgrade for your suspension and steering system. Designed for those who demand precision, strength, and control, this all-in-one kit replaces every major suspension and steering component, ensuring superior handling, stability, and off-road articulation.

When combined with your choice of springs and shocks, this kit becomes an all-inclusive lift solution, delivering unparalleled performance that outperforms anything else on the market. Whether you’re tackling rocky trails, deep mud, or city streets, this system provides the perfect balance of durability, flexibility, and adjustability.

Key Features and Benefits

  • All-inclusive suspension, steering, and sway stability solution – Replaces all critical suspension and steering components, ensuring unmatched handling, alignment correction, and overall drivability.
  • Premium DOM tubing construction – Built from 1.75” OD DOM tubing for the lower arms and 1.5” OD DOM tubing for the upper arms, each featuring a .313" wall thickness for exceptional durability.
  • Precision suspension geometry correction – Fully adjustable control arms and track bars correct caster angles, eliminate wandering or following road ruts, and ensure axle centering after lifting your Jeep.
  • Heavy-duty steering system – The 2.5-ton aluminum steering kit significantly improves steering response, eliminates play in the linkage, and reduces bump steer, offering better control on and off the road.
  • Sway bar end links for stability – Front and rear sway bar end links reduce body roll during cornering and improve weight distribution, further enhancing handling and ride comfort.

Customizable Lift Compatibility

Fully adjustable to accommodate suspension lifts from 0 to 6 inches, ensuring perfect alignment and axle positioning. For extreme lifts beyond 6 inches, contact us for custom solutions.

Transforms Into a Complete Lift Kit

Simply combine with your own shocks and springs, and this system becomes an all-inclusive lift kit that surpasses anything else on the market in strength, flexibility, and ride quality.

Total Suspension and Steering Control

Upgrading your Jeep’s suspension without correcting caster angles, steering geometry, and axle alignment can lead to poor handling, uneven tire wear, and steering instability. This fully adjustable kit allows you to fine-tune your suspension setup, ensuring your Jeep drives smoothly, tracks straight, and stays controlled in any terrain.

Whether you're navigating tight trails, crawling over rocks, or cruising the highway, this system guarantees maximum durability, articulation, and steering precision.

Durable Two-Stage Powder Coating

Each component undergoes a zinc primer base coat for corrosion resistance, followed by a top coat available in 10 colors for a personalized look.

Optional Hardware Upgrade

Designed for straightforward installation using factory hardware, with optional Grade 8 hardware kits available separately for rusted or worn-out bolts.


  • Vehicle Fitment: Jeep Wrangler JK 07-18 – Precision-engineered for all trims to enhance suspension control, handling, and off-road capability.

  • CORE Advantage: The most complete suspension and steering upgrade, replacing all control arms, track bars, sway bar end links, and steering components for unmatched stability and handling.

  • Adjustability: Fully adjustable to accommodate 0–6” lifts, ensuring precise caster correction, axle centering, and optimized suspension geometry.

  • Construction: Built from heavy-duty .313-wall DOM tubing with Johnny Joints for articulation, polyurethane bushings for vibration control, and a 2.5-ton aluminum steering kit for precision handling.

  • Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.

  • Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.

Built With

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Front Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Make Model Submodel Years
Jeep Wrangler 2007 - 2018

Construction & Materials

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Fixed Length End Links

Front Links Built With .75” Cold Rolled Steel.

Welded Johnny Joints Built With one fixed end and a Polyurethane Bushing on the other fixed end.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Lower Adjustable Control Arms

Front Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Front Upper Adjustable Control Arms

Front Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded u-bracket on the welded end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Fixed Length End Links

Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Lower Adjustable Control Arms

Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Camp Series Rear Upper Adjustable Control Arms

Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 2pc Heavy-Duty Tie Rod, Drag Link Steering Kit

Tie Rod and Drag Link made from 2" 7075 Aluminum. Tie Rod and Drag Link use Apex Chassis Forged Rod Ends.

Jeep Wrangler JK / JKU 07-18 Camp Series Front Heavy-Duty Adjustable Track Bar

Front Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Jeep Wrangler JK / JKU 07-18 Camp Series Rear Heavy-Duty Adjustable Track Bar

Rear Track Bar built with 1.5” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.

Vehicle Jeep Wrangler JK / JKU (07–18)
Brand CORE 4X4
Color Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed.
Series Camp Series
Lift Size Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Hardware No Hardware or Complete Kit
Drag Link Orientation Factory Mounting (under the knuckle) or Drag Link Flip w/ Tapered Sleeve And Drill Bit (over the knuckle)
Stabilizer Clamp Standard Clamp or Hydraulic Assist Clamp
Placement on Vehicle Front Upper, Front Lower, Rear Upper, Rear Lower, Front, Rear
Mounting Style Bolt-On
