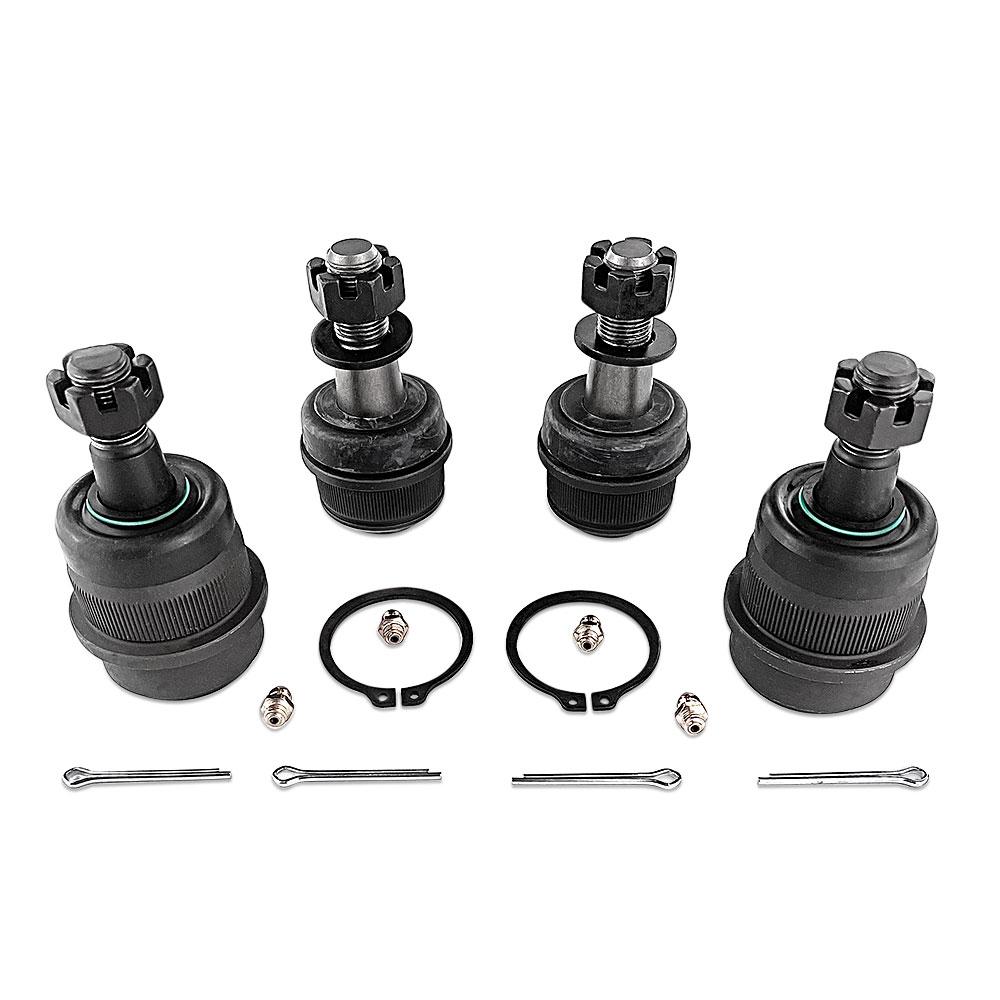

Apex Chassis Jeep Wrangler JK & Grand Cherokee HD Ball Joint Kit Includes: 2 Upper & 2 Lower
Pick your vehicle to confirm fit

240.00 240.0 USD 240.00

240.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/22288/image_1920?unique=09d00f0

Apex Chassis Jeep Wrangler JK & Grand Cherokee HD Ball Joint Kit Includes: 2 Upper & 2 Lower

Apex Chassis Jeep Wrangler JK & Grand Cherokee HD Ball Joint Kit Includes: 2 Upper & 2 Lower
SKU: KIT102
Pick your vehicle to confirm fit

240.00 240.0 USD 240.00

240.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Special Sauce:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • UPPER: Plunger Design Stud:Unique to Jeep and allows up and down movement with no side-to-side movement.
  • LOWER: Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • UPPER: Dual Carbon Bearing Design: Used mainly in Jeep and Dodge upper ball joints is the solver of all things wobbly. Like all our products.
  • LOWER: Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), can be polished smooth as steel, is anti-friction, doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Pancake Boot

FINISH

  • E-Coating: Extremely durable electrochemical finishing process

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

  • Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings: Included for every application.

SPECIAL FEATURES

  • Custom Features: UPPER: Custom Bearing design to eliminate Death Wobble.
  • Custom Features: LOWER: Angled Zerk housing for easier servicing.

Where It Fits:

Vehicle Position: Front Upper, Front Lower

Quantity per Vehicle: 1

Moog Interchange: K3134T & K3185


Make Model Submodel Years
Jeep Grand Cherokee 1999 - 2004
Jeep Wrangler 2007 - 2018
