This kit includes 2 components, each built and powder-coated in-house.
Unmatched Rear Suspension Control

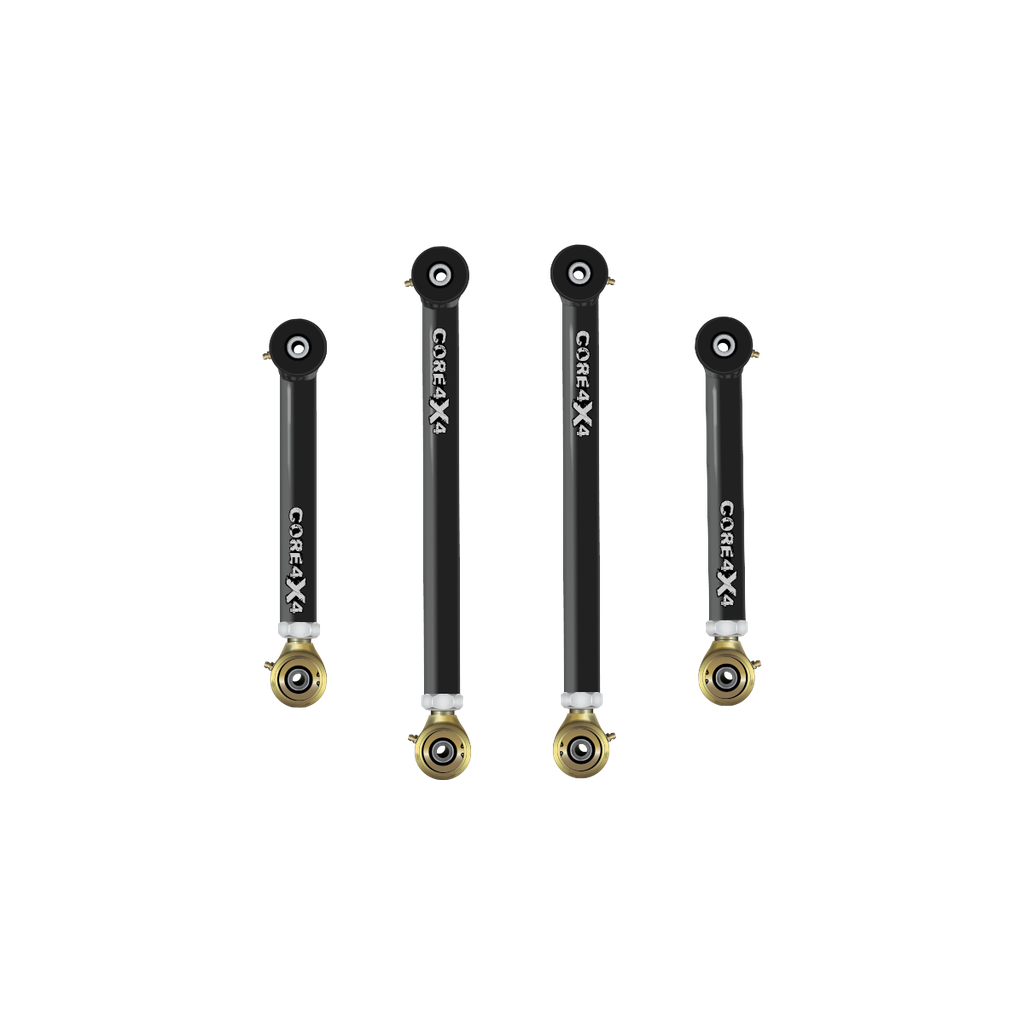

Upgrade your Ram 1500 (2009–Present) with the Trail Series Adjustable Rear Control Arm Set, engineered to eliminate wheel hop, enhance traction, and provide precise axle alignment. Designed for daily drivers, off-road enthusiasts, and towing applications, this set ensures your rear suspension operates at peak performance, no matter the terrain.
Key Features Benefits
- Heavy-duty DOM tubing construction – Built from 1.75" OD, .313" wall DOM tubing for maximum strength and durability.
- Polyurethane Johnny Joint combo – Features high-grade polyurethane bushings at the fixed ends for reduced NVH (Noise, Vibration, and Harshness) and RockJock Johnny Joints at the adjustable ends for maximum articulation and flexibility.
- Full adjustability for optimal suspension control – Designed to fine-tune rear axle positioning for pinion angle correction, improved traction, and a smoother ride.
- Recommended pairing – For total rear-end stability and complete axle alignment, pair with the Trail Series Adjustable Rear Panhard Track Bar (TRL-R-15-2009-RPTB1) to ensure precise suspension geometry and eliminate lateral axle shift.
Eliminate Wheel Hop Maintain Axle Stability
Factory control arms allow unwanted axle movement, leading to wheel hop, traction loss, and uneven tire wear. By replacing them with fully adjustable upper and lower control arms, you gain control over axle positioning, ensuring power is transferred efficiently to the ground. Pairing these arms with an adjustable track bar optimizes suspension geometry, creating a balanced, high-performance rear end.
Highly Durable Two-Stage Powder Coating
All components undergo a two-stage powder coating process for maximum durability and corrosion resistance. The zinc primer base coat provides superior rust protection, while the durable topcoat is available in 10 color options for a customized look.
Optional Hardware Upgrade
This control arm set is designed for installation using factory hardware, but for enhanced durability and a more secure installation, we offer an optional Grade 8 hardware kit (sold separately).
Proudly Made in the USA
Manufactured in Orem, UT, every CORE 4X4 component meets strict quality control standards for precision, strength, and long-term durability.
Final Thoughts
The Trail Series Adjustable Rear Control Arm Set is a must-have upgrade for Ram 1500 owners looking for improved suspension performance, better handling, and enhanced stability. By combining adjustable control arms with an adjustable track bar, you gain complete control over axle positioning, ensuring your truck stays planted in all driving conditions. Upgrade today and experience the difference in traction, handling, and suspension control!
Vehicle Fitment: Designed for Ram 1500 09+, this rear control arm set enhances traction, eliminates wheel hop, and ensures precise axle alignment for daily driving, towing, and off-road use.
CORE Advantage: Provides full suspension control with adjustable upper and lower arms, optimizing pinion angle, reducing NVH, and improving overall stability with a combination of polyurethane bushings and Johnny Joints.
Adjustability: Adjustable for proper axle alignment and suspension geometry, supporting up to a 6-inch lift or 6-inch drop for improved handling and stability.
Construction: Built from 1.75” OD 5/16” wall DOM tubing with Rock Jock Johnny Joints at the adjustable ends and polyurethane bushings at the fixed ends, ensuring durability, articulation, and long-lasting performance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 1500 | 2009 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. A Polyurethane Bushing on the fixed end and a Forged Johnny Joint on the adjustable end with 1.25” x 12 TPI - 2.625” long threads.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ or -6" — -1" |
| Factory Air Ride | No or Yes |
| Brake Cable Attachment Point | No or Yes |
| Series | Trail Series |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
