Heavy-Duty Performance for Towing Hauling
Maximize the strength and durability of your Dodge Ram 2500 (2010–2013) with the Tow Series Adjustable Front Upper Control Arms. Specifically engineered for heavy-duty applications like towing and hauling, these control arms provide exceptional stability, strength, and adjustability for the toughest driving conditions. Whether you're tackling rough job sites or hauling heavy loads, these control arms are built to handle it all.
What’s Included

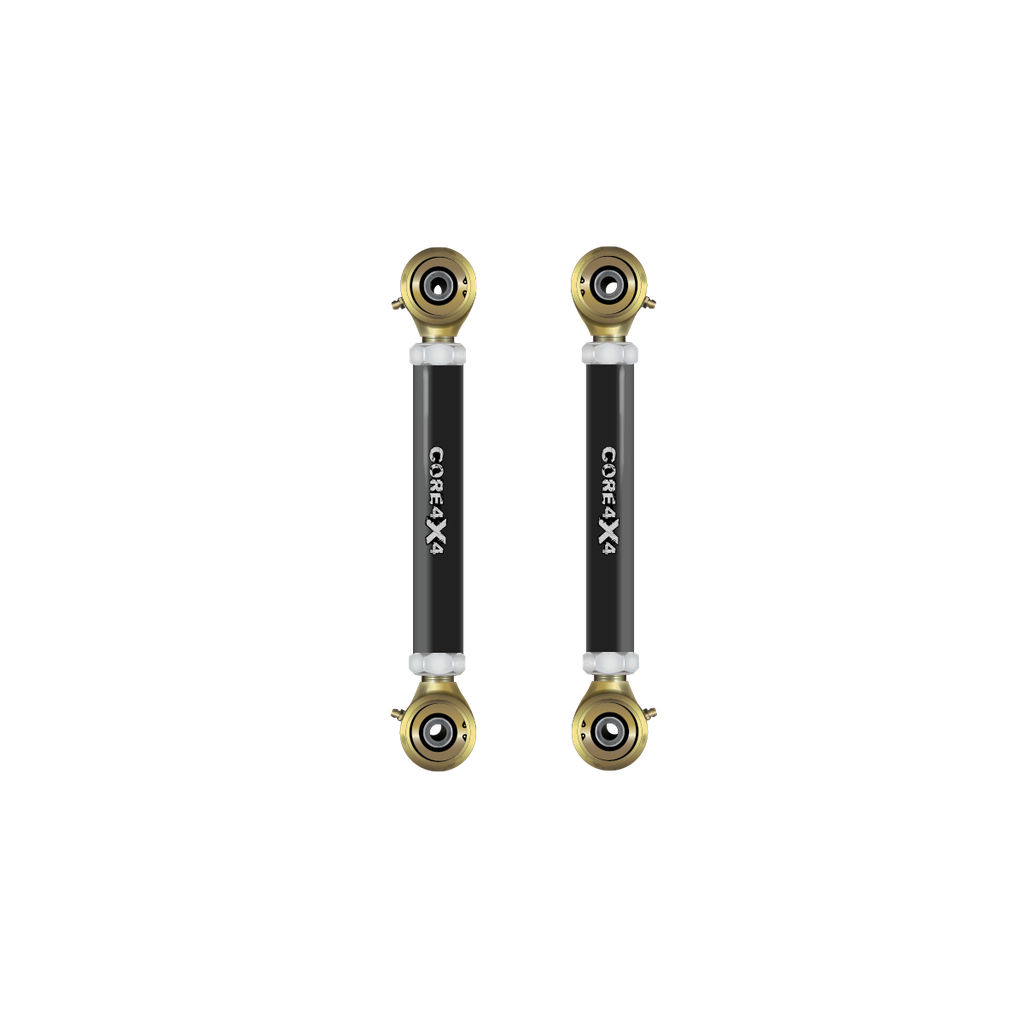

- Tow Series Adjustable Front Upper Control Arms (TOW-D-25-2010-FU2)
Key Features Benefits
- Heavy-duty DOM tubing construction – Built from 1.75” OD DOM Tubing with a 5/16” wall thickness, these control arms offer unmatched strength and durability for high-load applications.
- Rock Jock 4x4 Johnny Joints at both ends – Features fully greaseable and rebuildable joints, delivering increased articulation, long-term reliability, and reduced wear on suspension components.
- Effortless adjustability for precision alignment – Designed to correct wheel centering and caster for lifts from 0 to 6 inches. Threaded with left- and right-hand threads, allowing on-the-truck adjustments without removal. When paired with Tow Series Adjustable Lower Control Arms, these provide full suspension control and optimization. For lifts beyond 6 inches, contact us for additional options.
- Recommended pairing – Optimize your suspension setup by adding the Tow Series Adjustable Front Lower Control Arms (TOW-D-25-2010-FL2) for complete caster and wheel centering control.
Two-Stage Powder Coating for Maximum Protection
Each control arm undergoes a two-stage powder coating process for superior durability and corrosion resistance. A zinc primer base coat enhances rust protection, while the topcoat, available in 10 color options, provides an extra layer of resilience and customization.
Made in the USA
Proudly designed, engineered, and manufactured in Orem, UT, ensuring top-tier craftsmanship, strict quality control, and long-term reliability.
Optional Hardware Upgrade
Installs using factory hardware, but for a smoother installation and enhanced durability, we offer an optional Grade 8 hardware kit, available separately.
Conclusion
The Tow Series Adjustable Front Upper Control Arms (TOW-D-25-2010-FU2) are the ultimate upgrade for Ram 2500 owners looking for superior strength, adjustability, and long-term performance in heavy-hauling and towing applications. Upgrade today and take full control of your Ram 2500’s suspension for unmatched durability and stability!
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 2500 | 2010 - 2013 |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
| Vehicle | Ram HD 2500 (10–13) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ |
| Arm Bend | No Bend or Inward Bend |
| Hardware | No Hardware or Complete Kit |
| Series | Tow Series |
| Year Range | 10-13 |
See It Installed
Install videos and build guides on our YouTube channel.
Watch more installs on YouTube
