This kit includes 2 components, each built and powder-coated in-house.
Complete Control for Towing Hauling

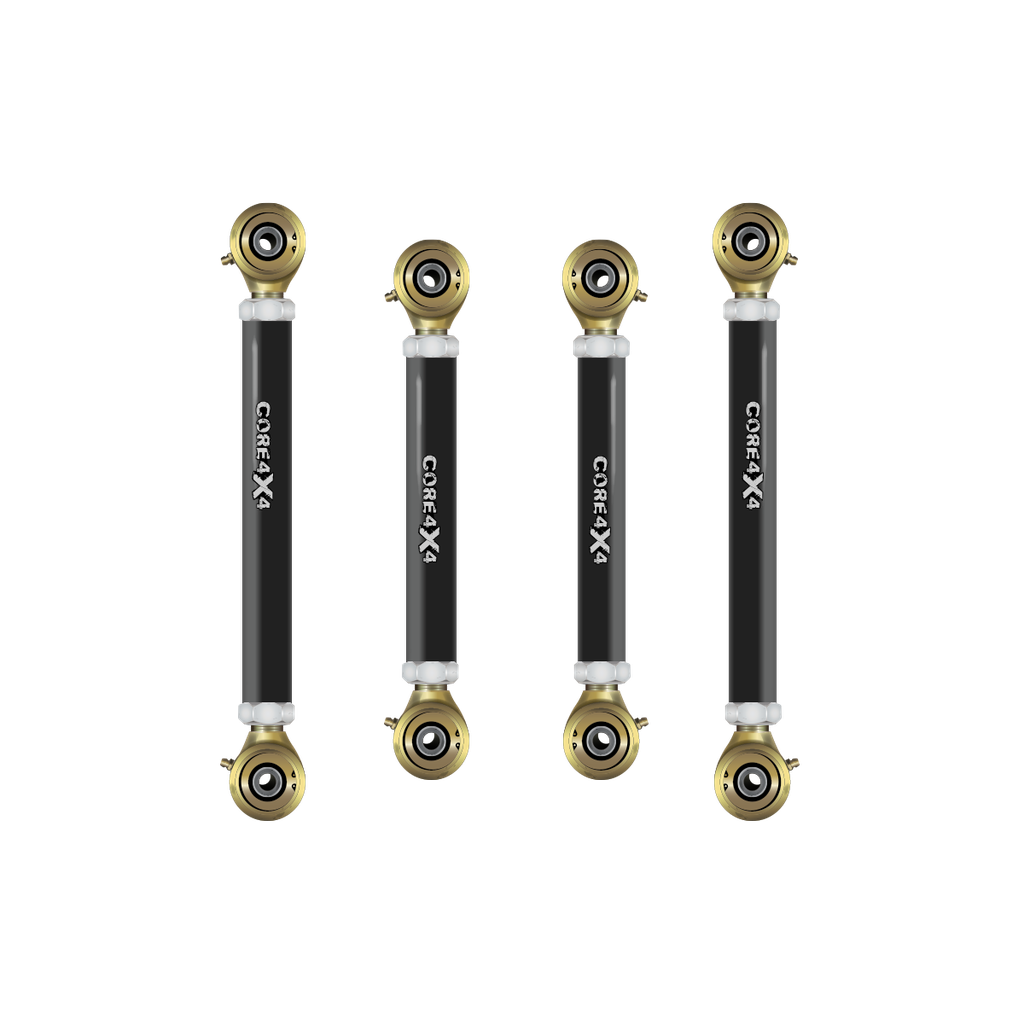

Take full control of your Dodge Ram 1500 (1994–1999) suspension with the Tow Series Adjustable Front Control Arm Set. Designed for heavy-duty towing, hauling, and off-road durability, this set includes both adjustable front upper and lower control arms to provide maximum strength, stability, and alignment control. Whether you’re towing heavy loads or upgrading your truck’s performance, these control arms offer unmatched adjustability to fine-tune your axle position, caster, and pinion angle for optimal handling and drivability.
Key Features Benefits
- Full Axle Alignment Control – Provides complete adjustability for axle positioning, pinion angle, and caster, ensuring proper suspension geometry and eliminating driveline vibrations.
- Heavy-Duty DOM Tubing – Built from 1.75” OD DOM Tubing with a 5/16” wall thickness, engineered for superior strength under heavy loads.
- Rock Jock 4x4 Johnny Joints – Equipped with fully greaseable and rebuildable joints, delivering maximum articulation and reduced suspension stress.
- Effortless Adjustability – Left- and right-hand threads allow on-the-truck fine-tuning, accommodating lifts from 0 to 6 inches without removal.
Optional Inward Bend for Increased Tire Clearance
For those running larger tires, we offer an optional inward bend design, recommended if your tires currently rub on your control arms. This modification improves turning radius and clearance, reducing tire interference during sharp turns and off-road articulation. If you're planning on upgrading to wider tires, this option provides added flexibility for future modifications.
Two-Stage Powder Coating for Maximum Protection
Each control arm undergoes a two-stage powder coating process for superior durability and corrosion resistance. A zinc primer base coat provides advanced rust protection, followed by a durable topcoat available in 10 color options to match your build.
Made in the USA
Proudly designed, engineered, and manufactured in Orem, UT, ensuring top-tier craftsmanship, strict quality control, and long-term reliability.
Optional Hardware Upgrade with Cam Bolt Delete Kit
This set installs using factory hardware, but for a smoother installation and enhanced durability, we offer an optional Grade 8 hardware kit with a cam bolt delete, available separately. This upgrade eliminates weak factory cam bolts, ensuring superior alignment retention and preventing unwanted shifting under heavy loads.
Conclusion
The Tow Series Adjustable Front Control Arm Set (TOW-D-15-1994-FS4) is the ultimate upgrade for Dodge Ram 1500 owners looking for maximum axle positioning control, superior adjustability, and long-term durability for towing and hauling applications. Upgrade today and experience enhanced control, stability, and clearance for larger tires in your Ram 1500!
Vehicle Fitment: Compatible with Dodge Ram 1500 94-99, this front control arm set enhances stability, caster correction, and axle positioning for heavy towing and hauling.
CORE Advantage: Eliminates steering instability, improves alignment, and reinforces suspension strength under extreme loads.
Adjustability: Fully adjustable for lifts up to 6", allowing precise caster correction, pinion angle adjustments, and axle centering to maintain proper suspension geometry and steering response.
Construction: Built from 5/16” wall 1.75” OD DOM tubing, these control arms feature Rock Jock Johnny Joints at both ends for maximum articulation, durability, and reduced suspension bind. Fully greaseable and rebuildable for long-term performance in extreme conditions.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Front Upper Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
Front Lower Control Arms Built With 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 1500 | 1994 - 1999 |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Front Lower control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Front Upper control arms built with 1.75” OD 5/16” Wall DOM. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 3.25” long threads.
| Vehicle | Ram 1500 (94–99) |
| Brand | CORE 4X4 |
| Series | Tow Series |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Lift Size | 0" — 6" or 6"+ |
| Arm Bend | No Bend or Inward Bend |
| Hardware | No Hardware or Complete Kit |
| Year Range | 94-99 |
| Placement on Vehicle | Front Upper, Front Lower, Front |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
