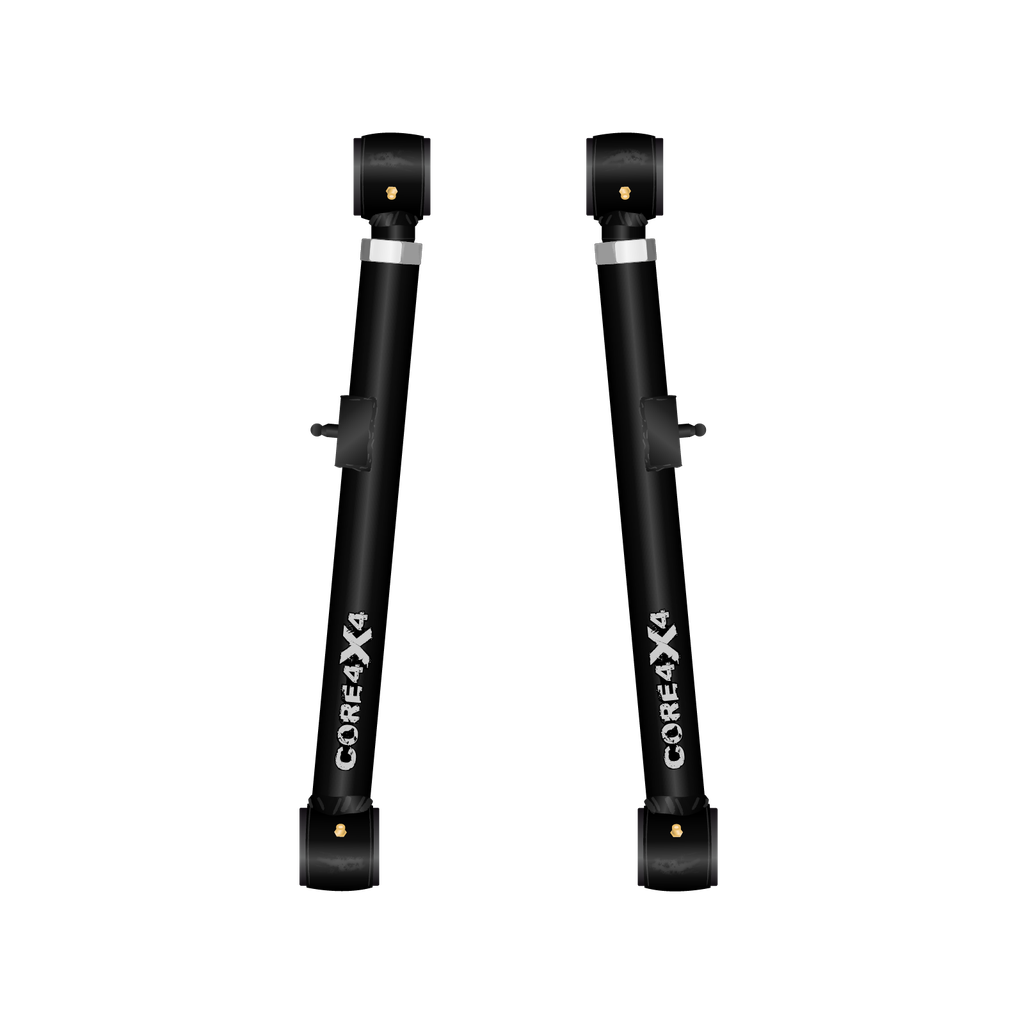

Core 4x4's Cruise Series rear upper control arms replace the worn factory stamped-steel arms on the GMC Yukon XL 1500 (2000–2006). The factory arms use soft rubber bushings and a fixed length, so there's no way to correct pinion angle after a lift or leveling kit. These Core 4x4 arms are a serious step up: heavier steel construction, fresh poly bushings, and adjustable length to set rear pinion angle back to spec.
They're also built to grow with your truck. When you want more articulation later, the adjustable end accepts the same forged Rock Jock Johnny Joint our Camp arms use, so you can upgrade in place without replacing the whole arm.
Includes: Rear upper control arms (pair); mounting hardware (bolts, nuts, and washers).
Specs:
- Tubing — 1.625 in. o.d. × 3/16 in. wall steel
- Bushings — poly, both ends
- Adjustable length — for pinion-angle correction
- Lift range — 0–6 in.
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Suspension Type — Standard or Autoride (Z55): Select at checkout. Z55 trucks have factory rear air leveling; the Autoride version includes the ride-height sensor mounting tab on both rear upper arms. If you're not sure which you have, check the RPO sticker in the glove box for a Z55 code.
Notes:
- Hardware is included with your arms. If you ever need replacements down the road, the matching kit is available separately.
- Future upgrade: each adjustable end accepts a forged Rock Jock Johnny Joint (CE-9112N-22) — two for the pair.
- Running a lift? The 4-piece rear set (CRS-G-800-YXL-RS4) adds the matching lower arms to replace all four rear arms in one job.
Parts:
- Poly bushings — BSH-UPBH-CB, 9/16-in. bolt (2 per arm, 4 for the pair).
- Replacement hardware kit — CRS-G-800-RU2-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
Tubing: 1.625" OD, 3/16" wall · Fixed end: Poly bushing · Adjustable end: Poly bushing
| Make | Model | Submodel | Years |
|---|---|---|---|
| GMC | Yukon XL 1500 | 2000 - 2006 |
Construction & Materials
Tubing: 1.625" OD, 3/16" wall · Fixed end: Poly bushing · Adjustable end: Poly bushing
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | 0" — 6" |
| Series | Cruise Series |
| Suspension Type | Standard or Autoride (Z55) |
