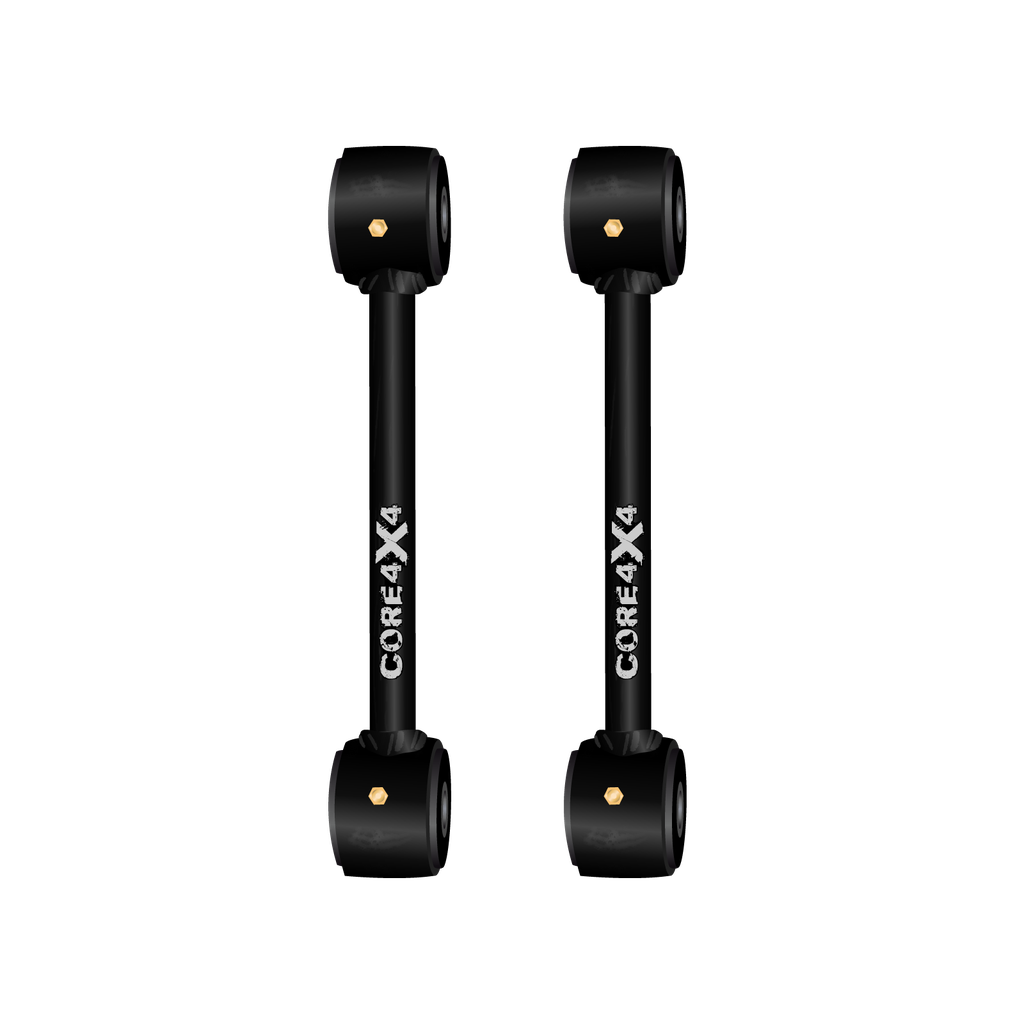

GMC Yukon XL 1500 00-06 Cruise Series Rear Sway Bar End Links

Name: GMC Yukon XL 1500 00-06 Cruise Series Rear Sway Bar End Links
Brand: CORE 4X4
SKU: CRS-G-800-YXL-REL2
Price: 112.22 USD
Availability: InStock

Shop

SKU: CRS-G-800-YXL-REL2 ★★★★★ (132 reviews)

$ 112.22 112.22 USD $ 136.45

$ 136.45

(Save 18%)

See financing options →

Order today — ships by Mon, Jun 1

Salt Lake City, UT change

Order by 3:00 PM MT today — we'll start tomorrow

See full timeline

Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install

GMC Yukon XL 1500 00-06 Cruise Series Rear Sway Bar End Links

GMC Yukon XL 1500 00-06 Cruise Series Rear Sway Bar End Links - gallery

COLOR 10 colors — pick yours

	Daily Confidence $112	Trail-Ready $185	Trail Domination $259
Articulation	30°	65°	95°
Joint Type	Flex Polyurethane	Forged Johnny Joint	Forged Johnny Joint
Tubing	1.875" OD lowers / 1.625" OD uppers · 3/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM
Maintenance	Periodic greasing	Periodic greasing	Periodic greasing
Warranty	Lifetime	Lifetime	Lifetime
	SELECT CRUISE →	SELECT CAMP →	SELECT CRAWL →

Made in USA Orem, Utah

Lifetime Guarantee Unconditional

10 Colors In-house powder coat

Fully Adjustable 0-6" of lift

3 X-Series Options Only Core 4x4

Details

Core 4x4's Cruise Series rear sway bar end links replace the worn factory links on the GMC Yukon XL 1500 (2000–2006). The factory links use soft rubber bushings and are sized for stock ride height, so after a lift they sit at the wrong length and the sway bar can't keep the body flat the way it should. These Core 4x4 end links are a serious step up: 0.75 in. solid cold-rolled steel, fresh poly bushings at both ends, and built to the exact length for your lift — or stock height — so the sway bar does its job again.

Includes: Rear sway bar end links (pair); mounting hardware (bolts, nuts, and washers).

Specs:

Material — 0.75 in. solid cold-rolled steel
Ends — poly bushings, both ends
Built to length — for your selected lift size (stock–6 in., or custom), non-adjustable
Made in the USA
Lifetime warranty — bend it or break it, we'll replace it
Wear items (bushings, joints) — covered for 18 months

Notes:

Core 4x4 end links use a thru-bolt design that won't work with factory stud-and-nut hardware, so the install hardware — bolts, nuts, and washers — always ships in the box. If you ever need replacements down the road, the matching kit is available separately.
Doing a lift? The 7-piece full rear kit (CRS-G-800-YXL-RK7) does the entire rear suspension in one order.

Parts:

Poly bushings — BSH-TBBH-CB, 12mm bolt (2 per link, 4 for the pair).
Replacement hardware kit — CRS-G-800-REL2-HWK.

Fits:

Chevy Tahoe (2000–2006)
Chevy Suburban 1500 (2000–2006)
Chevy Avalanche 1500 (2002–2006)
GMC Yukon / Yukon XL 1500 (2000–2006)
GMC Yukon Denali / XL Denali (2001–2006)
Cadillac Escalade / ESV / EXT (2002–2006)
1500-series only. Does NOT fit 2500-series HD.

Built With

Tubing: 0.75" OD cold-rolled steel · Ends: Poly bushings, both ends

Make	Model	Submodel	Years
GMC	Yukon XL 1500		2000 - 2006

Construction & Materials

Tubing: 0.75" OD cold-rolled steel · Ends: Poly bushings, both ends

Brand	CORE 4X4
Color	Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow
Lift Size	Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Custom length or 1/2 sizes (put desired length in the Order Notes)
Series	Cruise Series

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
