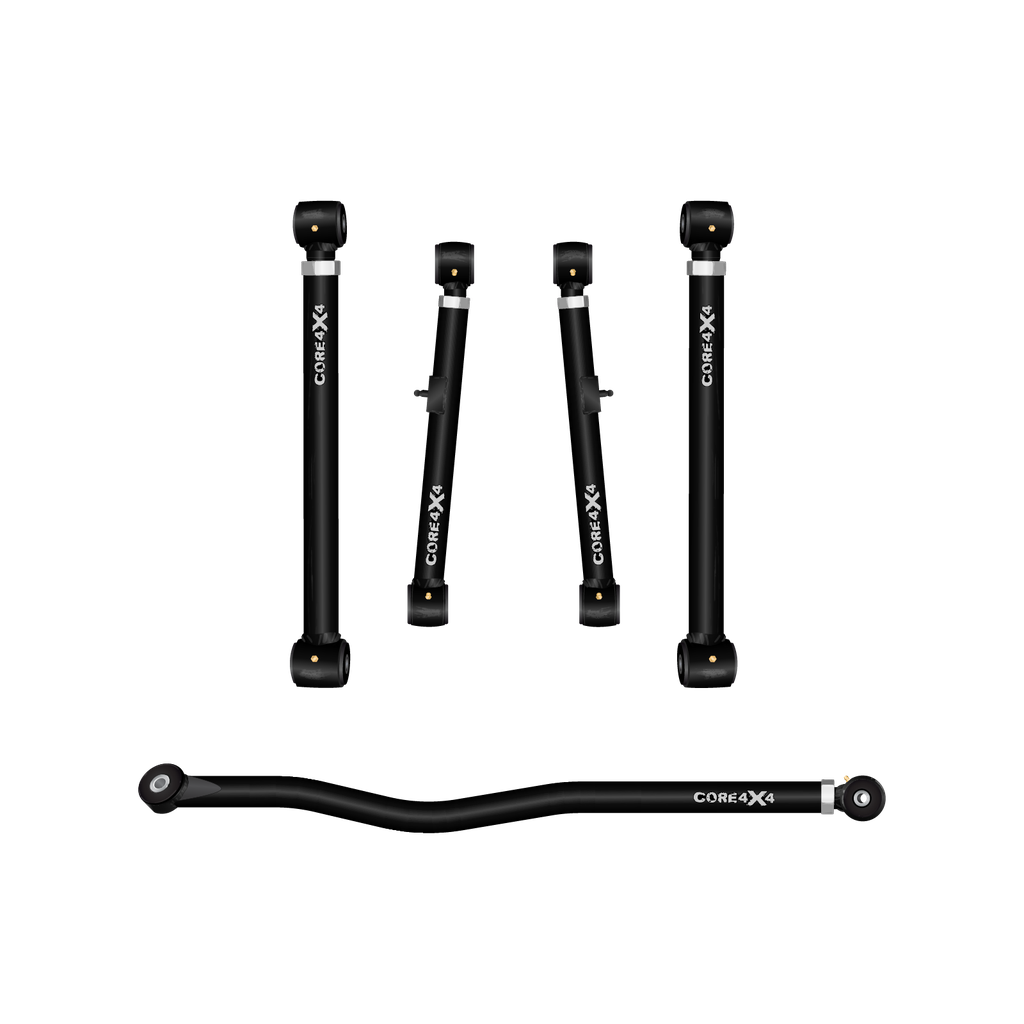

Core 4x4's Cruise Series 5-piece rear suspension kit replaces all four worn factory stamped-steel control arms and the worn factory track bar on the Cadillac Escalade EXT (2002–2006). The factory parts use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle, recenter it side-to-side, or correct pinion angle after a lift or leveling kit. These Core 4x4 parts are a serious step up: heavier steel construction, fresh poly bushings, and adjustable length to set rear axle alignment, side-to-side centering, and pinion angle back to spec.
They're also built to grow with your truck. When you want more articulation later, each adjustable end — on all four arms and the track bar — accepts the same forged Rock Jock Johnny Joints our Camp parts use, so you can upgrade in place without replacing the whole kit.
Includes: Rear upper control arms (pair), rear lower control arms (pair), and the rear adjustable track bar; mounting hardware (bolts, nuts, and washers).
Specs:
- Upper arms — 1.625 in. o.d. × 3/16 in. wall steel
- Lower arms — 1.875 in. o.d. × 3/16 in. wall steel
- Track bar — 1.5 in. o.d. × 5/16 in. wall DOM steel
- Bushings — poly, all ends
- Adjustable length — arms and track bar
- Lift range — 0–6 in.
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Suspension Type — Factory Autoride (Z55): Chances are, your truck came with rear Autoride (Z55) from the factory — GM's air-leveling system. This part is built to match: the ride-height sensor mounting tab is included on both rear upper arms, so your factory sensors bolt right back on. Converted to coil springs — or never had air ride at all? No problem — everything fits and works exactly the same; the sensor tabs just go unused.
Notes:
- Hardware is included with your kit. If you ever need replacements down the road, the matching kit is available separately.
- Future upgrade: each adjustable end accepts a forged Rock Jock Johnny Joint — the rear uppers take CE-9112N-22 (two), the rear lowers take CE-9114 (two), and the track bar takes CE-9112N-22 (one).
- Running a lift? The 7-piece full rear kit (CRS-G-800-EXT-RK7-Z55) adds the rear sway bar end links to finish the rear.
Parts:
- Upper poly bushings — BSH-UPBH-CB, 9/16-in. bolt (2 per upper arm, 4 for the upper pair).
- Lower poly bushings — BSH-LOBH-CB, 9/16-in. bolt (2 per lower arm, 4 for the lower pair).
- Track bar poly bushings — BSH-UPBH-CB, 9/16-in. bolt (1 per end, 2 for the track bar).
- Replacement hardware kit — CRS-G-800-RK5-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
See individual component specifications
| Make | Model | Submodel | Years |
|---|---|---|---|
| Cadillac | Escalade EXT | 2002 - 2006 |
Construction & Materials
See individual component specifications
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | 0" — 6" |
| Series | Cruise Series |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
Reviews of Core 4x4
Specifications
| Color | Black, Blue, Charcoal, Green, Light Green, Orange, Purple, Red, White, Yellow |
| Brand | CORE 4X4 |
| Lift Size | 0" — 6" |
| Series | Cruise Series |
