Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
Details

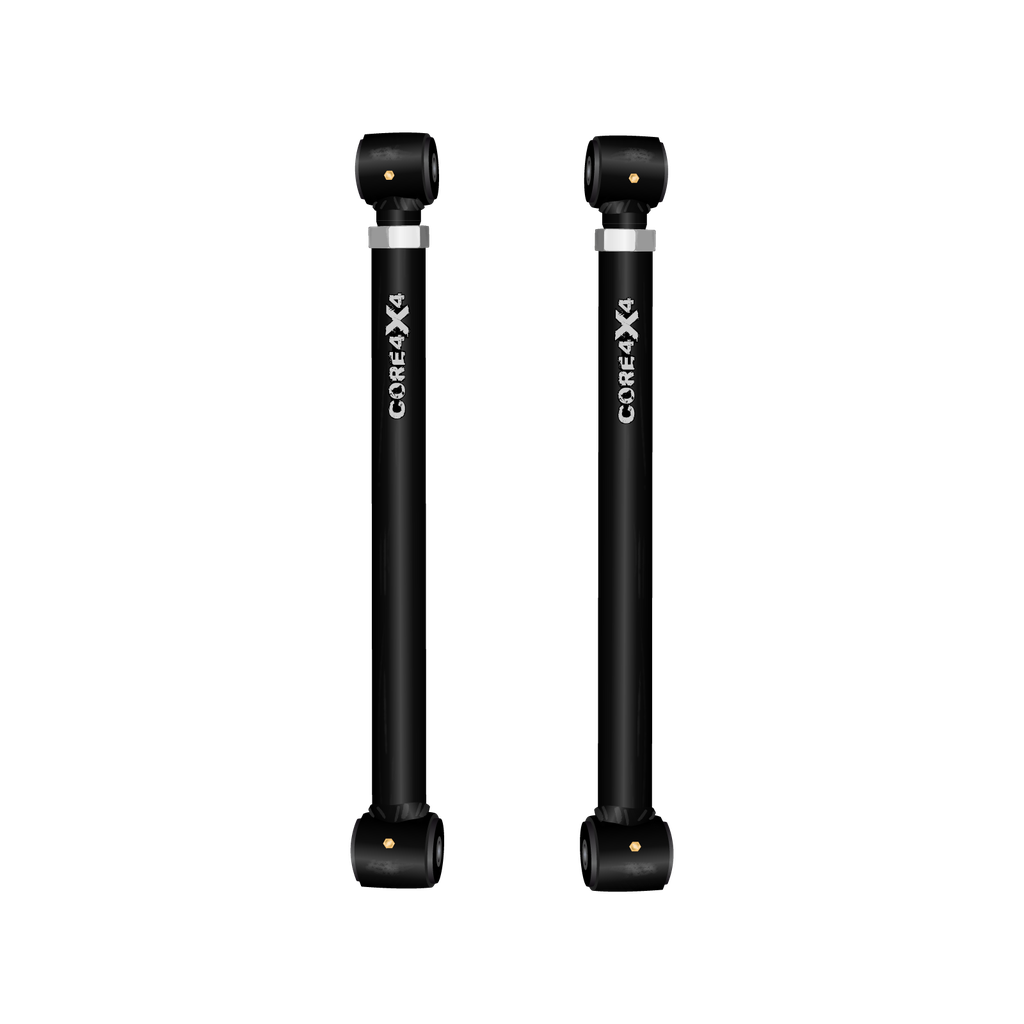

Core 4x4's Cruise Series rear lower control arms replace the worn factory stamped-steel arms on the GMC Yukon XL Denali (2001–2006). The factory arms use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle after a lift or leveling kit. These Core 4x4 arms are a serious step up: heavier steel construction, fresh poly bushings, and adjustable length to set rear axle alignment back to spec.
They're also built to grow with your truck. When you want more articulation later, the adjustable end accepts the same forged Rock Jock Johnny Joint our Camp lower arms use, so you can upgrade in place without replacing the whole arm.
Includes: Rear lower control arms (pair); mounting hardware (bolts, nuts, and washers).
Specs:
- Tubing — 1.875 in. o.d. × 3/16 in. wall steel
- Bushings — poly, both ends
- Adjustable length — for rear-axle alignment
- Lift range — 0–6 in.
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Notes:
- Hardware is included with your arms. If you ever need replacements down the road, the matching kit is available separately.
- Future upgrade: each adjustable end accepts a forged Rock Jock Johnny Joint (CE-9114) — two for the pair.
- Running a lift? The 4-piece rear set (CRS-G-800-DXL-RS4-Z55) adds the matching upper arms to replace all four rear arms in one job.
Parts:
- Poly bushings — BSH-LOBH-CB, 9/16-in. bolt (2 per arm, 4 for the pair).
- Replacement hardware kit — CRS-G-800-RL2-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
Tubing: 1.875" OD, 3/16" wall · Fixed end: Poly bushing · Adjustable end: Poly bushing
| Make | Model | Submodel | Years |
|---|---|---|---|
| GMC | Yukon XL Denali | 2001 - 2006 |
Construction & Materials
Tubing: 1.875" OD, 3/16" wall · Fixed end: Poly bushing · Adjustable end: Poly bushing
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | 0" — 6" |
| Series | Cruise Series |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
PB
Peter Busack
May 27, 2025
★
★
★
★
★
Purchased a set of Trailing arms for my Ram 1500, quality is first class. I bought the ones with the Jonny Joints for more articulation and it appears from the construction I should get a lifetime of use, Zerk fittings are an added plus. Would defiantly recommend, and the the service team answered all of my questions.
RH
Rex Hodges
Jun 26, 2025
★
★
★
★
★
After ordering an upper and lower adjustable control arm kit manufactured by CORE 4X4 from a jeep parts distributor who's intials are E.T., they came with 3 of the threaded ends missing. After over 2 months of phone calls and emails to this E.T. company nothing was resolved. I finally decided to call CORE 4X4 myself and tell them my dilemma. I spoke with a very personable and professional gentleman named Korby, who is one of CORE 4X4's representatives, after a brief discussion of what I went thru he simply asked me for a picture and some measurements and the items I was missing and asked if I could cover ONLY the cost of shipping and I had my missing parts in exactly 1 weeks time. This company not only builds all it's parts in the U.S.A., they stand behind their products with great customer service and life time warranty. My experience with this company and their Rep Korby was fantastic. I would definitely recommend CORE 4X4 to anyone who needs parts for any 4x4 projects. You just can't beat their quality and service.
Rex Hodges
Valparaiso, Indiana
GH
Gary Haag
Aug 25, 2025
★
★
★
★
★
Ordered a set of Core 4x4 control arms for my 2006 Jeep TJ. These are some heavy duty quality control arms. Can't wait to get them installed. Great customer service too!
JO
Jaime Overmyer
Nov 23, 2025
★
★
★
★
★
Korby was extremely helpful in helping me find the right part for my truck. He was kind, knowledgeable, and patient while I asked a million questions. He also went out of his way to find the right shipping option for me since it’s tricky where I live. I’m looking forward to getting the parts so I can fix my truck and go adventuring again soon!
AL
Andrew LaFave
May 27, 2025
★
★
★
★
★
I am really please with this company. Great product, i had an issue with a couple of the jonnhy joint bushings, they explained what had caused it and how to fix it. Within hrs of receiving my inquiry, i had heard back with the required info I needed. A couple hrs later problem was fixed and ready for the trail again. They care about heir product and their customers. Thanks crew, you rock
EC
Eric Cox
Jul 26, 2025
★
★
★
★
★
Prompt, professional, and courteous service! Quality parts and broad assortment of products to suite your 4x4 needs:)
MD
Mark DiGrappa
Apr 27, 2025
★
★
★
★
★
First off: Korby, the gentleman that helped me decide on which kit to go with is EASILY the nicest, and most patient person I’ve dealt with, when ordering parts for this build. Second: the quality of the product is INSANE! These parts are so nicely fabricated, then powder coated for extra longevity, and they even offer an aluminum upgrade in some cases (which I went with, to save weight). Having said all of this, the most impressive thing was the lead time. These parts are build to order, and I literally ordered my suspension one week ago, today! Yes, they built, powder coated, packaged, shipped my suspension components (RAM 1500 Track rear trailing arm full set in 7075 aluminum, and front upper control arms), AND they arrived, all within a week! Granted, that I’m only one state away, but WOW!!! One week?! Amazing! So, in sort: excellent products, which arrived excellently packaged (no damage, an boxes not over-stuffed with heavy suspension parts; three boxes total, as opposed to one super heavy one…my back thanks you), super quickly, and customer service that ANY business would be envious of….so, if you’re in the market, absolutely go with Core 4X4!
JL
John Luna
Nov 23, 2025
★
★
★
★
★
Great team, and help to support my jeep and provide best stuffs
N
Nick
Sep 24, 2025
★
★
★
★
★
I have a 2016 RAM 1500 Crew Cab and I replaced the rear upper and lower control arms also the pan hard track bar and also the sway bar and links for the rear with all I had the articulating bushings. The vehicle now has no body role. They are absolutely incredible if you get the control arms you gotta get the CORE 4 x 4sway bar end links don’t don’t try and be cheap and get Moog or something else you got to get articulating bushings get the core 4 x 4 ones they are the best. My truck drives now through the canyons like a BMW. I have Fox high-performance shocks on there as well with all the CORE 4 x 4 suspension parts and they are amazing. Well worth the money I would highly recommend anybody thinking about CORE 4 x 4 go with CORE 4X4 and if you can go with their articulating bushings, they’re unbelievable drives better now than my Escalades. Well planted no body role and smooth on the Highway unbelievable the difference they all made!!
THANKS AGAIN CORE 4x4!!!!
MM
Mike Martinez
Aug 25, 2025
★
★
★
★
★
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly!
Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Color | Black, Blue, Charcoal, Green, Light Green, Orange, Purple, Red, White, Yellow |
| Brand | CORE 4X4 |
| Lift Size | 0" — 6" |
| Series | Cruise Series |
