This kit includes 2 components, each built and powder-coated in-house.
Unmatched Flexibility, Strength, and Durability

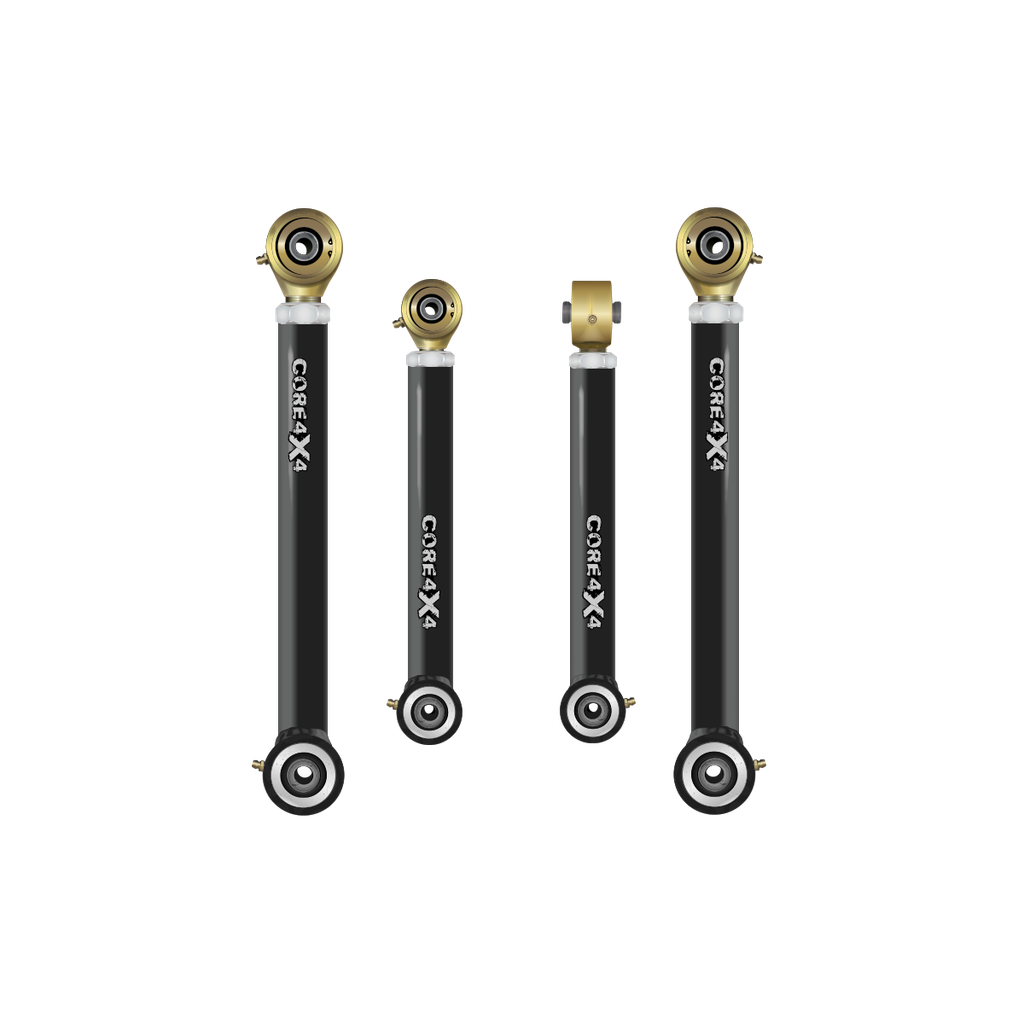

Upgrade your Jeep Grand Cherokee ZJ (1993-1998) with the Crawl Series Rear Control Arm Set, designed to deliver superior off-road articulation while maintaining excellent on-road manners. This set includes adjustable upper and lower control arms, providing precise suspension tuning, improved axle alignment, and increased durability over factory components.
Key Features and Benefits
- Heavy-Duty Construction – Built from 1.5” OD DOM tubing for upper control arms and 1.75” OD DOM tubing for lower control arms, each with a 5/16” wall thickness, ensuring unmatched strength over stock and competitor offerings.
- Fully Adjustable for Lifted Vehicles – Designed to accommodate 0 to 6 inches of lift, allowing for precise alignment correction, improved suspension geometry, and optimized pinion angles.
- Johnny Joint Technology – Featuring Johnny Joints at both ends, providing exceptional flexibility, vibration dampening, and extreme durability in harsh off-road conditions.
- Recommended Pairing – To achieve complete control over pinion angle and rear suspension geometry, pair this set with the Crawl Series Rear Track Bar (CRL-J-ZJ-RTB1) for optimal performance and stability.
Two-Stage Powder Coating for Maximum Protection
All components undergo a two-stage powder coating process to ensure long-lasting durability and corrosion resistance. A zinc primer base coat prevents rust. The durable top coat, available in 10 custom colors, lets you personalize your vehicle’s look while enhancing protection against the elements.
Proudly Made in the USA
Manufactured in Orem, UT, our Crawl Series Rear Control Arms are built to the highest standards of American craftsmanship. By choosing CORE 4X4, you’re investing in locally made, high-quality products designed to withstand the most demanding off-road conditions.
Optional Hardware Upgrade
- Designed for easy installation using factory hardware.
- For those dealing with rusted or stubborn bolts, we offer optional Grade 8 hardware kits, available separately, for a hassle-free setup.
Vehicle Fitment: Jeep Grand Cherokee ZJ 93-98 – A critical upgrade that enhances axle positioning, suspension geometry, and articulation for unmatched performance on and off the trail.
CORE Advantage: Johnny Joints at both ends provide superior articulation, eliminating suspension bind for smoother travel, better axle flex, and improved ride quality.
Adjustability: Accommodates 0 to 6 inches of lift, allowing for precise axle centering, pinion angle correction, and optimized suspension geometry to maximize stability.
Construction: Built from 1.75” OD 5/16” wall DOM tubing for lowers and 1.5” OD 5/16” wall DOM tubing for uppers, ensuring extreme strength, durability, and corrosion resistance.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arm Built With 1.75” OD 5/16” Wall DOM. Welded Johnny Joint on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14 TPI - 2.32” long threads.
Rear Upper Control Arm Built With 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Grand Cherokee | 1993 - 1998 |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arm built with 1.75” OD 5/16” Wall DOM. Forded Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper control arm built with 1.5” OD 5/16” Wall DOM. Welded Johnny Joints on the fixed end and a Forged Johnny Joints on the adjustable end with 1” x 14” TPI - 2.32” long threads.
| Vehicle | Jeep Grand Cherokee ZJ (93–98) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Crawl Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | 0" — 6" or 6"+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
