Cadillac Escalade 02-06 Crawl Series 5pc Rear Suspension Kit

Name: Cadillac Escalade 02-06 Crawl Series 5pc Rear Suspension Kit
Brand: CORE 4X4
SKU: CRL-G-800-ESC-RK5-Z55
Price: 1207.45 USD
Availability: InStock

Shop

SKU: CRL-G-800-ESC-RK5-Z55 ★★★★★ (132 reviews)

$ 1,207.45 1207.45 USD $ 1,207.45

$ 1,207.45

See financing options →

Order today — ships by Mon, Jun 1

Salt Lake City, UT change

Order by 3:00 PM MT today — we'll start tomorrow

See full timeline

Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install

Cadillac Escalade 02-06 Crawl Series 5pc Rear Suspension Kit

COLOR 10 colors — pick yours

	Daily Confidence $839	Trail-Ready $997	Trail Domination $1,207
Articulation	30°	65°	95°
Joint Type	Flex Polyurethane	Forged Johnny Joint	Forged Johnny Joint
Tubing	1.875" OD lowers / 1.625" OD uppers · 3/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM
Maintenance	Periodic greasing	Periodic greasing	Periodic greasing
Warranty	Lifetime	Lifetime	Lifetime
	SELECT CRUISE →	SELECT CAMP →	SELECT CRAWL →

Made in USA Orem, Utah

Lifetime Guarantee Unconditional

10 Colors In-house powder coat

Fully Adjustable 0-6" of lift

3 X-Series Options Only Core 4x4

Details

Core 4x4's Crawl Series 5-piece rear suspension kit replaces all four worn factory stamped-steel control arms and the worn factory track bar on the Cadillac Escalade (2002–2006). The factory parts use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle, recenter it side-to-side, or correct pinion angle after a lift or leveling kit. These Core 4x4 parts are a serious step up: DOM steel tubing and Rock Jock Johnny Joints at both ends of every arm and the track bar for maximum articulation, with adjustable length to set rear axle alignment, side-to-side centering, and pinion angle back to spec.

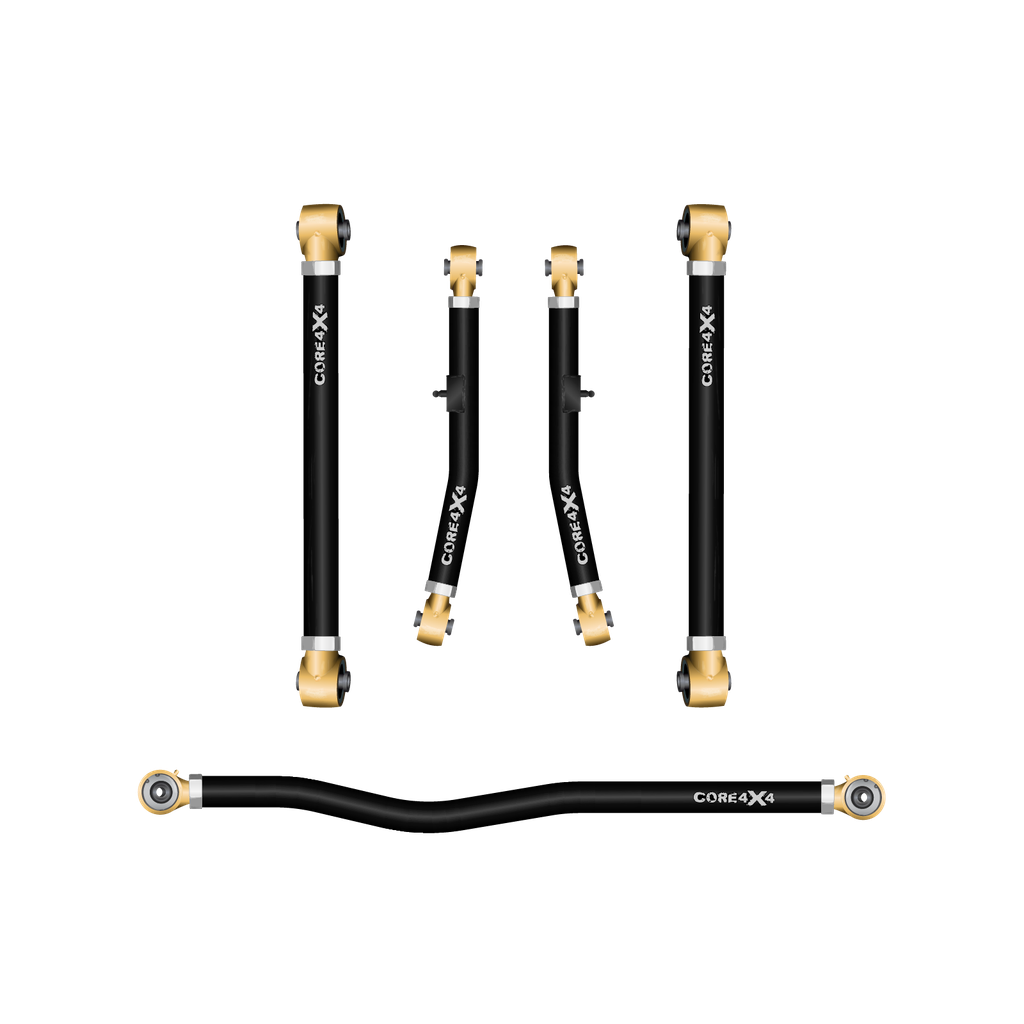

Includes: Rear upper control arms (pair), rear lower control arms (pair), and the rear adjustable track bar; mounting hardware (bolts, nuts, and washers).

Specs:

Upper arms — 1.5 in. o.d. × 5/16 in. wall DOM steel
Lower arms — 1.75 in. o.d. × 5/16 in. wall DOM steel
Track bar — 1.5 in. o.d. × 5/16 in. wall DOM steel
Joints — Rock Jock Johnny Joints, both ends (every arm and the track bar)
Adjustable length — arms and track bar
Lift range — 0–6 in. and up
Made in the USA
Lifetime warranty — bend it or break it, we'll replace it
Wear items (bushings, joints) — covered for 18 months

Suspension Type — Factory Autoride (Z55): Chances are, your truck came with rear Autoride (Z55) from the factory — GM's air-leveling system. This part is built to match: the ride-height sensor mounting tab is included on both rear upper arms, so your factory sensors bolt right back on. Converted to coil springs — or never had air ride at all? No problem — everything fits and works exactly the same; the sensor tabs just go unused.

Notes:

Hardware is included with your kit. If you ever need replacements down the road, the matching kit is available separately.
Running a lift? The 7-piece full rear kit (CRL-G-800-ESC-RK7-Z55) adds the rear sway bar end links to finish the rear.

Parts:

Upper forged Rock Jock Johnny Joint, right-hand — CE-9112N-22 (1 per upper arm, 2 for the upper pair).
Upper forged Rock Jock Johnny Joint, left-hand — CE-9112NL-22 (1 per upper arm, 2 for the upper pair).
Lower forged Rock Jock Johnny Joint, right-hand — CE-9114 (1 per lower arm, 2 for the lower pair).
Lower forged Rock Jock Johnny Joint, left-hand — CE-9114L (1 per lower arm, 2 for the lower pair).
Track bar forged Rock Jock Johnny Joint, right-hand — CE-9112N-22 (1 for the track bar).
Track bar forged Rock Jock Johnny Joint, left-hand — CE-9112NL-22 (1 for the track bar).
Replacement hardware kit — CRL-G-800-RK5-HWK.

Fits:

Chevy Tahoe (2000–2006)
Chevy Suburban 1500 (2000–2006)
Chevy Avalanche 1500 (2002–2006)
GMC Yukon / Yukon XL 1500 (2000–2006)
GMC Yukon Denali / XL Denali (2001–2006)
Cadillac Escalade / ESV / EXT (2002–2006)
1500-series only. Does NOT fit 2500-series HD.

Built With

See individual component specifications

Make	Model	Submodel	Years
Cadillac	Escalade		2002 - 2006

Construction & Materials

See individual component specifications

Brand	CORE 4X4
Color	Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow
Lift Size	0" — 6" or 6"+
Series	Crawl Series

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
