Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
Details

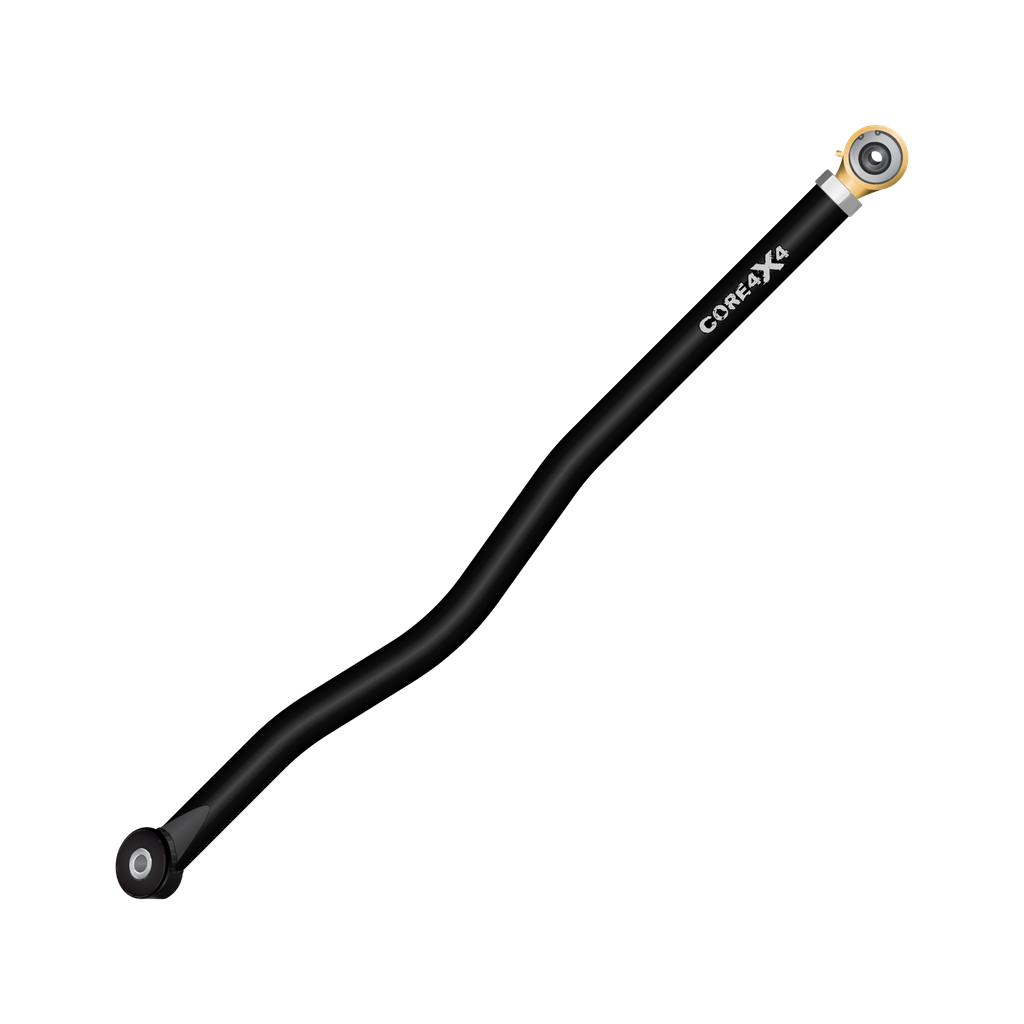

Core 4x4's Camp Series rear adjustable track bar replaces the worn factory track bar on the Chevy Tahoe (2000–2006). The factory bar uses soft rubber bushings and a fixed length, so there's no way to recenter the rear axle after a lift or leveling kit. This Core 4x4 track bar is a serious step up: DOM steel tubing, a poly bushing at the fixed end, and a forged Rock Jock Johnny Joint at the adjustable end for increased articulation, with adjustable length to set the rear axle back to center.
Includes: Rear adjustable track bar; mounting hardware (bolts, nuts, and washers).
Specs:
- Tubing — 1.5 in. o.d. × 5/16 in. wall DOM steel
- Joints — poly bushing at the fixed end, forged Rock Jock Johnny Joint at the adjustable end
- Adjustable length — to recenter the rear axle
- Lift range — 0–6 in. and up
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Notes:
- Hardware is included with your track bar. If you ever need replacements down the road, the matching kit is available separately.
- Running a lift? The 5-piece rear kit (CMP-G-800-TAH-RK5) adds the four rear control arms to re-align the rear axle in every direction.
Parts:
- Poly bushing — BSH-UPBH-CB, 9/16-in. bolt (1 for the track bar).
- Forged Rock Jock Johnny Joint — CE-9112N-22 (1 for the track bar).
- Replacement hardware kit — CMP-G-800-RTB1-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
Tubing: 1.5" OD, 5/16" wall DOM · Fixed end: Poly bushing · Adjustable end: Forged Rock Jock Johnny Joint
| Make | Model | Submodel | Years |
|---|---|---|---|
| Chevrolet | Tahoe | 2000 - 2006 |
Construction & Materials
Tubing: 1.5" OD, 5/16" wall DOM · Fixed end: Poly bushing · Adjustable end: Forged Rock Jock Johnny Joint
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | 0" — 6" or 6"+ |
| Series | Camp Series |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
