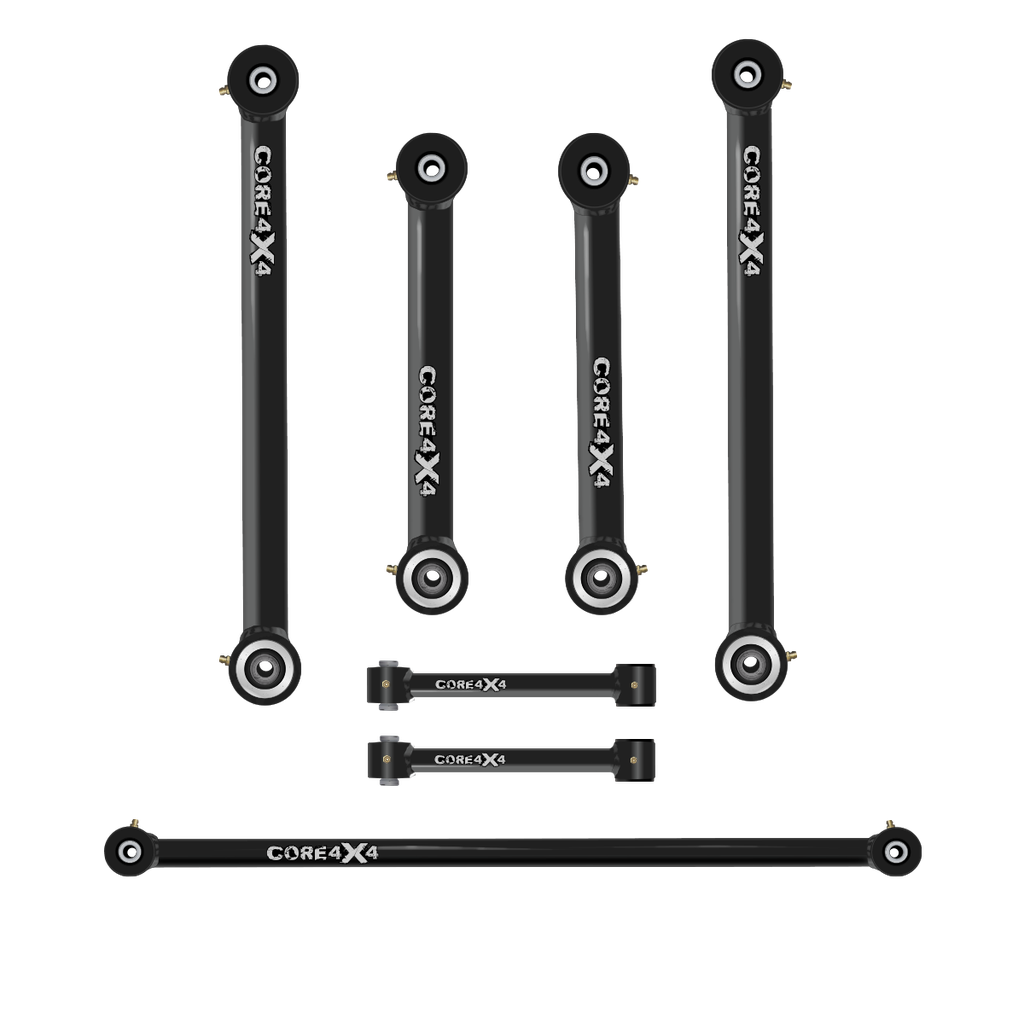

This kit includes 4 components, each built and powder-coated in-house.
Ram 1500 09+ 2pc Trail Series Fixed Length Rear Lower Control Arms
View Component →
Ram 1500 09+ 2pc Trail Series Fixed Length Rear Upper Control Arms
View Component →
Ram 1500 09+ 2pc Trail Series Rear Fixed Length End Links
View Component →
Ram 1500 09+ Trail Series Rear Rear Heavy-Duty Panhard/Track Bar
View Component →The Ultimate Rear Suspension Solution for Stability, Comfort Control
Upgrade your Ram 1500 (2009–Present) with the Trail Series Fixed Rear Suspension Kit with Sway Bar End Links, engineered for superior ride quality, axle stability, and reduced NVH (Noise, Vibration, and Harshness). Whether you're daily driving, towing, or tackling off-road terrain, this kit delivers smooth handling, improved traction, and enhanced rear suspension geometry. Designed as a factory-length direct replacement, it eliminates wheel hop, enhances stability, and provides better road feel without sacrificing comfort.
Key Features Benefits
- Heavy-duty construction for maximum strength – Built with high-strength steel tubing, ensuring superior durability and longevity over factory components.
- Hybrid joint design for comfort performance – Features high-quality polyurethane bushings at one end to reduce NVH and Rock Jock Johnny Joints at the other for maximum articulation and longevity.
- Factory-length compatibility – Designed as a direct-fit upgrade for stock height, leveled, or lowered applications (up to 2” drop), maintaining proper axle positioning and suspension geometry.
- Eliminates wheel hop enhances traction – Factory rubber bushings create preload on the axle, leading to oscillation and instability under acceleration. The Trail Series Kit eliminates wheel hop by allowing controlled axle movement, resulting in better traction and smoother acceleration.
- Complete rear suspension control – Provides total axle stability with upper and lower control arms, a panhard track bar, and sway bar end links, ensuring proper axle centering, suspension alignment, and reduced body roll.
Eliminate Wheel Hop Improve Ride Quality
Factory rubber bushings can bind under load, causing the rear axle to oscillate uncontrollably—a common issue that reduces traction and handling precision. The Trail Series Kit solves this problem with a hybrid joint system—Johnny Joints for articulation and polyurethane bushings to reduce NVH. This allows controlled axle movement, eliminating wheel hop, enhancing traction, and delivering a more stable, predictable ride.
Highly Durable Two-Stage Powder Coating
Every component in this kit undergoes a two-stage powder coating process for maximum durability and corrosion resistance. The zinc primer base coat provides advanced rust protection, while the durable topcoat is available in 10 color options for customization.
Optional Hardware Upgrade
This kit is designed for installation with factory hardware, but for enhanced durability and a stronger, more secure connection, we offer an optional Grade 8 hardware kit (sold separately). This upgrade ensures long-term performance and added installation security.
Proudly Made in the USA
All CORE 4X4 components are designed, manufactured, and tested in Orem, UT. By keeping production local, we ensure strict quality control, superior craftsmanship, and industry-leading durability. Supporting American manufacturing means you get a product that’s built to last.
Final Thoughts
The Trail Series Fixed Rear Suspension Kit with Sway Bar End Links is a premium upgrade for Ram 1500 owners looking for better suspension control, reduced NVH, and improved handling. Whether you're replacing worn-out factory components or upgrading for a smoother, more stable ride, this kit delivers strength, durability, and precision-engineered performance. Upgrade today and experience enhanced stability, traction, and ride quality!
Vehicle Fitment: Designed for Ram 1500 09+, this fixed-length rear suspension kit improves axle stability, handling, and traction for daily driving, towing, and off-road use.
CORE Advantage: Eliminates wheel hop, reduces NVH, and enhances power transfer with polyurethane bushings for comfort and Johnny Joints for maximum articulation and durability.
Adjustability: Fixed-length design ensures a direct replacement for factory components, maintaining proper suspension geometry for stock, leveled, or lowered applications (up to 2”) without additional modifications.
Construction: Upper and lower control arms use 1.75” OD DOM tubing with 5/16” wall thickness, the panhard track bar is 1.5” OD DOM tubing, and the sway bar end links are .75” OD cold-rolled steel. Features polyurethane bushings on one end and Rock Jock Johnny Joints on the other for durability, articulation, and reduced NVH.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Rear Upper Control Arms Built With 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Rear Track Bar Built With 1” Cold Rolled Steel. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Rear End Links Built With .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 1500 | 2009 - Present |
Each rebuild kit includes all necessary components to replace and restore wearable parts.
Construction & Materials
Rear Lower control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Rear Upper control arms built with 1.625” 3/16” Wall DOM. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
Rear End Links built with .75” Cold Rolled Steel. Welded Johnny Joints on one fixed end and a Polyurethane Bushing on the other fixed end.
Rear Track Bar built with 1” Cold Rolled Steel. Welded Johnny Joint on one fixed end with a Polyurethane Bushing on the other fixed end.
| Vehicle | Ram 1500 (09–Present) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or LightGreen or Orange or Purple or Red or White or Yellow or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Series | Trail Series |
| Hardware | No Hardware or Complete Kit |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Lifted 7" or Lifted 8" or Custom length or 1/2 sizes (put desired length in the Order Notes) or Lowered 1" or Lowered 2" or Lowered 3" or Lowered 4" or Lowered 5" or Lowered 6" |
| Brake Cable Attachment Point | No or Yes |
| Factory Air Ride | No or Yes |
| Year Range | 09+ |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
