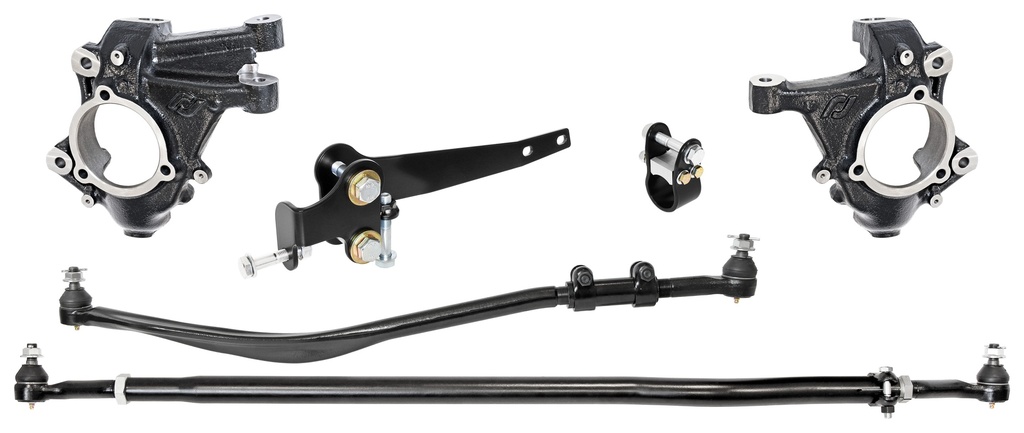

RockJock's Heavy Duty High Steer Knuckle Kit for JL Wrangler, JL Unlimited and JT Gladiator vehicles (with standard Sport width axle) replaces the aluminum factory knuckles and raises your tie rod 2 3/4 in. and your drag link 2 1/2 in.. Currectlync steering that is included in this kit features forged, organically shaped drag link for maximum up travel and a 42mm tie rod. All steering rod ends are forged steel. Additionally, kit includes fully integrated trac bar relocation and steering stabilizer shock mounting bracket that raises your trac bar 2 in. and corrects it's geometry as well as giving you a raised mounting point for your steering stabilizer shock that mounts it dramatically higher, up and behind the new tie rod location, to protect it from rocks. RockJock's fabricated steel tie rod clamp installs to provide and easy hook-up point for the other end of your shock. All other factory outer components retained with the new knuckles including outer axles, unit bearings, dust shields and brakes. The use of RockJock's RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as engineered.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present | |
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) |
| Brand | RockJock |
See It Installed
Install videos and build guides on our YouTube channel.
Watch more installs on YouTube
