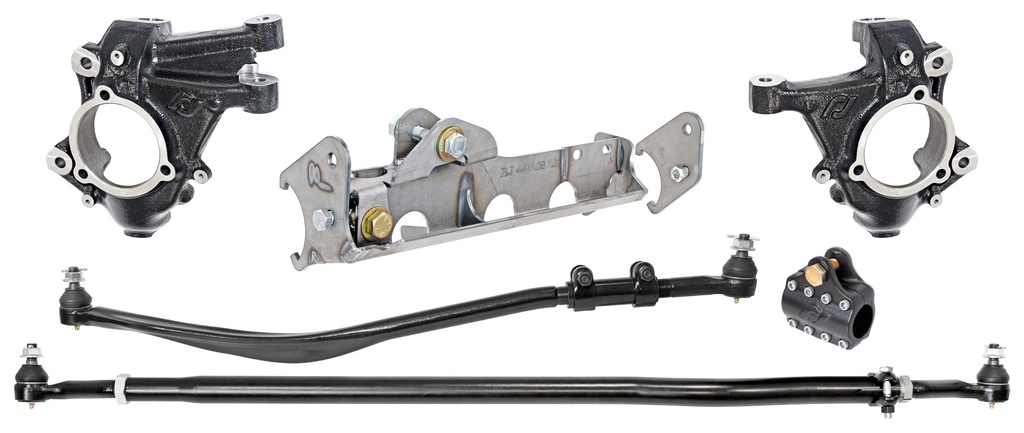

RockJock's Heavy Duty High Steer Knuckle Kit for JL Wrangler, JL Unlimited and JT Gladiator vehicles (with wider Rubicon, Mojave, tow pkg. width axle) replaces the aluminum factory knuckles and raises your tie rod 2 3/4 in. and your drag link 2 1/2 in.. Currectlync steering that is included in this kit features forged, organically shaped drag link for maximum up travel and a 42mm tie rod. All steering rod ends are forged steel. Additionally, kit includes fully integrated trac bar relocation and ram assist mounting bracket that raises your trac bar 2 in. and corrects it's geometry as well as giving you a solid mounting point for your hydraulic steering assist ram. The bottom of the bracket is a skid plate protects the ram from rocks. RockJock's forged chromoly tie rod clamp installs to provide and easy hook-up point for the other end of your ram. All other factory outer components retained with the new knuckles including outer axles, unit bearings, dust shields and brakes. The use of RockJock's RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as engineered.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present | |
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) |
| Brand | RockJock |
