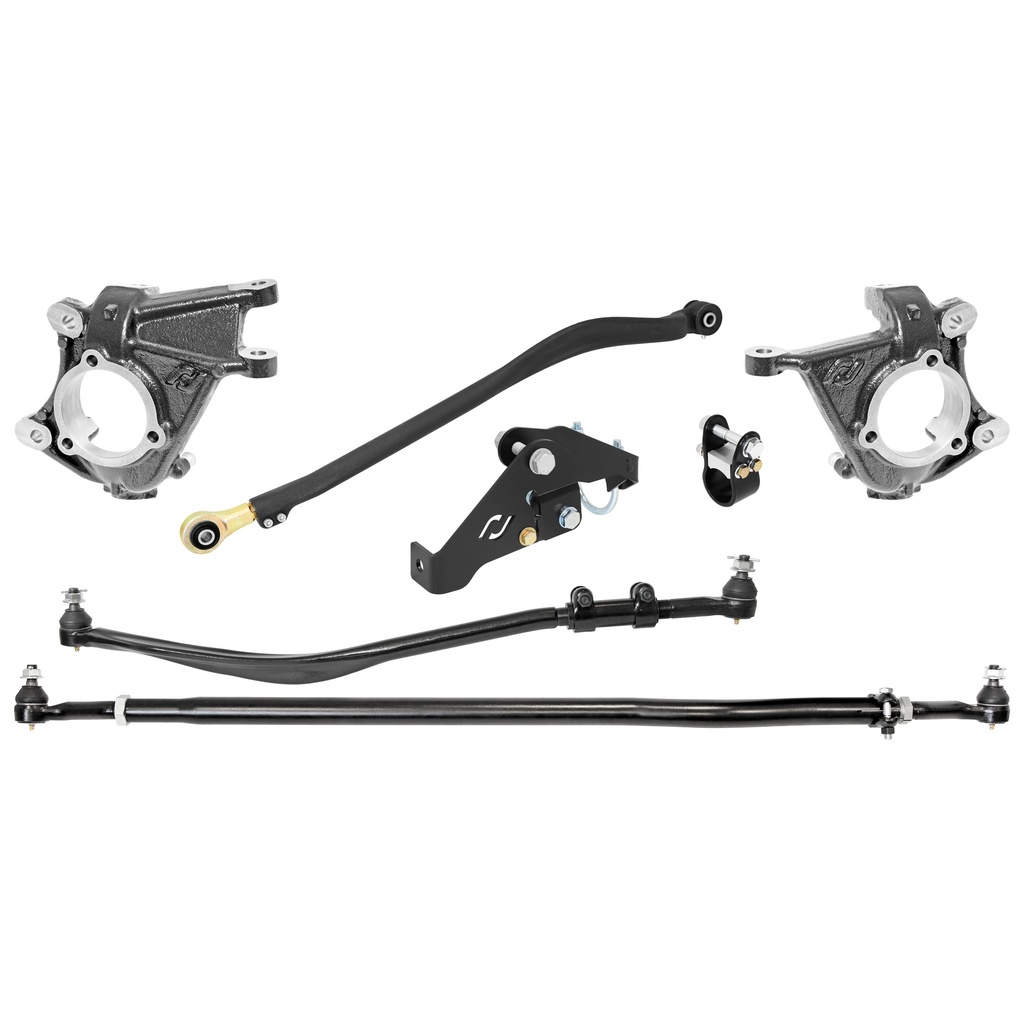

RockJock's Heavy Duty High Steer Knuckle Kit for JK Wrangler and Unlimited vehicles provides everything needed to do the job! The components in this kit are specifically engineered to modernize your JK's steering and trac bar geometry to the improved specs. of a JL/JT, dramatically improving drivability as well as off-road performance. The new knuckles raise both the tie rod and drag link 2 3/4 in. as well as pushing the tie rod outward, away from the axle slightly, allowing for tighter (JL/JT) steering angle over that of stock JK and 1 ton axles. Currectlync steering that is included in this kit features a forged, organically shaped drag link for maximum up-travel and rigidity and a 42mm tie rod. All steering rod ends are forged steel and comparable to those found on modern 1-ton trucks. The included forged, organically shaped JL/JT trac bar's longer length pushes the trac bar adjuster joint outboard of the frame rail providing an additional 5/8 in. of up-travel! RockJock's fully integrated trac bar relocation and steering stabilizer mounting bracket raises your trac bar mounting point 2 in. and corrects it's geometry to prevent bump steer, as well as providing you with a dramatically raised mounting point for a JL/JT spec. steering stabilizer shock (allows for more steering radius), to correct it's geometry and protect it from rocks. A fabricated steel tie rod clamp installs to provide and easy hook-up point for the other end of your shock. All other factory outer components are retained with the new knuckles including outer axles, unit bearings, dust shields and brakes. The use of RockJock's RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2007 - 2018 |
| Brand | RockJock |
See It Installed
Install videos and build guides on our YouTube channel.
Watch more installs on YouTube
