Johnny Joint Rod End, 3 in., Narrow Forged, 1 1/2 in.-12 LH Threads, 3.250 in. x 3/4 in. Ball

127.00 127.0 USD 127.00

127.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/24370/image_1920?unique=09d00f0

Johnny Joint Rod End, 3 in., Narrow Forged, 1 1/2 in.-12 LH Threads, 3.250 in. x 3/4 in. Ball

Johnny Joint Rod End, 3 in., Narrow Forged, 1 1/2 in.-12 LH Threads, 3.250 in. x 3/4 in. Ball
SKU: RJ-365500-101

127.00 127.0 USD 127.00

127.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

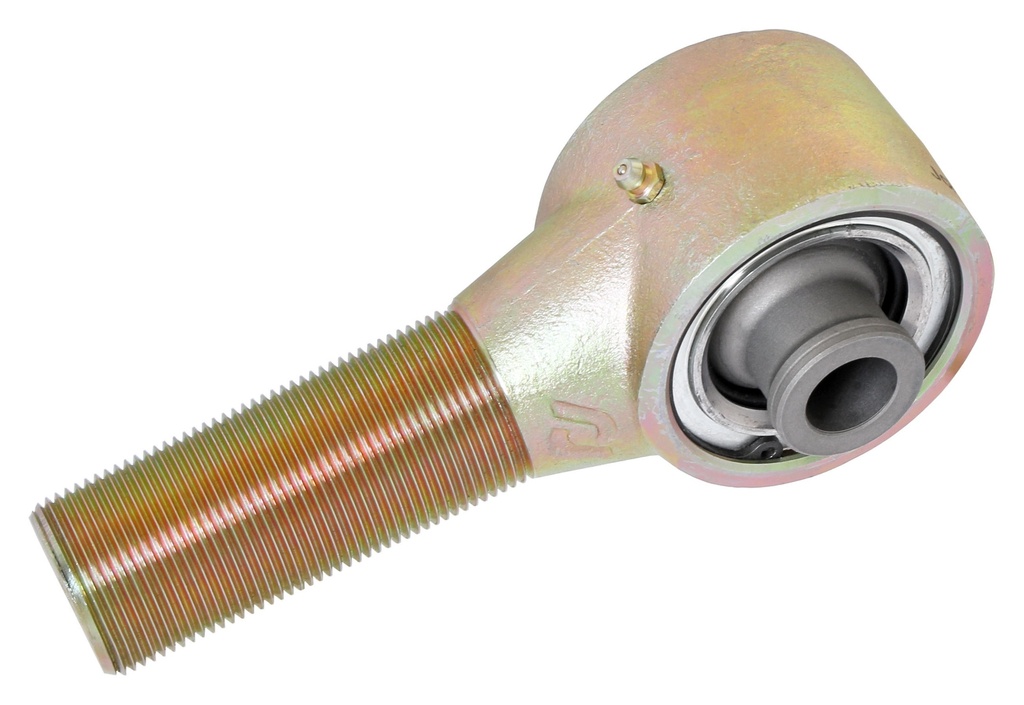

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 in. diameter joint body, fitted with a zerk fitting for greasing, 3.67 in. of 1 1/2 in.-12 left hand threads on the shank, and a 3.250 in. mounting width ball with a .750 thru bolt hole. Finished in gold zinc plating.

Brand RockJock
