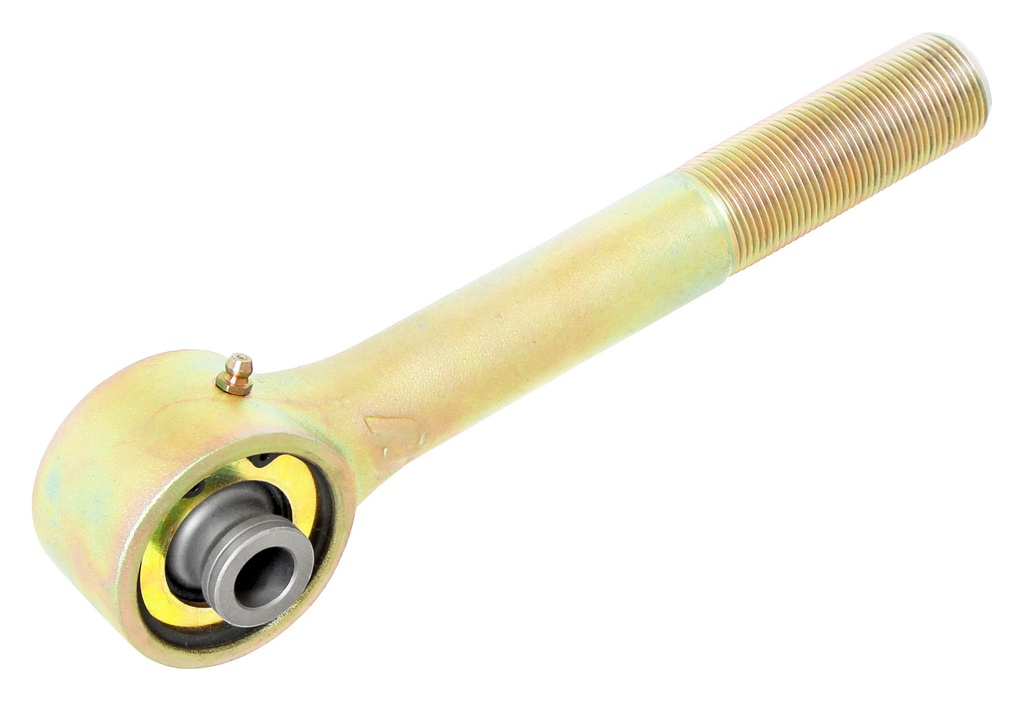

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, narrow body and features a 9 1/2 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 1/4 in.-12 RH threads and a 2.625 in. wide x .562 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.
| Brand | RockJock |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
A
Aaron
Mar 23, 2024
★
★
★
★
★
I have recently come to know Core 4x4 when I purchased a Jeep XJ and was looking for a place that had dedicated XJ suspension and components. Here is what makes them different than most other shops. All of their components are top shelf quality and they back it up if you break any of it. I was able to see their shop when I picked up an order locally and was impressed with their attention to detail and how they assemble and powder coat each part. I had an issue with a shackle and needed the threaded shaft to be shorter. I called in and talked to Kaden and he told me to come by and they would shorten it for me. When I got there, Kaden and Spencer (the owner) met me and talked about options and proceeded to make the right adjustments to fit my XJ. Told me if anything changes in the future and I need additional length, they would take care of me. So what really sets them apart from others is their Customer Service. Try calling in to any other Jeep suspension or part shop and see how they treat you. Been there - done that.
Will continue to do business with Core and their team. Getting that kind of service for just a shackle has me thinking I may need to replace my JT components with Core's. Thanks Guys for being helpful good humans!
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
ZA
Zen Asher
Mar 23, 2025
★
★
★
★
★
The quality and durability of the arms are the best. They are super heavy duty. And lifetime warranty is crazy
JC
John Cutler
Oct 24, 2025
★
★
★
★
★
In September 2025, we visited CORE 4x4 in Orem, Utah. CORE 4x4 makes control arms and other similar parts that stiffen the suspension of an off-road 4x4 vehicles, so that the off-road vehicles can travel on more rugged terrain. CORE 4x4 used to share this building with another business, and since this other business has moved elsewhere, CORE 4x4 will continue to expand and grow their business. Good for CORE 4x4 to be a growing company and to expand into the vacant part of the building.
BZ
Brandon Zeiders
Dec 23, 2025
★
★
★
★
★
I ordered the jeep xj long arm lift kit. Control arms showed up first they turned out amazing!! Had some issues with the powder coating on the cross member and sent korby and the team at core4x4 an email. They got right on making me another cross member and sending it out. I appreciate all the help they've given me along the way. Very fast response thru emails. Build quality seems to be pretty dang nice!! Can't wait to install it and enjoy it!
RM
R2d2 Movi78
Feb 21, 2026
★
★
★
★
★
I’m extremely impressed with Core 4x4. The quality of their parts is outstanding — everything feels solid, well‑built, and engineered with real attention to detail. Shipping was fast and everything arrived perfectly packaged. Their customer service is just as good as their products: responsive, helpful, and genuinely committed to making sure you get exactly what you need.
Overall, a top‑tier experience. I’ll definitely be buying from them again. Specially thank you Mr. Linscomb from Core 4x4. Arturo M.
JF
jacob fezza
Mar 24, 2022
★
★
★
★
★
I wanted to take a moment and give these guys a shout out, I’ve currently got, for my xj, their adjustable control arms, tier 4 adjustable track bar and adjustable leaf spring shackles. You can always count on a fair price, high quality products, and quick delivery. Keep up the great work guys, will definitely continue to shop with you
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
AH
Abbey Hiett
Mar 25, 2019
★
★
★
★
★
Company finally made things right
DT
Dean Tk421
Feb 21, 2026
★
★
★
★
★
I purchased the Jeep WJ control arms Camp series over a year ago. Very pleased and impressed. Easy installation and solid build. Bracket broke for rear upper control arm, they redesigned it to be more robust and sent me a new one with hardware, honoring their guarantee!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | RockJock |
