Johnny Joint Rod End, 2 1/2 in., Narrow Forged, Long Shank, 1 1/4 in.-12 RH Threads, 2.625 in. x .640 in. Ball

92.00 92.0 USD 92.00

92.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/24366/image_1920?unique=de245c6

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, Long Shank, 1 1/4 in.-12 RH Threads, 2.625 in. x .640 in. Ball

Johnny Joint Rod End, 2 1/2 in., Narrow Forged, Long Shank, 1 1/4 in.-12 RH Threads, 2.625 in. x .640 in. Ball
SKU: RJ-335400-102

92.00 92.0 USD 92.00

92.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

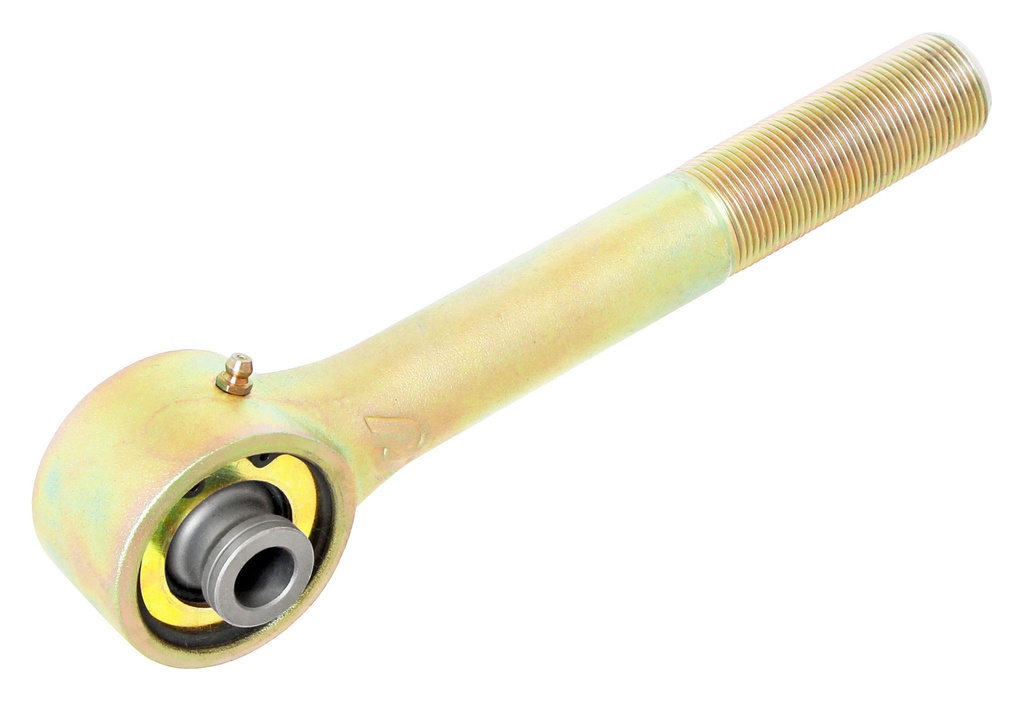

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, narrow body and features a 9 1/2 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 1/4 in.-12 RH threads and a 2.625 in. wide x .640 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.

Brand RockJock
