Johnny Joint Rod End, 2 in., Narrow Forged, Long Shank, 1 in.-14 RH Threads, 1.800 in. x .630 in. Ball

90.00 90.0 USD 90.00

90.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/24335/image_1920?unique=09d00f0

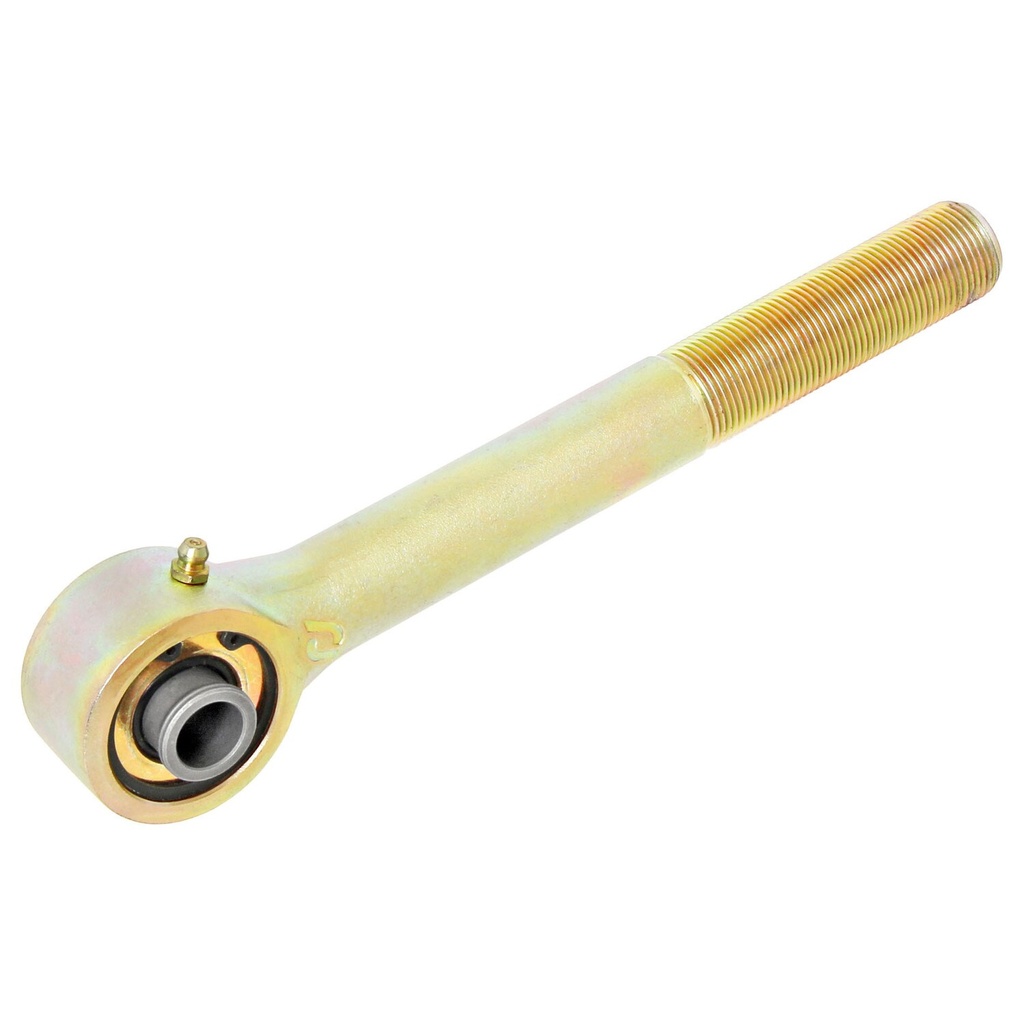

Johnny Joint Rod End, 2 in., Narrow Forged, Long Shank, 1 in.-14 RH Threads, 1.800 in. x .630 in. Ball

Johnny Joint Rod End, 2 in., Narrow Forged, Long Shank, 1 in.-14 RH Threads, 1.800 in. x .630 in. Ball
SKU: RJ-305300-102

90.00 90.0 USD 90.00

90.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

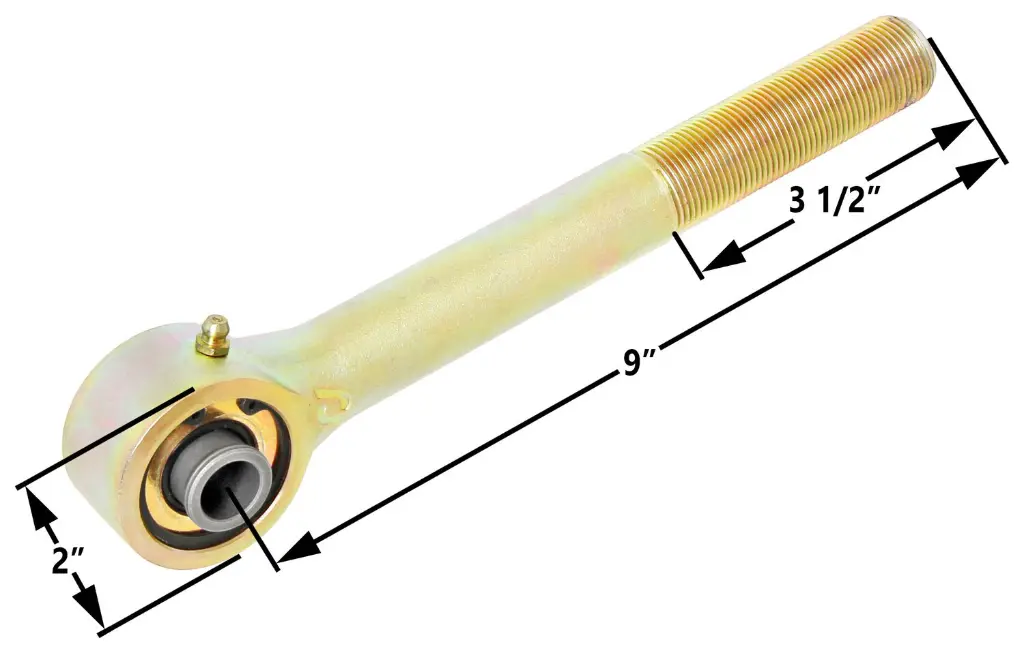

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, narrow body and features a 9 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 in.-14 RH threads and a 1.800 in. wide x .630 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.

Brand RockJock
