Apex Chassis Heavy Duty Dodge Ram Ball Joint Kit Includes: 2 Upper & 2 Lower
Pick your vehicle to confirm fit

240.00 240.0 USD 240.00

240.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/22278/image_1920?unique=2d5d26f

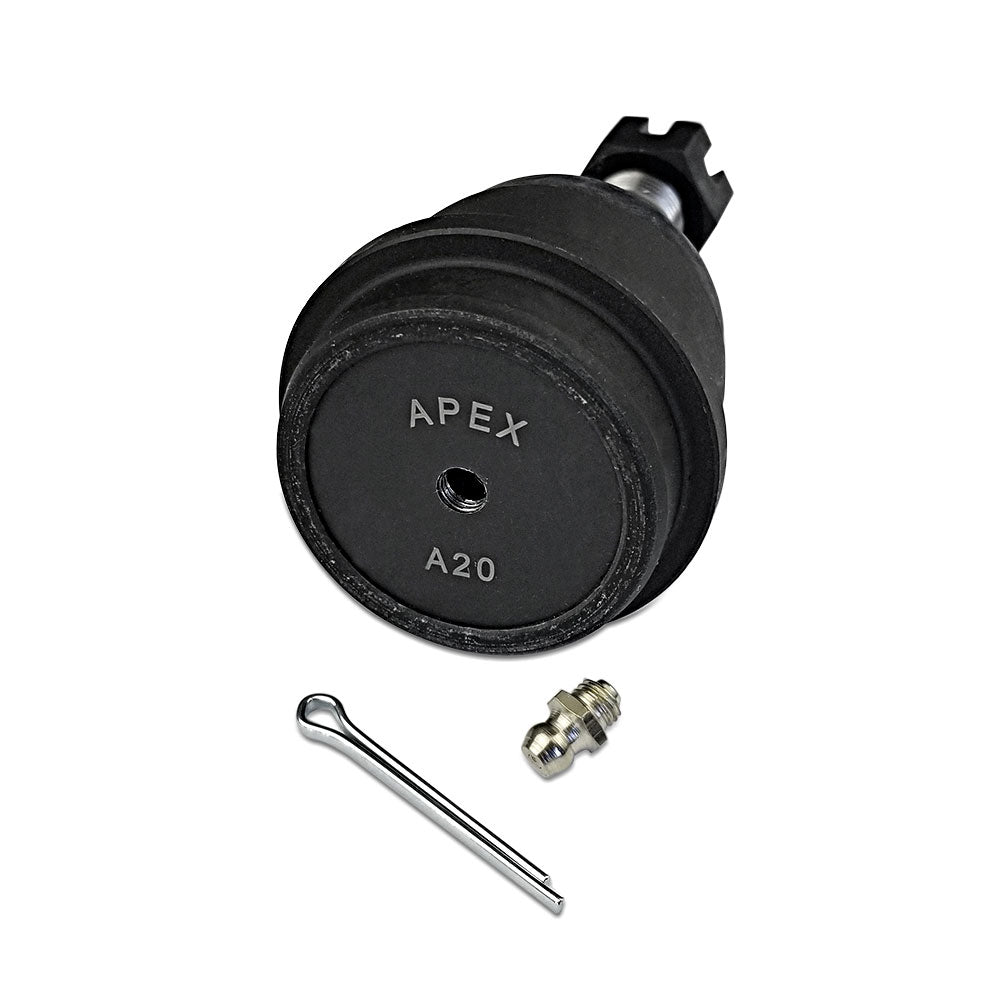

Apex Chassis Heavy Duty Dodge Ram Ball Joint Kit Includes: 2 Upper & 2 Lower

Apex Chassis Heavy Duty Dodge Ram Ball Joint Kit Includes: 2 Upper & 2 Lower
SKU: KIT114
Pick your vehicle to confirm fit

240.00 240.0 USD 240.00

240.00

Not Available For Sale

  • Brand
  • Year Range

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

The Special Sauce:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • UPPER: Carbon Bearing Design: Used mainly in Jeep and Dodge upper ball joints is the solver of all things wobbly. Like all our products.
  • LOWER: Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), can be polished smooth as steel, is anti-friction, doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • UPPER: Castle Nut: Industry standard where high vibration loads occur.
  • LOWER: Tension Nut: Very strong hold in most applications.

LUBRICATION

  • Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings: Included for every application.

Where It Fits:

Moog Interchange:

K7394 & K7397

Vehicle Position: Front Upper, Front Lower

Quantity per Vehicle: 1


Make Model Submodel Years
Dodge/Ram 2500 1994 - 1999
Dodge/Ram 3500 1994 - 1999

Brand Apex Chassis
Year Range 00-02
