Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
The Special Sauce:
HOUSING
- SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
- CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
- SAE 4140 hot forged Chromoly Ball Studs: For strongest possible metallurgy.
- Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
- Rolled Threads:Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
- Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued. (Installer Choice).
BOOTS
- CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
- Accordion Boot: ideal for high-articulation components, more flexibility means longer life.
FINISH
- E-Coating: Extremely durable electrochemical finishing process
HARDWARE
- Grade 8 - Class 10.9 Hardware: Superior tensile strength.
- Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
- Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
- Greaseable: Because it should be.
- Pre-Greased: Just in case you forget, we have you covered.
- Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
- Zerk Fittings: Included for every application.
SPECIAL FEATURES

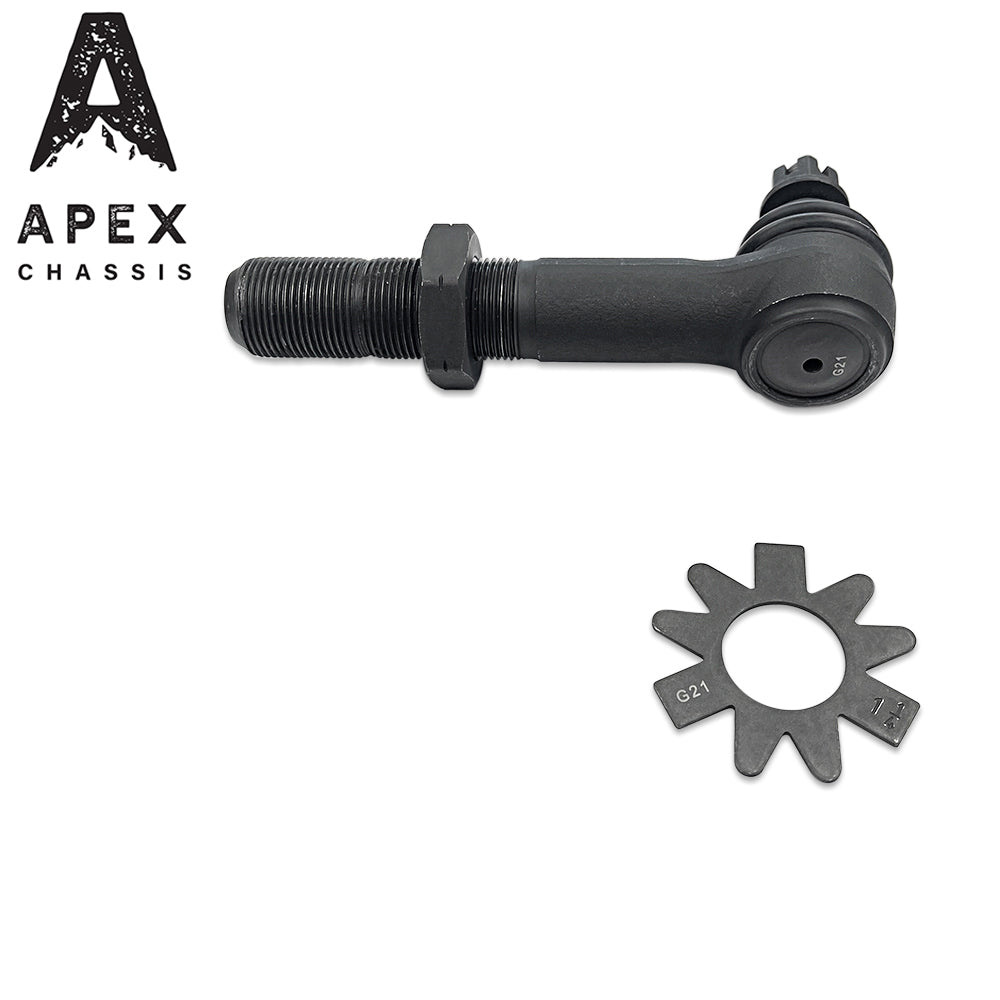

- Minimum Engagement Mark on Drag Link End Threads: If this mark in the thread of the drag link is showing it means you are beyond the safe engagement of threads into the adjusting sleeve. You may be lifted too high and need to switch to a flip kit or you may need to equal out the adjusting sleeve between the two ends.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2007 - 2018 |
| Brand | Apex Chassis |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
DD
Dmitriy D
May 27, 2025
★
★
★
★
★
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast.
Thank you so much. I wish you will have something new for my car.
RG
Robert Van Gorder
Apr 27, 2025
★
★
★
★
★
Amazing service. Bought a track bar through Americantrucks.com and they sent it with the wrong size bushing sleeve. Korby at Core 4x4 was quick to get me the correct size and very responsive. Will definitely be using more of their stuff.
AM
Adam M
Sep 24, 2025
★
★
★
★
★
First time buying from Korby @ Core 4x4 and it’s being nothing short of a great experience. I bought the non adjustable Trail kit for my 5th Gen Ram 1500 with a 2” lift. The welds look great, nice powder coat finish and quality bushing. Had some trouble fitting the grease nipples due to the powder coating but a thread tap would fix that. They fit easily and perform great. I felt the improvement straight away. No more wheel hop on hard acceleration which was my main reason for the purchase.
I was missing some smaller bushings needed for the 5th Gen and Korby’s custom service was on point, with responsive emails and mailing out the missing parts straight away. Very happy with their products and customer service. Highly recommended company👌🏽
MD
Mark DiGrappa
Apr 27, 2025
★
★
★
★
★
First off: Korby, the gentleman that helped me decide on which kit to go with is EASILY the nicest, and most patient person I’ve dealt with, when ordering parts for this build. Second: the quality of the product is INSANE! These parts are so nicely fabricated, then powder coated for extra longevity, and they even offer an aluminum upgrade in some cases (which I went with, to save weight). Having said all of this, the most impressive thing was the lead time. These parts are build to order, and I literally ordered my suspension one week ago, today! Yes, they built, powder coated, packaged, shipped my suspension components (RAM 1500 Track rear trailing arm full set in 7075 aluminum, and front upper control arms), AND they arrived, all within a week! Granted, that I’m only one state away, but WOW!!! One week?! Amazing! So, in sort: excellent products, which arrived excellently packaged (no damage, an boxes not over-stuffed with heavy suspension parts; three boxes total, as opposed to one super heavy one…my back thanks you), super quickly, and customer service that ANY business would be envious of….so, if you’re in the market, absolutely go with Core 4X4!
N
Nick
Sep 24, 2025
★
★
★
★
★
I have a 2016 RAM 1500 Crew Cab and I replaced the rear upper and lower control arms also the pan hard track bar and also the sway bar and links for the rear with all I had the articulating bushings. The vehicle now has no body role. They are absolutely incredible if you get the control arms you gotta get the CORE 4 x 4sway bar end links don’t don’t try and be cheap and get Moog or something else you got to get articulating bushings get the core 4 x 4 ones they are the best. My truck drives now through the canyons like a BMW. I have Fox high-performance shocks on there as well with all the CORE 4 x 4 suspension parts and they are amazing. Well worth the money I would highly recommend anybody thinking about CORE 4 x 4 go with CORE 4X4 and if you can go with their articulating bushings, they’re unbelievable drives better now than my Escalades. Well planted no body role and smooth on the Highway unbelievable the difference they all made!!
THANKS AGAIN CORE 4x4!!!!
AL
Aaron Lake
Apr 27, 2025
★
★
★
★
★
Korby was a great help with getting me a set of leaf springs for my Cherokee. Great customer service and an awesome product all made in the USA. Proud to support and rock their parts on my vehicle. 👍 …
E(
Eric Hernandez (savagefit)
May 27, 2025
★
★
★
★
★
The whole process was quick and painless. The products are top tier and when I reached out them for package update info, Korby Linscomb was very responsive, and got me the answers I needed the same day. Even when I emailed back to some additional info, he sent what I was looking for that same day. I love core 4x4 and will be giving them my business from now on.
TM
T Mac
Mar 23, 2026
★
★
★
★
★
CORE 4X4 Company produces/manufactures exceptional products. My rear upper and lower control arms and rear track bar were powder coated custom Fox “Shock Orange” for my 2024 Bronco Wildtrak. OEM looks minimal compared to the CORE 4X4 control arms. Plus they’re adjustable, serviceable and rebuildable. Shipment was very fast and packaging used custom foam wrapped around the arms and heavy duty boxes. Not even UPS could damage. Korby L. was great to work with and responded quickly with emails and product information. Great products. Great people from the State of Utah. All Made in the USA. 5 Stars!!!
DD
DANIEL DUSSAULT
Nov 23, 2025
★
★
★
★
★
Very beefy items for a very reasonable price. Personally have CORE rear track bar and all upper control arms for my 04 Jeep TJ. Had a slight issue with control arm length and they went above and beyond to swap jam nuts to get me where I needed to be. Really have to appreciate a company like this.
VK
Victor Keele
Sep 24, 2025
★
★
★
★
★
Great customer service. I got my front upper and lower control arms and hardware on Friday afternoon. It didn’t come with instructions so I called Core 4X4 and they immediately e mailed me the instructions. Also, the kit I got had the spacers missing so I called. It was late Friday by thus time but they took care of the issue first thing Monday morning and I got the spacers on Tuesday. Great company.
