Details

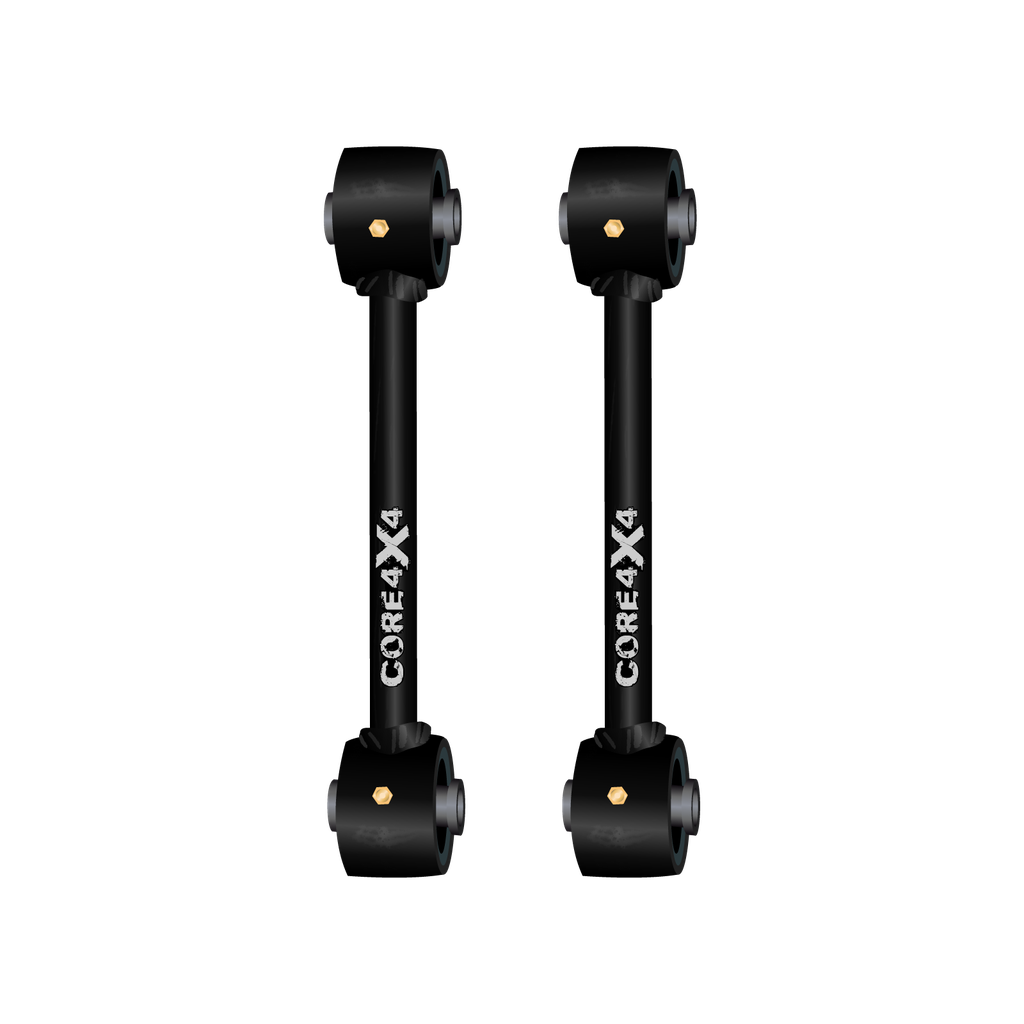

Core 4x4's Crawl Series rear sway bar end links replace the worn factory links on the Cadillac Escalade (2002–2006). The factory links use soft rubber bushings and are sized for stock ride height, so after a lift they sit at the wrong length and the sway bar can't keep the body flat the way it should. These Core 4x4 end links are a serious step up: 0.75 in. solid cold-rolled steel and welded Rock Jock Johnny Joints at both ends for maximum articulation, built to the exact length for your lift to hold up to hard off-road use.
Includes: Rear sway bar end links (pair); mounting hardware (bolts, nuts, and washers).
Specs:
- Material — 0.75 in. solid cold-rolled steel
- Ends — welded Rock Jock Johnny Joints, both ends
- Built to length — for your selected lift size (stock–6 in., or custom), non-adjustable
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Notes:
- Core 4x4 end links use a thru-bolt design that won't work with factory stud-and-nut hardware, so the install hardware — bolts, nuts, and washers — always ships in the box. If you ever need replacements down the road, the matching kit is available separately.
- Doing a lift? The 7-piece full rear kit (CRL-G-800-ESC-RK7-Z55) does the entire rear suspension in one order.
Parts:
- Johnny Joint rebuild kit — CE-9112NRK, welded ends (1 per end, 4 for the pair).
- Replacement hardware kit — CRL-G-800-REL2-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
Tubing: 0.75" OD cold-rolled steel · Ends: Welded Rock Jock Johnny Joints, both ends
| Make | Model | Submodel | Years |
|---|---|---|---|
| Cadillac | Escalade | 2002 - 2006 |
Construction & Materials
Tubing: 0.75" OD cold-rolled steel · Ends: Welded Rock Jock Johnny Joints, both ends
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Custom length or 1/2 sizes (put desired length in the Order Notes) |
| Series | Crawl Series |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
