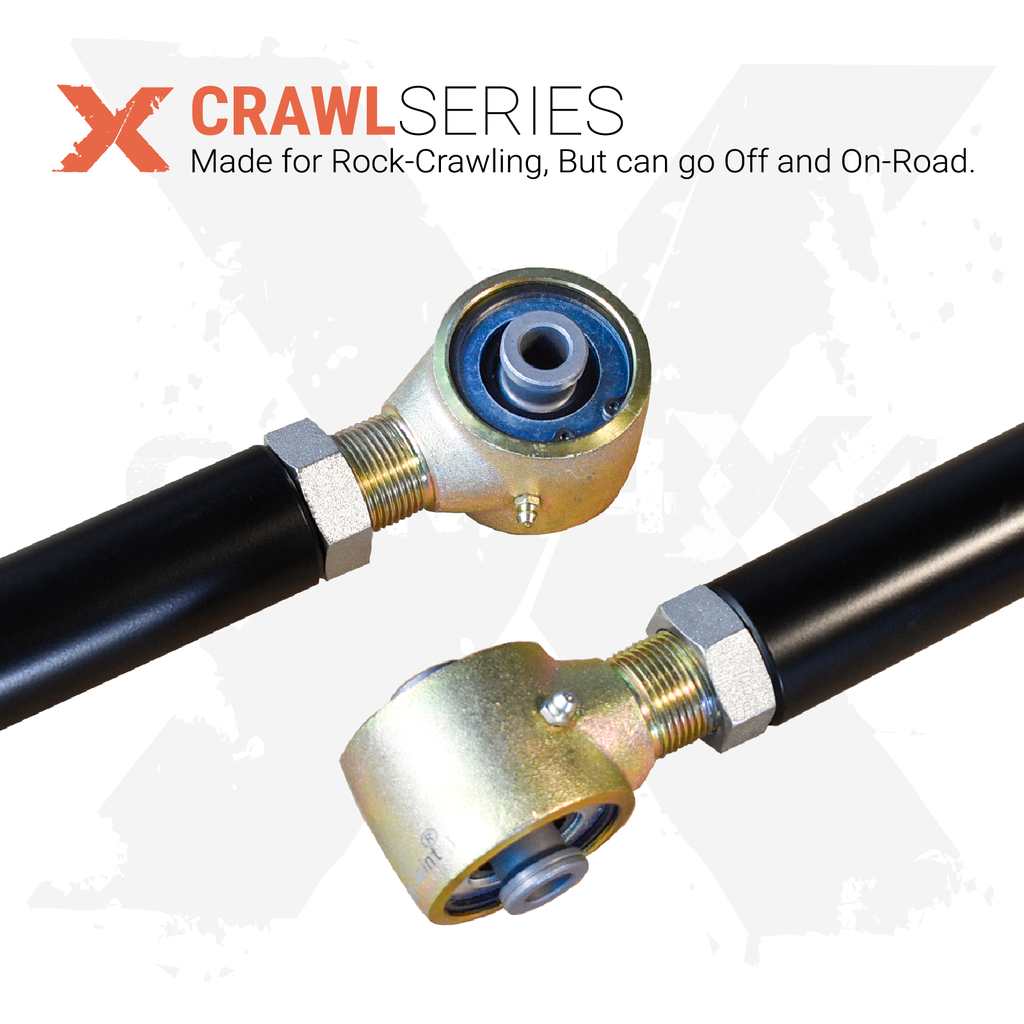

Core 4x4's Crawl Series 7-piece full rear suspension kit replaces all four worn factory stamped-steel control arms, the worn factory track bar, and the worn factory sway bar end links on the GMC Yukon XL Denali (2001–2006). The factory parts use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle, recenter it side-to-side, or correct pinion angle after a lift or leveling kit — and the end links sit at the wrong length, so the sway bar can't keep the body flat the way it should. These Core 4x4 parts are a serious step up: DOM steel tubing and Rock Jock Johnny Joints at both ends of every arm and the track bar for maximum articulation, with adjustable length to set rear axle alignment, side-to-side centering, and pinion angle back to spec — plus solid cold-rolled-steel end links with welded Rock Jock Johnny Joints at both ends, built to the exact length for your lift to hold up to hard off-road use.

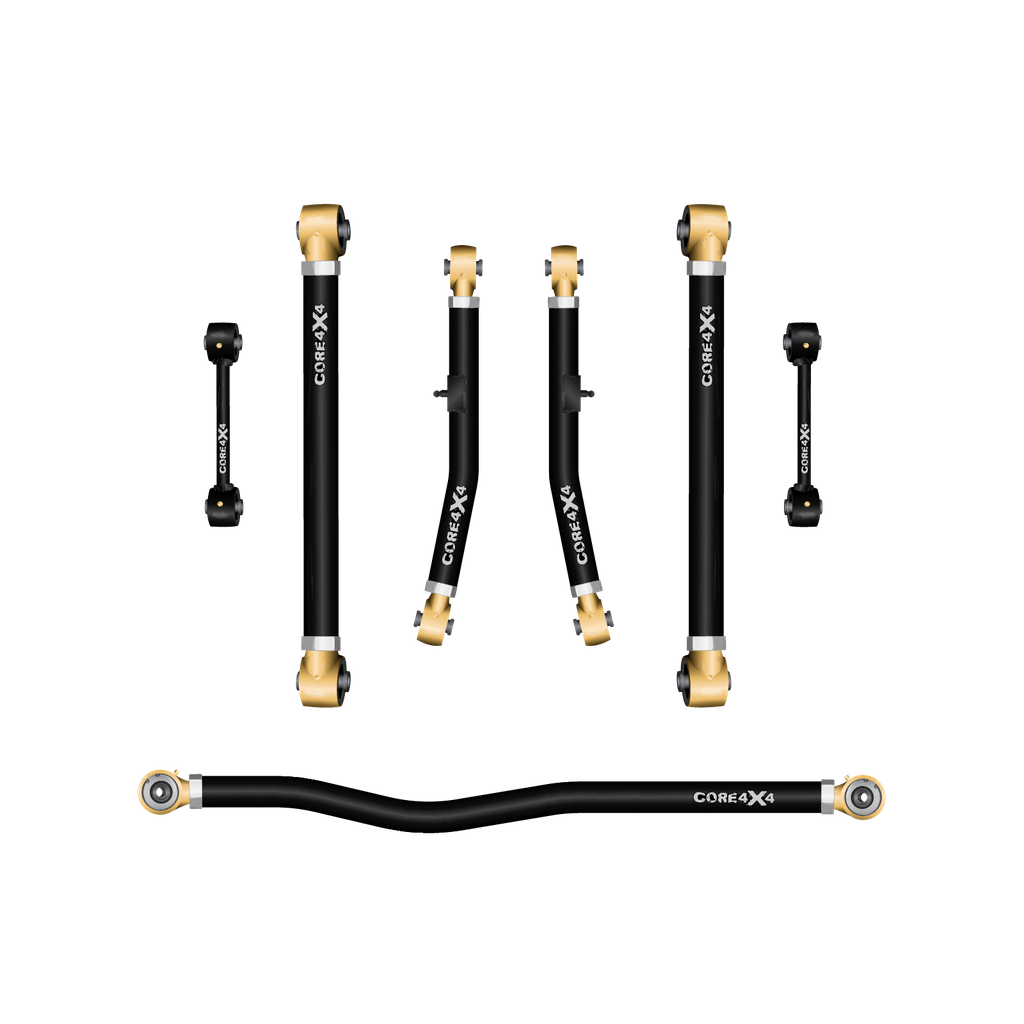

Includes: Rear upper control arms (pair), rear lower control arms (pair), the rear adjustable track bar, and the rear sway bar end links (pair); mounting hardware (bolts, nuts, and washers).
Specs:
- Upper arms — 1.5 in. o.d. × 5/16 in. wall DOM steel
- Lower arms — 1.75 in. o.d. × 5/16 in. wall DOM steel
- Track bar — 1.5 in. o.d. × 5/16 in. wall DOM steel

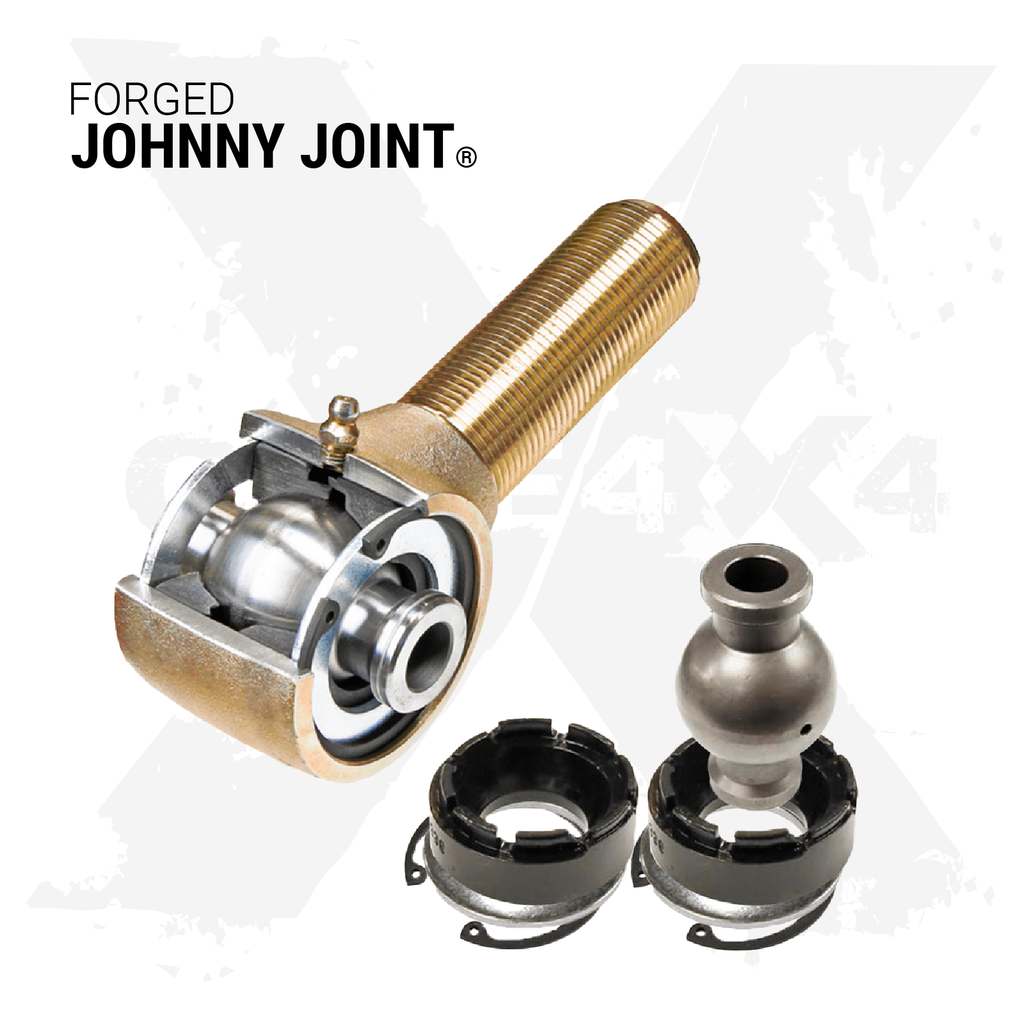

- Joints (arms & track bar) — Rock Jock Johnny Joints, both ends
- End links — 0.75 in. solid cold-rolled steel; welded Rock Jock Johnny Joints, both ends; built to length for your selected lift size (stock–6 in., or custom), non-adjustable
- Adjustable length — arms and track bar
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Suspension Type — Factory Autoride (Z55): Chances are, your truck came with rear Autoride (Z55) from the factory — GM's air-leveling system. This part is built to match: the ride-height sensor mounting tab is included on both rear upper arms, so your factory sensors bolt right back on. Converted to coil springs — or never had air ride at all? No problem — everything fits and works exactly the same; the sensor tabs just go unused.
Notes:
- Hardware is included with your kit. If you ever need replacements down the road, the matching kit is available separately.
- This is the complete rear suspension package — pair it with quality rear shocks and a front leveling or lift kit to balance the truck out.
Parts:
- Upper forged Rock Jock Johnny Joint, right-hand — CE-9112N-22 (1 per upper arm, 2 for the upper pair).
- Upper forged Rock Jock Johnny Joint, left-hand — CE-9112NL-22 (1 per upper arm, 2 for the upper pair).
- Lower forged Rock Jock Johnny Joint, right-hand — CE-9114 (1 per lower arm, 2 for the lower pair).
- Lower forged Rock Jock Johnny Joint, left-hand — CE-9114L (1 per lower arm, 2 for the lower pair).
- Track bar forged Rock Jock Johnny Joint, right-hand — CE-9112N-22 (1 for the track bar).
- Track bar forged Rock Jock Johnny Joint, left-hand — CE-9112NL-22 (1 for the track bar).
- End-link Johnny Joint rebuild kit — CE-9112NRK, welded both ends (1 per end, 4 for the pair).
- Replacement hardware kit — CRL-G-800-RK7-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With
See individual component specifications
| Make | Model | Submodel | Years |
|---|---|---|---|
| GMC | Yukon XL Denali | 2001 - 2006 |
Construction & Materials
See individual component specifications
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | Stock Height or Lifted 1" or Lifted 2" or Lifted 3" or Lifted 4" or Lifted 5" or Lifted 6" or Custom length or 1/2 sizes (put desired length in the Order Notes) |
| Series | Crawl Series |
Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.
Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.
You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
