Details

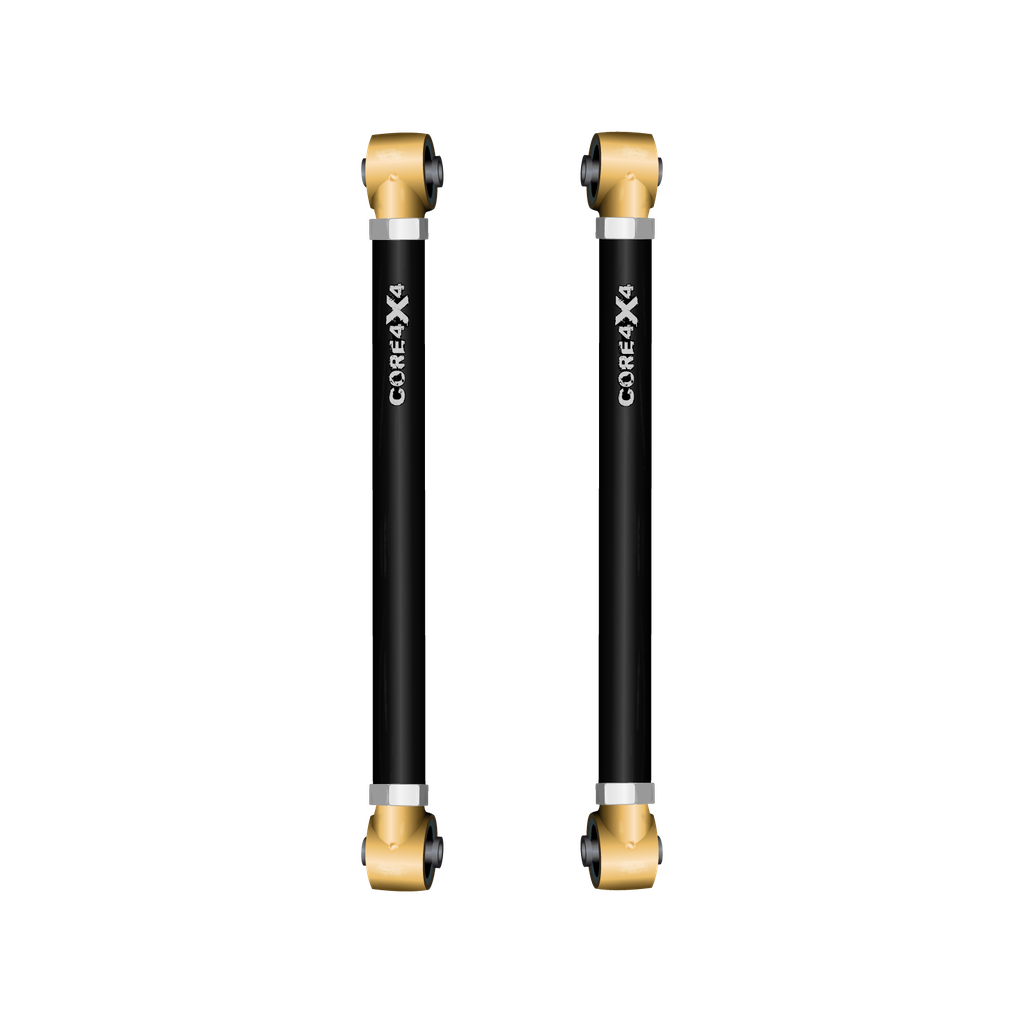

Core 4x4's Crawl Series rear lower control arms replace the worn factory stamped-steel arms on the Chevy Avalanche 1500 (2002–2006). The factory arms use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle after a lift or leveling kit. These Core 4x4 arms are a serious step up: DOM steel tubing and forged Rock Jock Johnny Joints at both ends for maximum articulation, with adjustable length to set rear axle alignment back to spec.
Includes: Rear lower control arms (pair); mounting hardware (bolts, nuts, and washers).
Specs:
- Tubing — 1.75 in. o.d. × 5/16 in. wall DOM steel

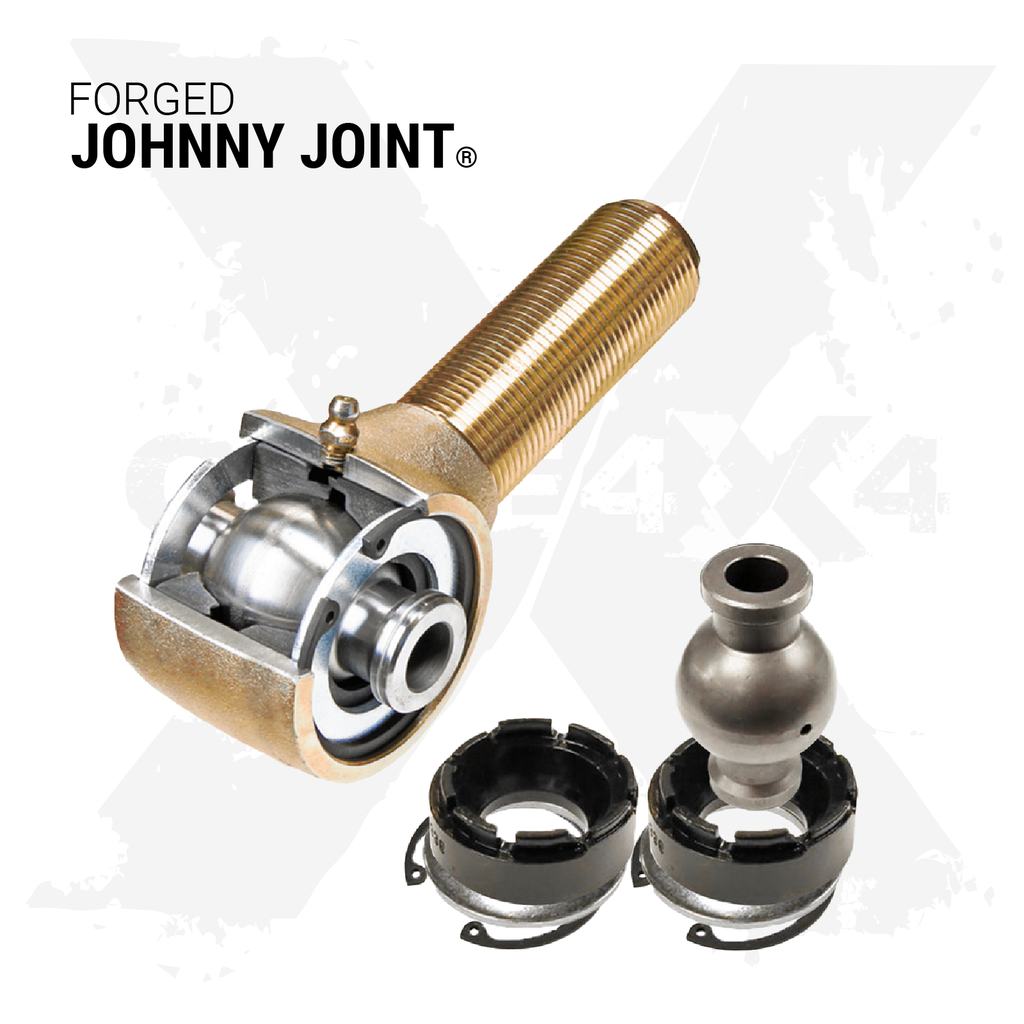

- Joints — forged Rock Jock Johnny Joints, both ends (double-threaded)
- Adjustable length — for rear-axle alignment
- Lift range — 0–6 in. and up
- Made in the USA
- Lifetime warranty — bend it or break it, we'll replace it
- Wear items (bushings, joints) — covered for 18 months
Notes:
- Hardware is included with your arms. If you ever need replacements down the road, the matching kit is available separately.
- Running a lift? The 4-piece rear set (CRL-G-800-AVA-RS4) adds the matching upper arms to replace all four rear arms in one job.
Parts:
- Forged Rock Jock Johnny Joint, right-hand — CE-9114 (1 per arm, 2 for the pair).
- Forged Rock Jock Johnny Joint, left-hand — CE-9114L (1 per arm, 2 for the pair).
- Replacement hardware kit — CRL-G-800-RL2-HWK.
Fits:
- Chevy Tahoe (2000–2006)
- Chevy Suburban 1500 (2000–2006)
- Chevy Avalanche 1500 (2002–2006)
- GMC Yukon / Yukon XL 1500 (2000–2006)
- GMC Yukon Denali / XL Denali (2001–2006)
- Cadillac Escalade / ESV / EXT (2002–2006)
- 1500-series only. Does NOT fit 2500-series HD.
Built With

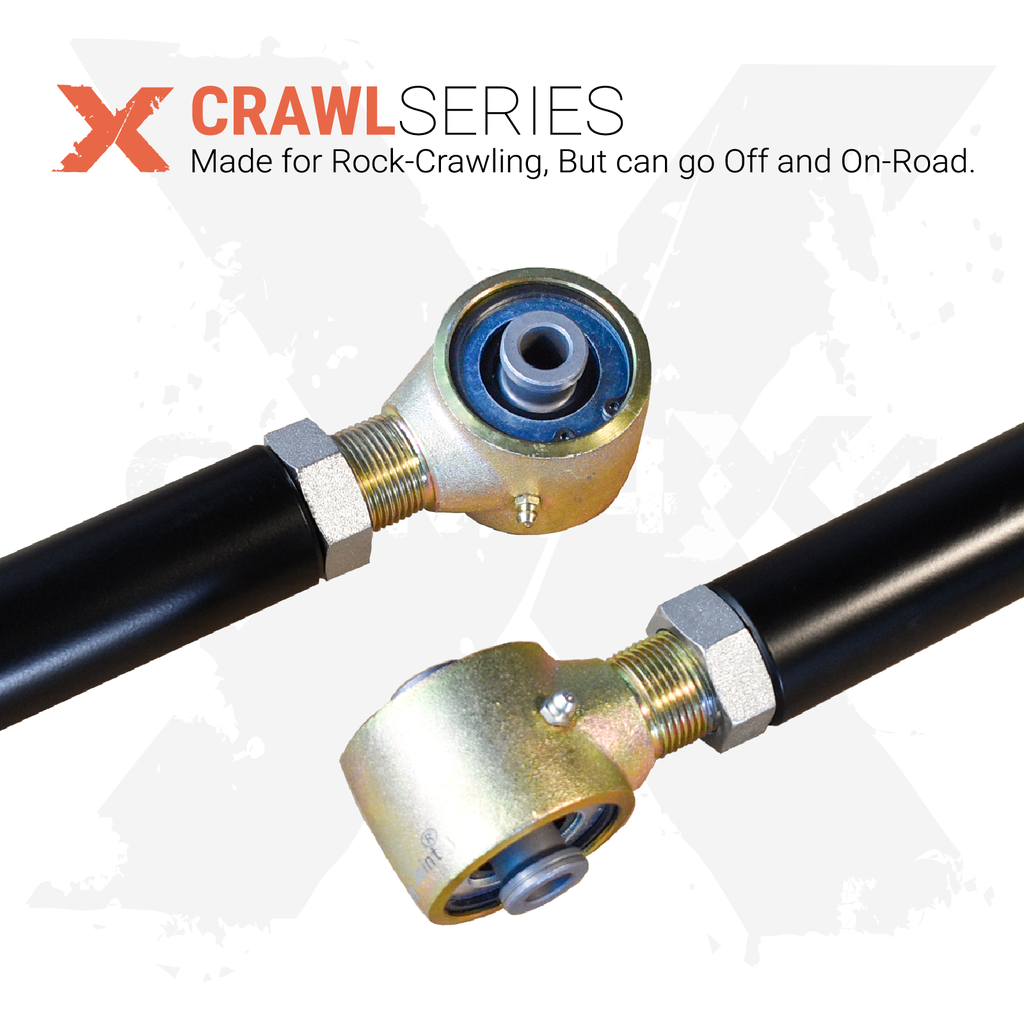

Tubing: 1.75" OD, 5/16" wall DOM · Joints: Forged Rock Jock Johnny Joints, both ends (double-threaded)
| Make | Model | Submodel | Years |
|---|---|---|---|
| Chevrolet | Avalanche 1500 | 2002 - 2006 |
Construction & Materials
Tubing: 1.75" OD, 5/16" wall DOM · Joints: Forged Rock Jock Johnny Joints, both ends (double-threaded)
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow |
| Lift Size | 0" — 6" or 6"+ |
| Series | Crawl Series |
