Chevy Avalanche 1500 02-06 Camp Series 4pc Rear Control Arm Set

Name: Chevy Avalanche 1500 02-06 Camp Series 4pc Rear Control Arm Set
Brand: CORE 4X4
SKU: CMP-G-800-AVA-RS4
Price: 555.61 USD
Availability: InStock

Rear Lower Control Arms

SKU: CMP-G-800-AVA-RS4 ★★★★★ (132 reviews)

$ 555.61 555.61 USD $ 675.59

$ 675.59

(Save 18%)

See financing options →

Order today — ships by Mon, Jun 1

Salt Lake City, UT change

Order by 3:00 PM MT today — we'll start tomorrow

See full timeline

Lifetime warranty Fitment guarantee Ships from Orem, UT 4–8 hr install

Chevy Avalanche 1500 02-06 Camp Series 4pc Rear Control Arm Set

Chevy Avalanche 1500 02-06 Camp Series 4pc Rear Control Arm Set - gallery

COLOR 10 colors — pick yours

	Daily Confidence $467	Trail-Ready $555	Trail Domination $686
Articulation	30°	65°	95°
Joint Type	Flex Polyurethane	Forged Johnny Joint	Forged Johnny Joint
Tubing	1.875" OD lowers / 1.625" OD uppers · 3/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM	1.75" OD lowers / 1.50" OD uppers · 5/16" wall DOM
Maintenance	Periodic greasing	Periodic greasing	Periodic greasing
Warranty	Lifetime	Lifetime	Lifetime
	SELECT CRUISE →	SELECT CAMP →	SELECT CRAWL →

Made in USA Orem, Utah

Lifetime Guarantee Unconditional

10 Colors In-house powder coat

Fully Adjustable 0-6" of lift

3 X-Series Options Only Core 4x4

Details

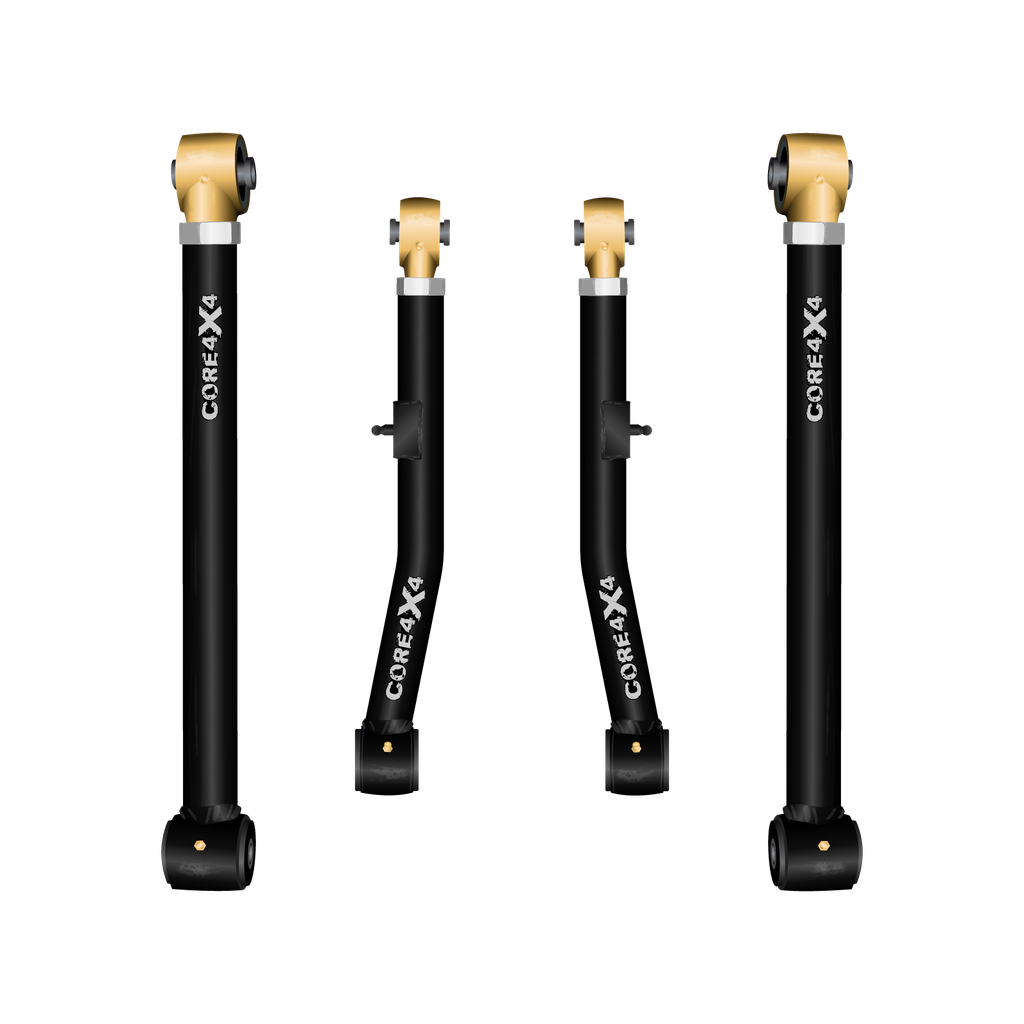

Core 4x4's Camp Series 4-piece rear control arm set replaces all four worn factory stamped-steel arms on the Chevy Avalanche 1500 (2002–2006). The factory arms use soft rubber bushings and a fixed length, so there's no way to re-align the rear axle or correct pinion angle after a lift or leveling kit. These Core 4x4 arms are a serious step up: DOM steel tubing, a poly bushing at each fixed end, and a forged Rock Jock Johnny Joint at each adjustable end for increased articulation, with adjustable length to set rear axle alignment and pinion angle back to spec.

Includes: Rear upper control arms (pair) and rear lower control arms (pair); mounting hardware (bolts, nuts, and washers).

Specs:

Upper arms — 1.5 in. o.d. × 5/16 in. wall DOM steel
Lower arms — 1.75 in. o.d. × 5/16 in. wall DOM steel

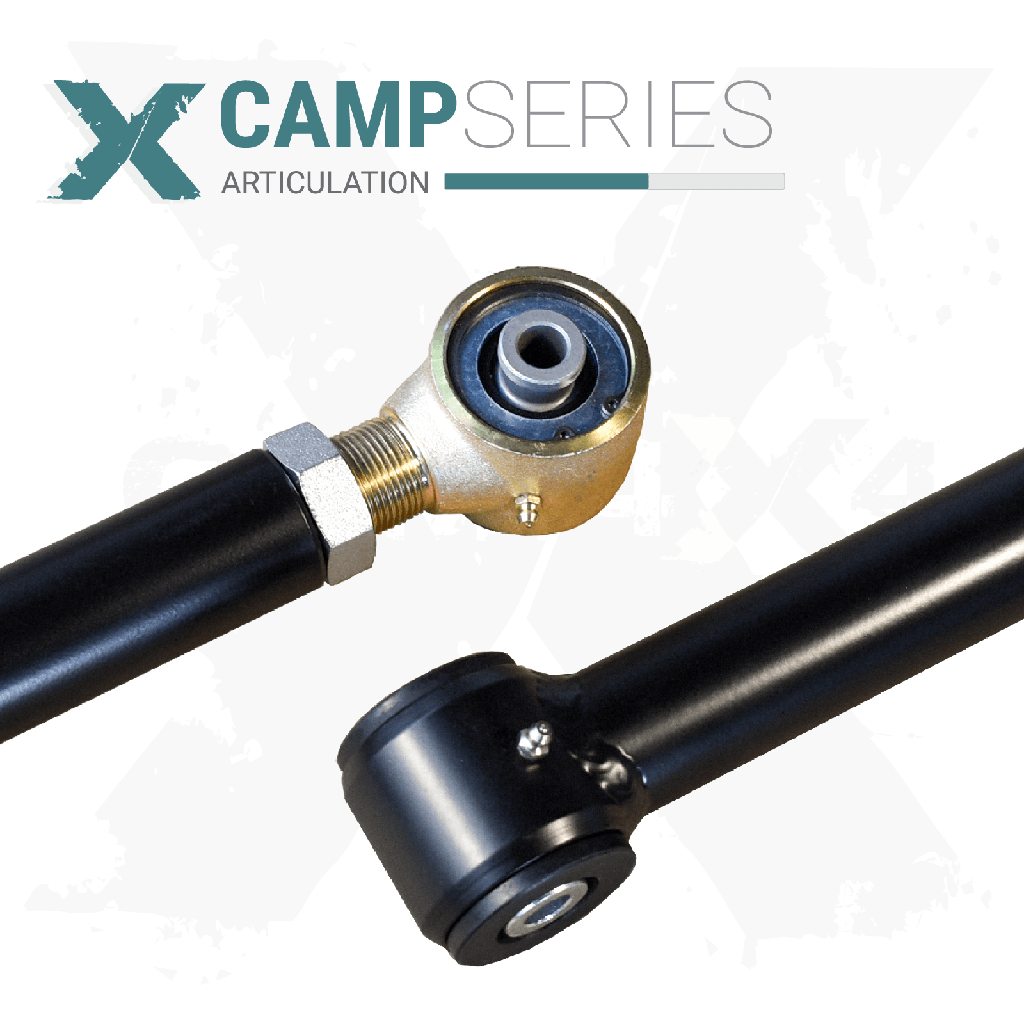

Joints — poly bushing at each fixed end, forged Rock Jock Johnny Joint at each adjustable end
Adjustable length — for rear-axle alignment and pinion-angle correction
Lift range — 0–6 in. and up
Made in the USA
Lifetime warranty — bend it or break it, we'll replace it
Wear items (bushings, joints) — covered for 18 months

Suspension Type — Standard or Autoride (Z55): Select at checkout. Z55 trucks have factory rear air leveling; the Autoride version includes the ride-height sensor mounting tab on both rear upper arms. If you're not sure which you have, check the RPO sticker in the glove box for a Z55 code.

Notes:

Hardware is included with your arms. If you ever need replacements down the road, the matching kit is available separately.
Running a lift? The 5-piece rear kit (CMP-G-800-AVA-RK5) adds the adjustable track bar to recenter the axle side-to-side.

Parts:

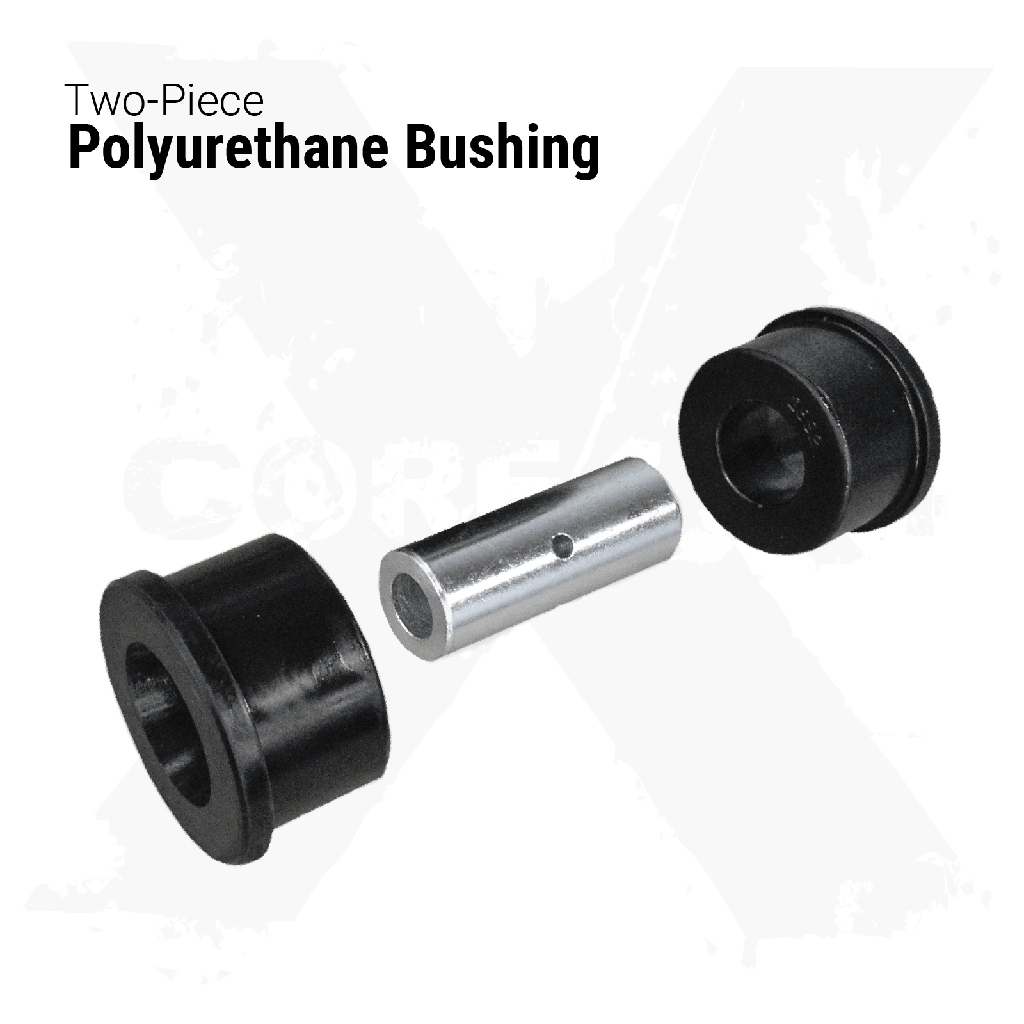

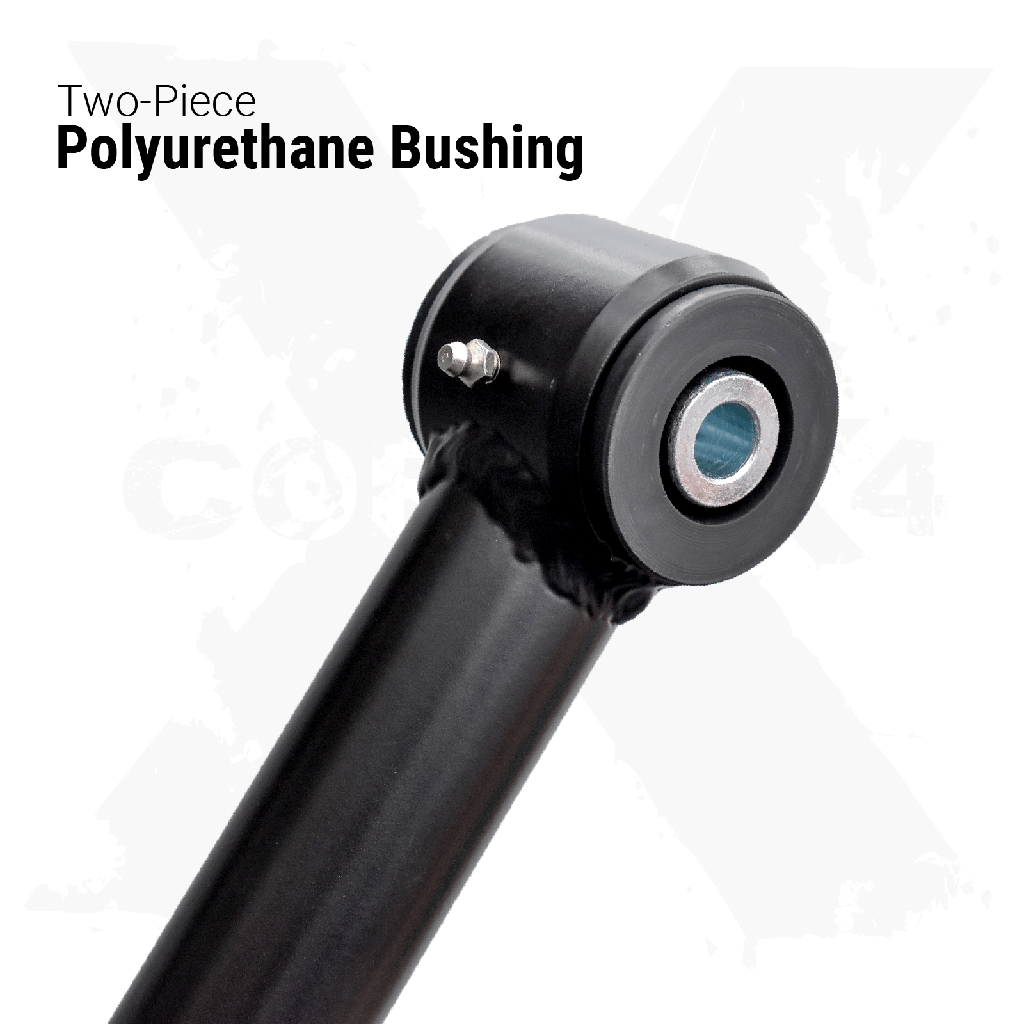

Upper poly bushing — BSH-UPBH-CB, 9/16-in. bolt (1 per upper arm, 2 for the upper pair).

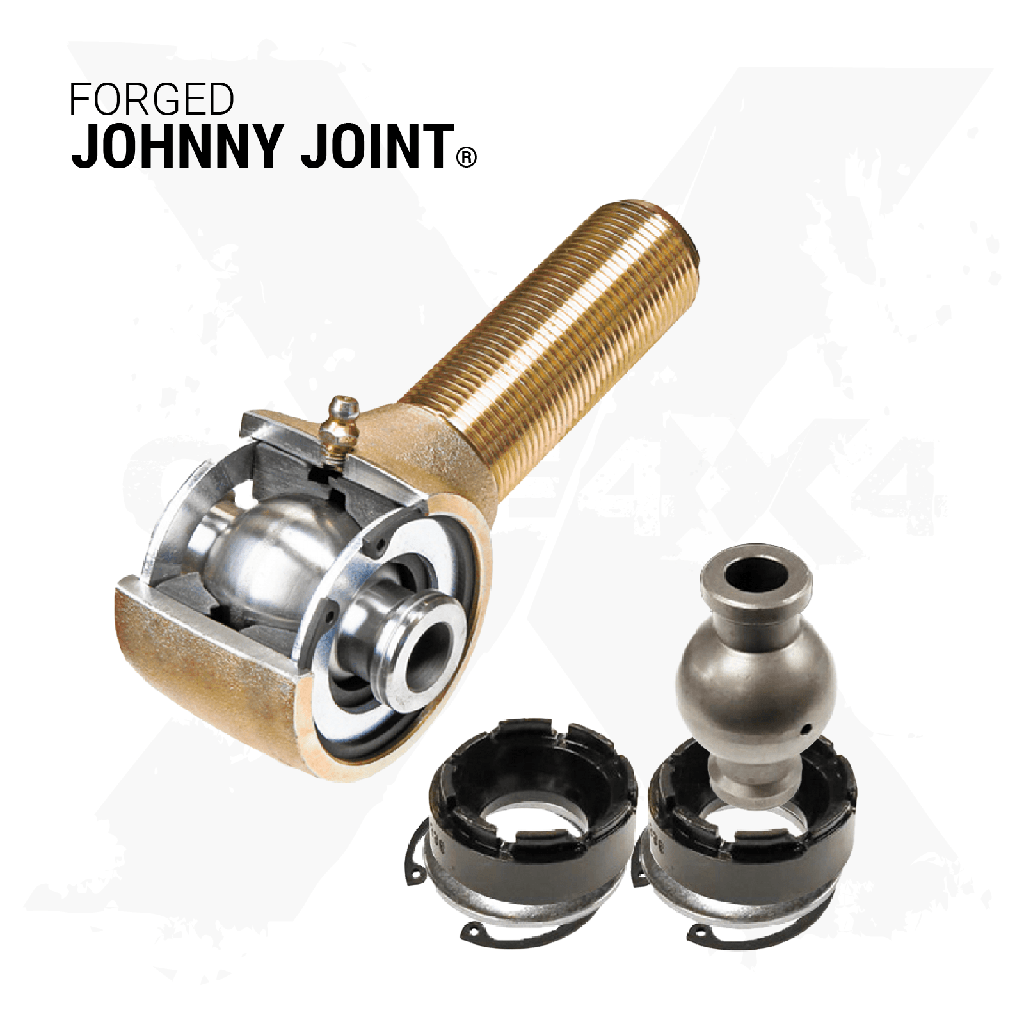

Upper forged Rock Jock Johnny Joint — CE-9112N-22 (1 per upper arm, 2 for the upper pair).
Lower poly bushing — BSH-LOBH-CB, 9/16-in. bolt (1 per lower arm, 2 for the lower pair).
Lower forged Rock Jock Johnny Joint — CE-9114 (1 per lower arm, 2 for the lower pair).
Replacement hardware kit — CMP-G-800-RS4-HWK.

Fits:

Chevy Tahoe (2000–2006)
Chevy Suburban 1500 (2000–2006)
Chevy Avalanche 1500 (2002–2006)
GMC Yukon / Yukon XL 1500 (2000–2006)
GMC Yukon Denali / XL Denali (2001–2006)
Cadillac Escalade / ESV / EXT (2002–2006)
1500-series only. Does NOT fit 2500-series HD.

Built With

See individual component specifications

Make	Model	Submodel	Years
Chevrolet	Avalanche 1500		2002 - 2006

Construction & Materials

See individual component specifications

Brand	CORE 4X4
Color	Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow
Lift Size	0" — 6" or 6"+
Series	Camp Series
Suspension Type	Standard or Autoride (Z55)

Use the vehicle selector on our website to shop by your year, make, and model. On product pages, use the kit builder to select your color, series, lift height, and any add-on options, then add to cart. If you need help, call or email our team.

Standard orders typically ship within 1–3 business days of ordering. Custom color orders take approximately 5–10 business days. Because everything is built in-house, we can turn orders quickly even for custom specifications.

You can reach our team through the contact form on our website, or browse to the Contact Us page. Our team is available to answer pre-sale and technical questions before and after your purchase.
