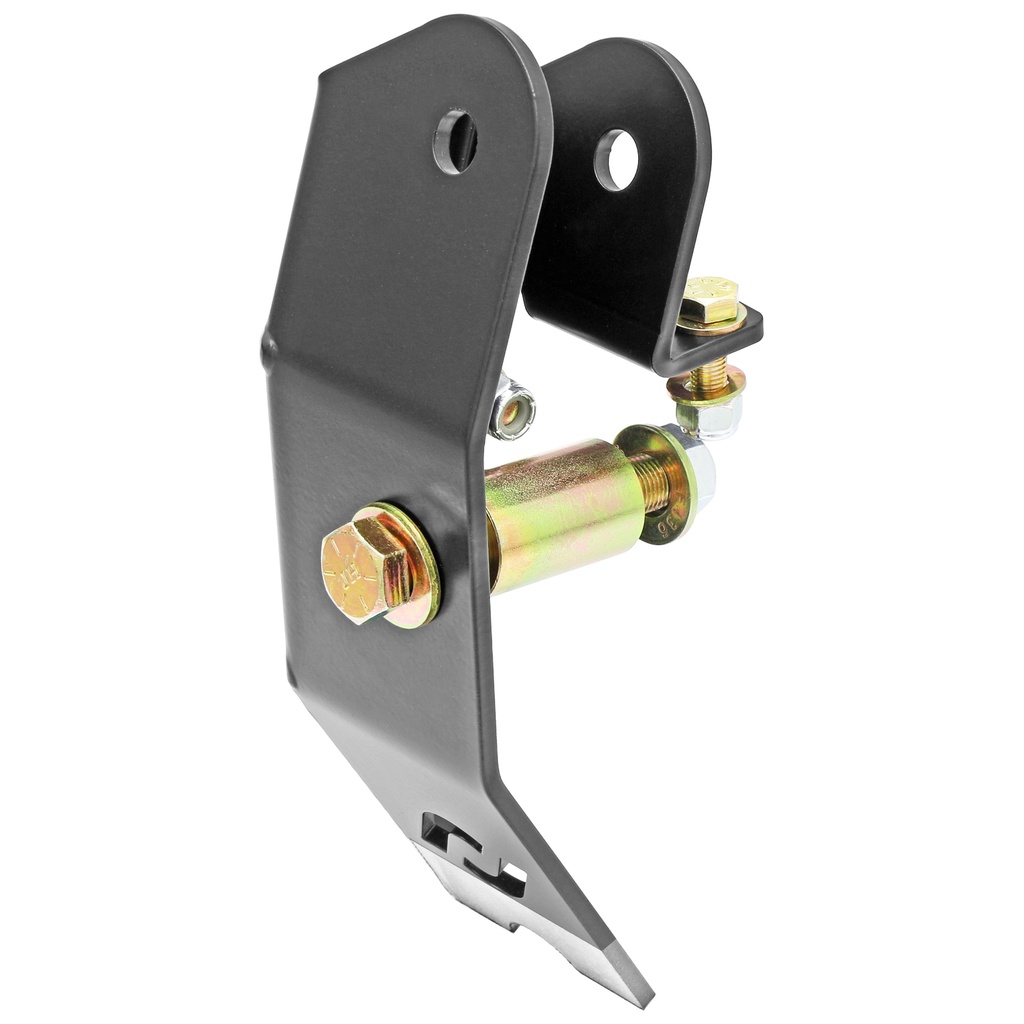

RockJock's Geometry Correction Axle Bracket Kit for the rear Trac Bar of TJ Wrangler and LJ Unlimited vehicles relocates the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point on lifted vehicles. Unlike any other TJ/LJ rear trac bar on the market, this bracket features an additional bend at the top to rotate the trac bar end back to a level position after the rear pinion angle is raise, preventing the trac bar joint in the bracket from being preloaded or prearticulated. Additionally this bend in the bracket prevents the bracket from colliding with gas tanks and gas tank skid plates. This bracket simply bolts onto the factory axle bracket and then some minor welding to anchor the bracket firmly to the axle housing is required. BracketFinished in semi-gloss black powder coat with masked off weld area for ease of installation and includes all necessary hardware for installation. Vehicles must be equipped with a minimum of a 2 1/2 in. bump stop extension in the rear.
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |
| Brand | RockJock |
