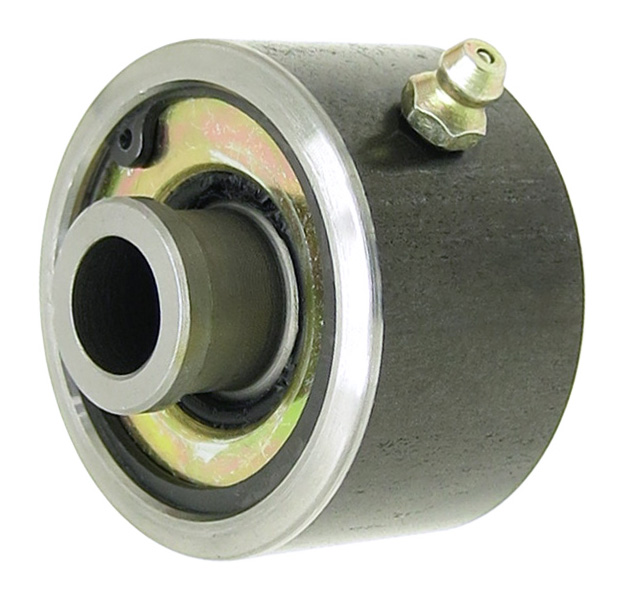

Johnny Joint Rod End, 2 in., Narrow, Weld-On, Weld-On, 1.600 in. X .562 in. Ball, Externally Greased

SKU: CE-9112NP-13

57.00 57.0 USD 57.00

57.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

RockJock's narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. narrow body and features a 1.600 in. mounting width and a .562 in. thru bolt hole.

Brand RockJock
