Johnny Joint Rod End, 2 in., Weld-On, 2 in. X .500 in. Ball, Internally Greased, Incl. Greasable Bolt

67.00 67.0 USD 67.00

67.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/24205/image_1920?unique=279331a

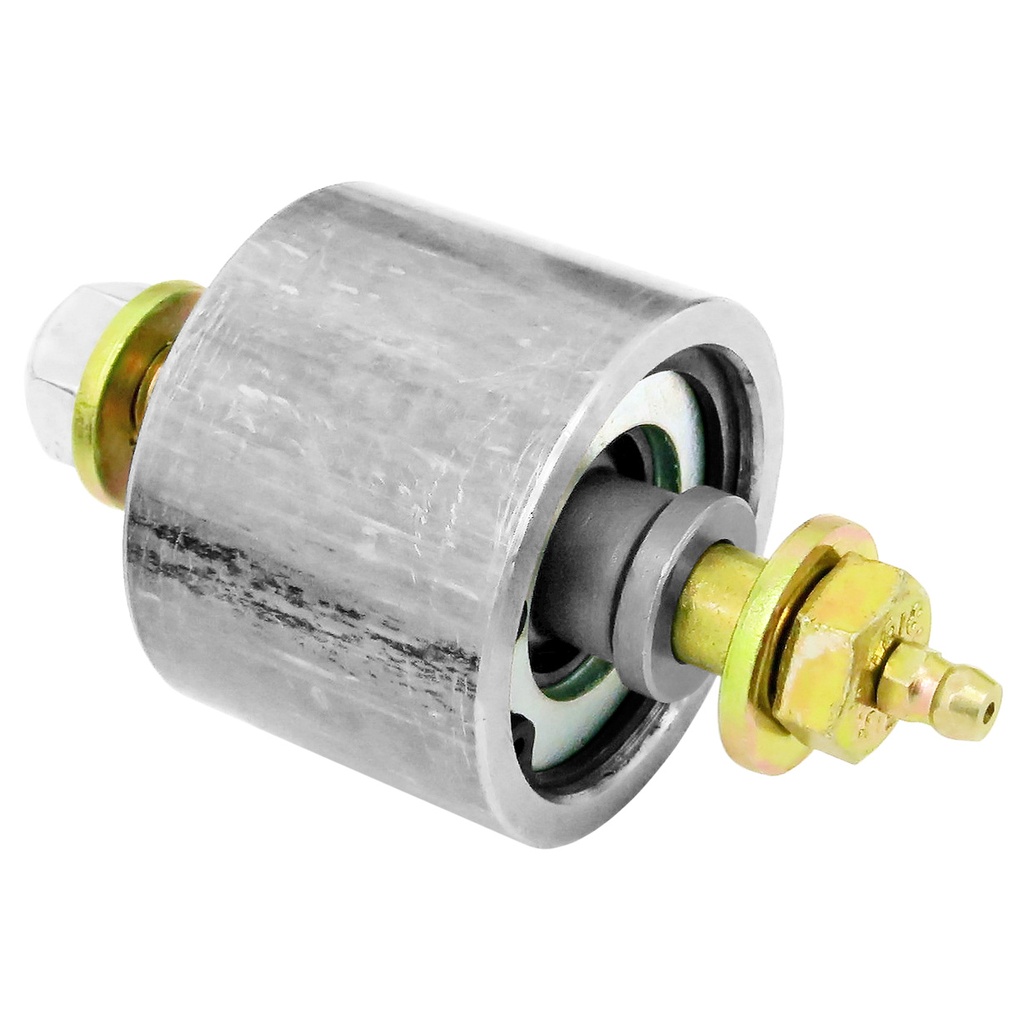

Johnny Joint Rod End, 2 in., Weld-On, 2 in. X .500 in. Ball, Internally Greased, Incl. Greasable Bolt

Johnny Joint Rod End, 2 in., Weld-On, 2 in. X .500 in. Ball, Internally Greased, Incl. Greasable Bolt
SKU: CE-9112-12

67.00 67.0 USD 67.00

67.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing. This specific joint is a 2 in. o.d. and features a 2 in. mounting width and a .500 in. thru bolt hole. Grade 8 greasable bolt with nut and washers included.

Brand RockJock
Google

Reviews of Core 4x4

See all on Google
5.0
132 reviews
5
97%
4
2%
3
0%
2
1%
1
0%
SG
Sal Giordano Sep 24, 2025
Google
I want to take the time to share my experience with Core 4x4. I have a 2004 Jeep Wrangler and was looking to upgrade some suspension parts. I went with Core 4x4 upper & lower adjustable control arms and a front adjustable track bar. Everything arrived quickly, and right out of the box I was impressed with the quality and craftsmanship. I had a few questions during installation (measurements and torque specs), and I spoke with Korby on a couple of occasions. Not only did he send me detailed instructions, but he also shared an installation video specific to the part and vehicle I was working on, something you don’t get from many companies. The control arms fit perfectly, look great, and perform exactly as I hoped. I did run into an issue with the front track bar touching the front diff. When I reached out, Korby had me send pictures and then immediately offered two solutions: his bar guy could make a different bend and send it out to me, or I could get a full refund. His response honestly blew me away. As much as I wanted to run the Core 4x4 track bar, I chose the refund. Korby sent me a prepaid shipping label right away, no hassle. My experience with Core 4x4 has been excellent. Korby was extremely understanding, communicative, and helpful every step of the way. The parts I received were high quality, and the customer service was second to none. I would absolutely recommend Core 4x4 10 out of 10 times and will be using them again. Just a great American company with awesome people who truly care about their customers. Thank you Korby, and thank you Core 4x4!
RC
Robert C May 27, 2025
Google
Fantastic products! Outstanding performance!! Absolutely the best customer service!! You will not be disappointed!
P
Paul Mar 24, 2023
Google
I've been having trouble with the track bar (on my 2nd gen Dodge) since I installed the 3rd gen Synergy adapter bracket and a 3rd gen stock bar.. oddly, they call it a '3rd gen bracket' and the stock 3rd gen bar doesn't quite fit, making contact with the bracket. I had attempted to clearance the bracket but it was still making contact and I could feel it over large bumps. I reached out to a lot of companies, but Core 4x4 offered to make a custom bar for the application with adjustability and dual Johnny joints. The first pass on it didn't work but they sent me out another passenger side end that made it fit incredibly well. This was all done solely over email/descriptions/pictures/measurements. Bar is super high quality and heavy duty, made in the US by a family owned company and carries a lifetime warranty. The customer service was responsive and superb, and the price was a lot less than I expected.
CM
Cameron Masters Mar 24, 2023
Google
Absolutely incredible family owned business. I asked to pick up my order since I’m local and they came in on a weekend to accommodate. Had to make some adjustments to parts and took the time to make sure it was perfect. Parts are incredible quality. If you have a Jeep, do not hesitate to support this local business.
B
Ben Mar 24, 2021
Google
2001 Wrangler TJ- i have purchased all front/rear upper/lower control arms. Front track bar and rear track bar. Quality is excellent and extremely durable you can tell its built to last. Bent a bolt on the front track bar and called and spoke with Spence. He immediately sent me out new hardware plus some! Product is amazing but what really separates companies apart is their service and these guys are second to none. Thank you all!
JS
Jon Stempien May 27, 2025
Google
Big thanks to Corby at core 4 x 4 outstanding customer service I like to thank them or 4 x 4 for helping me Well-made product in the United States recommend core 4 x 4 for all jeep Owners that like the four wheel
AL
Aaron Lake Apr 27, 2025
Google
Korby was a great help with getting me a set of leaf springs for my Cherokee. Great customer service and an awesome product all made in the USA. Proud to support and rock their parts on my vehicle. 👍 …
JG
James Griffin Jul 26, 2025
Google
Customer service is top notch. They answered all of my questions and got me my tracking number for my packages. I just received both of them and the quality is next level. You guys are truly awesome.
Review photo 1
AP
Ajay Paynter Mar 9, 2026
Google
Great company, who worked with me on shipping parts, to arrive in time for a show, when I explained my concern of possibly not getting the control arms in time. Quality is amazing on the part, affordable price for what you get, and the powdercoat is top notch, not a single issue with this product, would buy again.
AL
Andrew LaFave May 27, 2025
Google
I am really please with this company. Great product, i had an issue with a couple of the jonnhy joint bushings, they explained what had caused it and how to fix it. Within hrs of receiving my inquiry, i had heard back with the required info I needed. A couple hrs later problem was fixed and ready for the trail again. They care about heir product and their customers. Thanks crew, you rock

Specifications

Brand RockJock
