Johnny Joint Rod End, 3 in., Weld-On, Chromoly Barrel, 3.250 In. X .750 in. Ball, Externally Greased

145.00 145.0 USD 145.00

145.00

Not Available For Sale

See financing options →

Fitment guarantee Ships from Orem, UT 4–8 hr install
ADD TO CART →
https://core4x4.com/web/image/product.template/24203/image_1920?unique=279331a

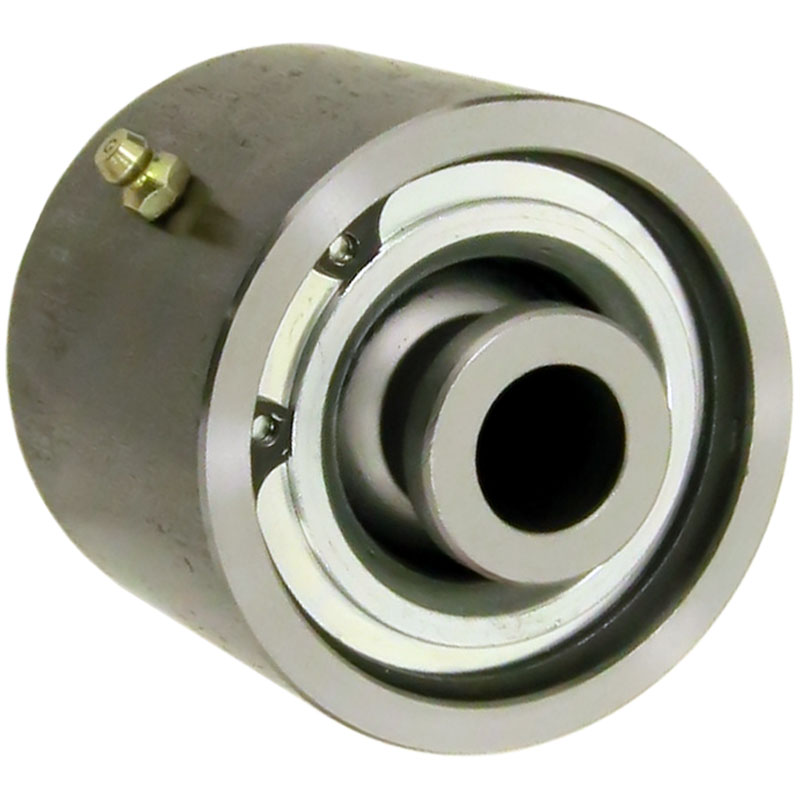

Johnny Joint Rod End, 3 in., Weld-On, Chromoly Barrel, 3.250 In. X .750 in. Ball, Externally Greased

Johnny Joint Rod End, 3 in., Weld-On, Chromoly Barrel, 3.250 In. X .750 in. Ball, Externally Greased
SKU: CE-9111

145.00 145.0 USD 145.00

145.00

Not Available For Sale

  • Brand

Select Color to see price and add to cart.

Lifetime warranty Made in USA

Made in USA Orem, Utah
Lifetime Guarantee Unconditional
10 Colors In-house powder coat
Fully Adjustable 0-6" of lift
3 X-Series Options Only Core 4x4

RockJock's weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring. The outer shell is weldable .180 in. wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is a 3 in. o.d. and features a 3.250 in. mounting width and a .750 in. thru bolt hole.

Brand RockJock
