Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4
The Special Sauce:

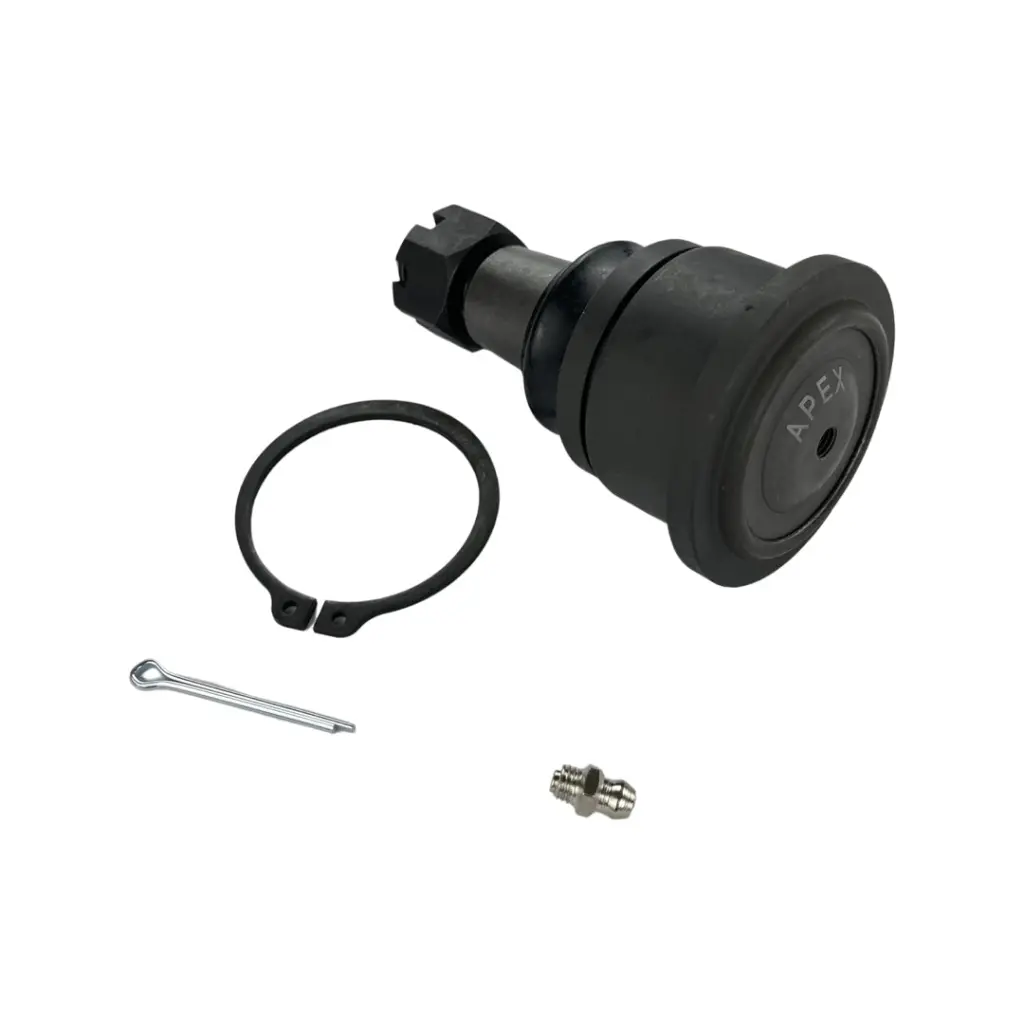

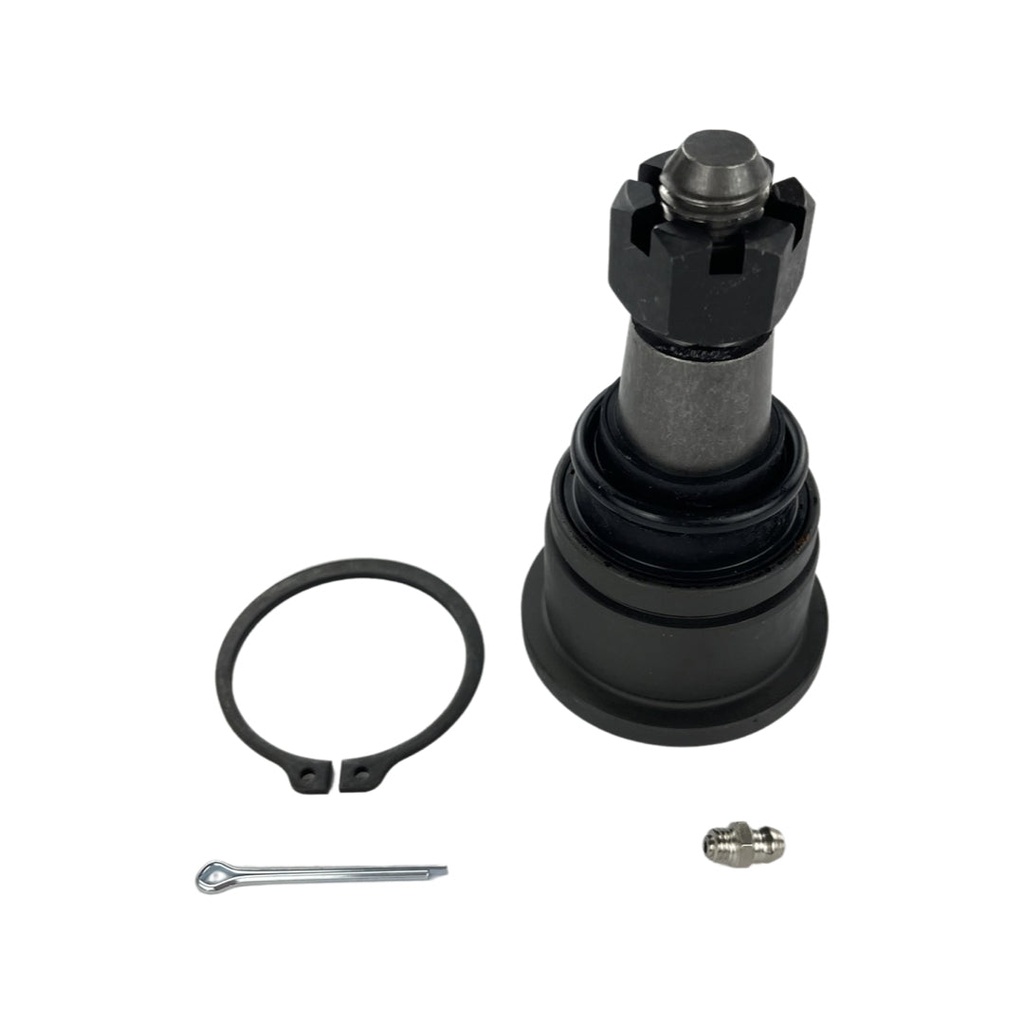

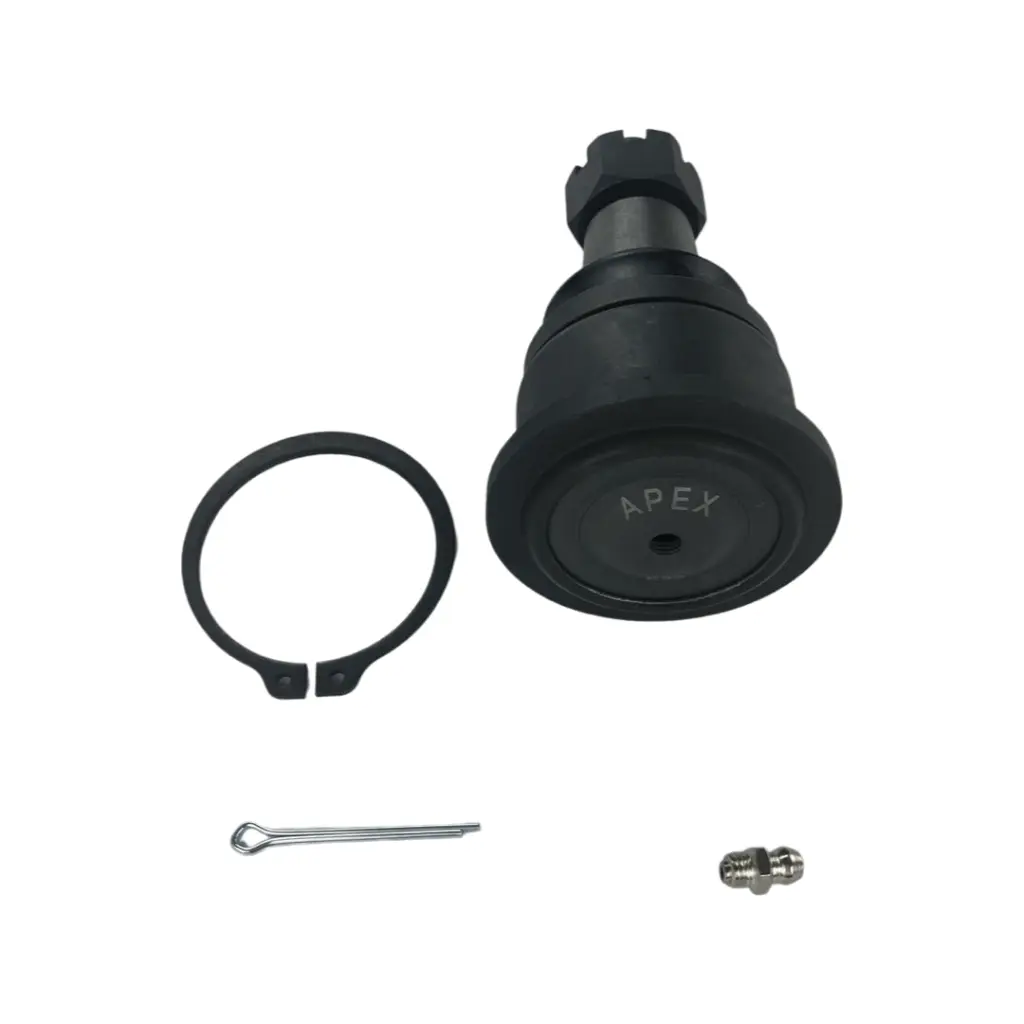

HOUSING
- SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
- CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
- SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
- Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
- Polished Ball Studs: Built like an anti-friction bearing with extremely precise tolerances.
- Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
- Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
- Rugged Metal to Metal Bearing
BOOTS
- CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
- Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants and easier install.
- Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.
FINISH
- E-Coating: Extremely durable electrochemical finishing process
HARDWARE
- Grade 8 - Class 10.9 Hardware: Superior tensile strength.
- Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
- Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
- Greaseable: Because it should be.
- Pre-Greased: Just in case you forget, we have you covered.
- Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
- Zerk Fittings: Included for every application.
| Brand | Apex Chassis |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
M
Matt
Mar 23, 2024
★
★
★
★
★
The best products on the market. 95% of my xj is core 4x4 products
MM
Mike Martinez
Aug 25, 2025
★
★
★
★
★
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly!
Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
A
Adam
Oct 24, 2025
★
★
★
★
★
I couldn't have been more excited for the initial unboxing of these new Core 4x4 UCA's!
They appear to be so well built and just a true quality product.
Installation was a breeze and the initial testing with the forklift appears to have given me some additional flex with less binding on the rest of the components now that the geometry is back properly aligned.
Time will tell how they hold up on my near future off-road adventures but I don't have any doubt that they are up to the task!
J
Justin
Mar 24, 2021
★
★
★
★
★
Small business, family owned, made in the USA, lifetime warranty. Purchased Tier 3 control arms and rear track bar for a 2006 Jeep LJ. Simple website and easy to contact over phone and email. I had some technical questions and they were happy to answer them. They allow local pickup and were built to order same week. The order was wrapped and ready when I walked in and even gave a tour of the shop. They abrasive blast all raw materials to achieve a better surface profile for powdercoat to adhere and create a smooth, durable finish. I also noticed several CNC machines and a robotic welder they use for all their parts. A small outfit with a robotic welder? Their concern for quality is obvious and it shows in the parts they make. Very impressed. Happy to do business with these guys.
HK
Harold Kruder
Mar 23, 2024
★
★
★
★
★
I needed some parts and had to replace 1 lower control arm and their customer service is great. Helped with answering my questions and got parts shipped quickly.
JW
Jonathan Word
Aug 25, 2025
★
★
★
★
★
Beefy parts made and painted well, very fair pricing for what you get, and fantastic customer service to boot. Easily my favorite place to get suspension parts.
MN
Mike Nielsen
Nov 23, 2025
★
★
★
★
★
The customer service is first class. I had an issue with a track bar I installed on my F350. I don’t have any other Core 4x4 parts yet, but with the way I was treated, I know their parts are well done, because they went above and beyond to make sure I was made whole. They wouldn’t be in business if they had to take care of a lot of people like they took care of me. Will definitely be back when it’s time to build the Jeep!
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
EG
Erica Grissom
May 27, 2025
★
★
★
★
★
First off, I wish I knew about them sooner. The customer service is top tier. The response time is about 30 min no waiting 1-3 days to get a response. The parts are heavy-duty and look amazing. The packaging is perfect, I can't wait to hit some trails. Thanks Core4x4
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Apex Chassis |
