Collapsed Length (in): 14.98
Extended Length (in): 24.63
Stroke/travel Length (in): 9.63
Lower Mount Type: Bar Pin
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows

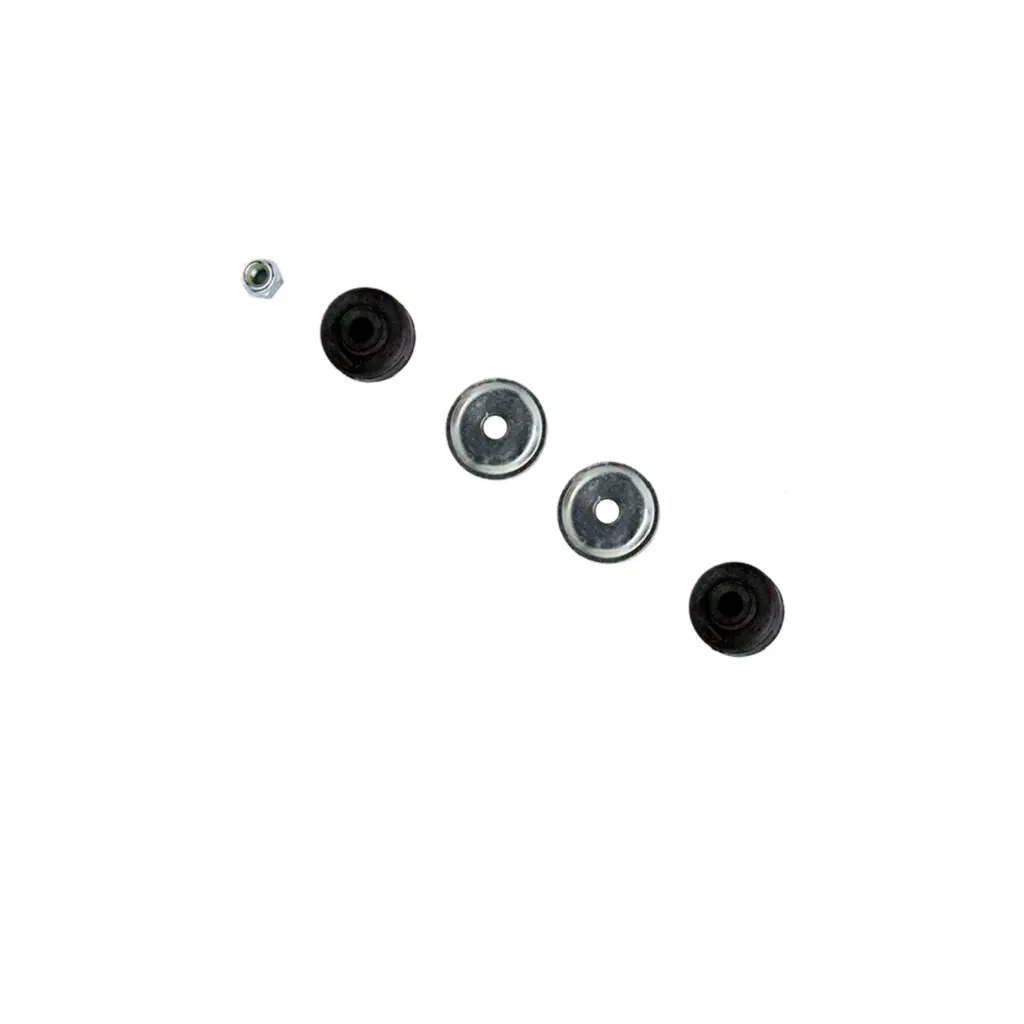

Replacement Mounting Kit: B4-KT1-Z097A00
Spring Seat Included: No
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984 - 2001 | |
| Jeep | Comanche | 1986 - 1992 | |
| Jeep | Grand Cherokee | 1993 - 1998 | |
| Jeep | Grand Cherokee | 1999 - 2004 |
| Vehicle | Jeep Cherokee XJ (84–01) or Jeep Comanche MJ (86–92) or Jeep Grand Cherokee ZJ (93–98) or Jeep Grand Cherokee WJ (99–04) |
| Brand | Bilstein |
