Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

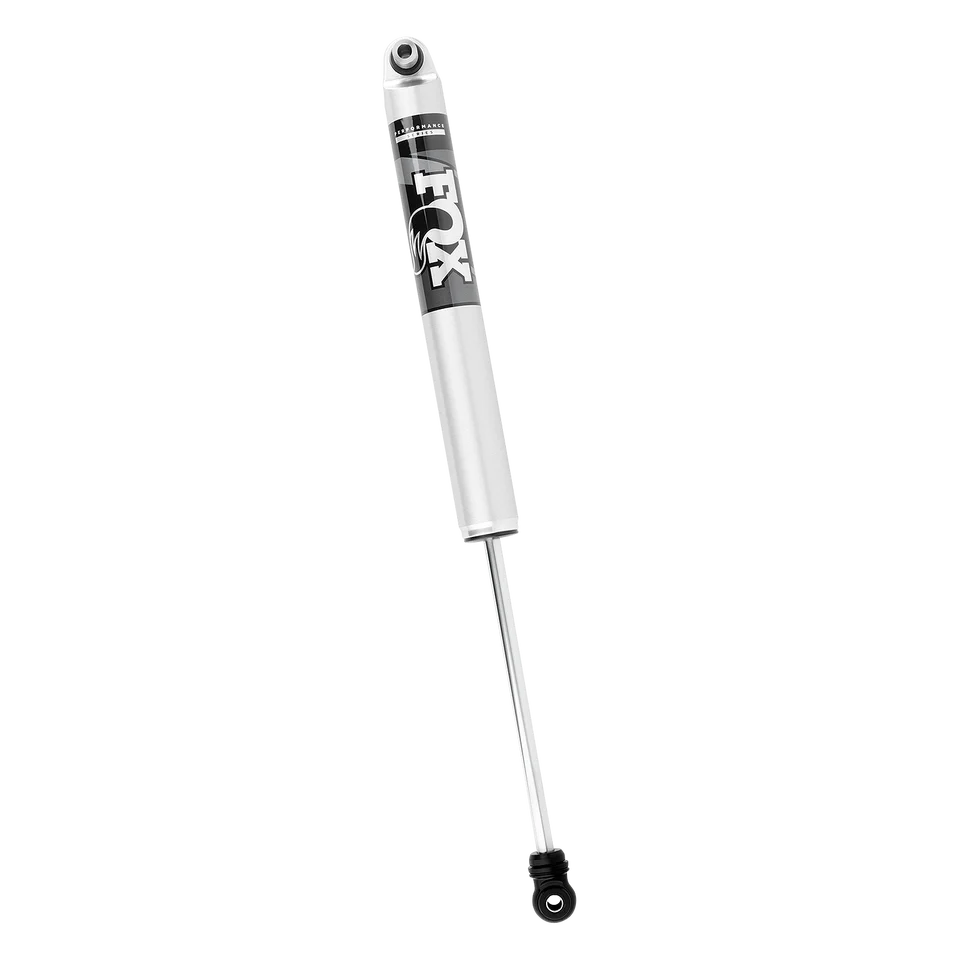

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 30.62
- Compressed - 19
- Travel - 11.62
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
JT
Jay Taylor
May 27, 2025
★
★
★
★
★
Had a worn out set of rear upper control arms on my TJ. These were old rubicon express long arms. can’t buy replacements and no one makes a direct fit replacement.
Talked with Korby at core off road sent some measurements and photos and a week later new arms showed up. Packaging was perfect fit was perfect.
Would highly recommend giving these guys a call.
MB
Melody Baker
Jan 22, 2026
★
★
★
★
★
I ordered a part for my 03 Jeep TJ and all I can say is wow! Korby at Core 4x4 is a total rockstar!! There was a glitch with my payment and within minutes, Korby reached out to me to get it fixed, then sent my receipt with the tracking number. I lost the number and reached out to him during the Holidays and got a rapid response with the number again. I can’t say enough about the customer service and the quality of parts. Thank you!!
JG
James Griffin
Jul 26, 2025
★
★
★
★
★
Customer service is top notch. They answered all of my questions and got me my tracking number for my packages. I just received both of them and the quality is next level. You guys are truly awesome.
JM
Jay Miller
Jul 26, 2025
★
★
★
★
★
I purchased a upper and lower set of control arms from core 4x4 they came early then expected and seem to be very nice quality I ran into a complication installing them and emailed them my question I was expecting to get the response maybe the next day because it was after hours I got a response in about a few minutes which allowed me to finish the project that day I super appreciate that, the products are good strong lifetime warranty and their customer service is top notch
MM
MIKE (Mike the Mechanic)
Jul 26, 2025
★
★
★
★
★
Amazing company and customer service!!!! I messed up on my order and the fixed it immediately. Would definitely recommend them. Can't wait to hit the trails with their product.
PM
Paul Melancon
Aug 25, 2025
★
★
★
★
★
Ordered a control arm and track bar kit for my WJ from Core 4x4 on Monday 7/28 and received it today, Friday 8/1. Im not a state or two away, im in CT aka the other side of the country. Communication is phenominal, emails were responded too in an hour or less. Parts arrived well packed, not damaged, and are great quality for my needs. There arent many companies left that service customers as well as Core 4x4 and i wont hesitate to check them out again if i need something else. Well done!
BW
Brian Wadsworth
Jun 26, 2025
★
★
★
★
★
Amazing product! Shipping was quick, packaging was great and support was outstanding!!
CM
Craig MacIver
May 27, 2025
★
★
★
★
★
Got the CAMP version of adjustable control arms and track bars for our 03 TJ with a 3” lift and 33x10.5 KO 2’s.
Super beefy bars, great fit and adjustability.
Friendly advice and support from Korby at CORE 4X4. Good follow up as well.
The ride quality is great as well as the handling. I think it all looks pretty good as well.
RT
Ruby Timm
Apr 27, 2025
★
★
★
★
★
Bought a new 2019 Ram 1500. Had bad rear wheel hop since new, got all four core 4x4 control arms and it fixed the issue. Thanks
MV
Mr. V
Mar 24, 2021
★
★
★
★
★
Good quality parts, much stronger than stock
