Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

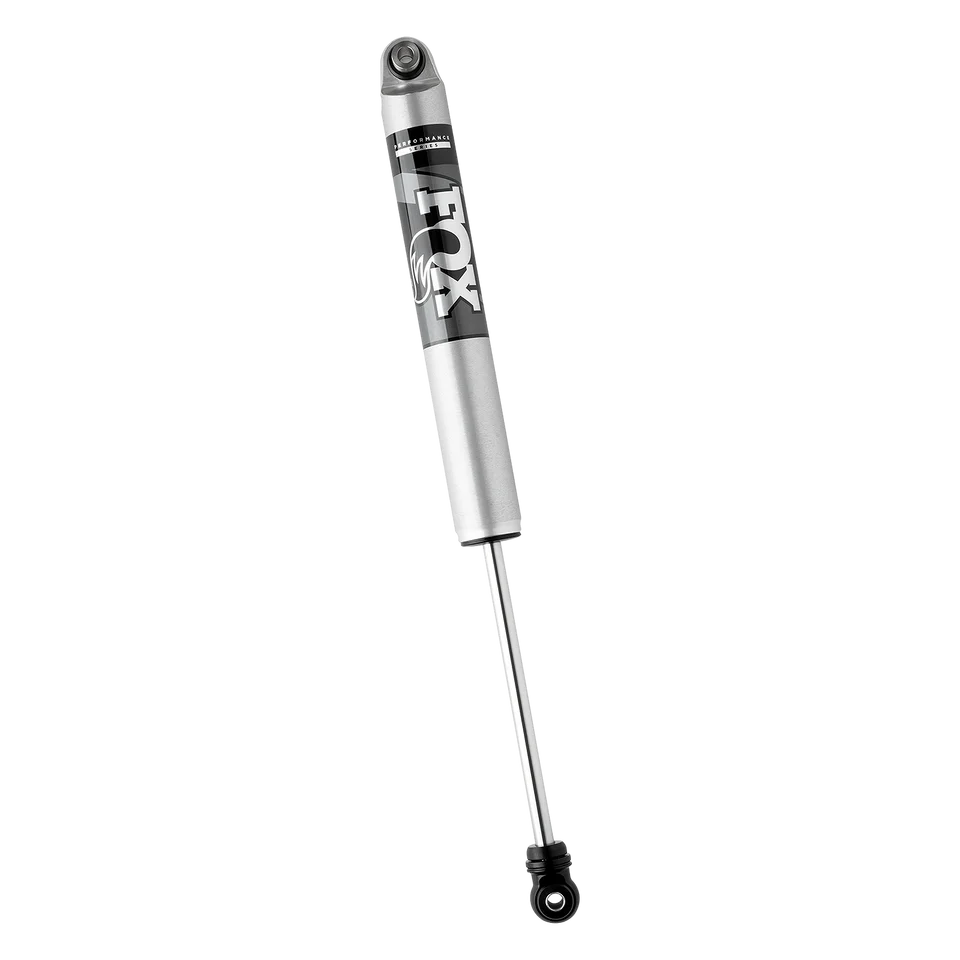

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 29.62
- Compressed - 18.5
- Travel - 11.12
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
MN
Mike Nielsen
Nov 23, 2025
★
★
★
★
★
The customer service is first class. I had an issue with a track bar I installed on my F350. I don’t have any other Core 4x4 parts yet, but with the way I was treated, I know their parts are well done, because they went above and beyond to make sure I was made whole. They wouldn’t be in business if they had to take care of a lot of people like they took care of me. Will definitely be back when it’s time to build the Jeep!
CT
Canon TeSelle
Jun 26, 2025
★
★
★
★
★
Great Experience. I wanted to make changes to my order and Korby was more than willing to work with me to get everything corrected. Hope to deal with these guys again in the future.
CD
Christopher Dami
Jun 26, 2025
★
★
★
★
★
2022 I ordered a 2023 Jeep Wrangler Rubicon in High Velocity yellow. Without any hesitation I knew I was going with Core 4x4’s 16pc Camp series suspension, powder coated in yellow. Compliments were a given from any and everyone that looked under my jeep. So beefy, I may have left some yellow paint on the rocks from Maine to Florida, but no bends or breaks. Customer service has been perfect each and every time I have needed something. Their warranty is top notch! Their communication is also wonderful. Might upgrade to the Crawl Series control arms where the Johnny joints are on both sides. Great all around company and a great team to troubleshoot your issue and come to a conclusion. Nothing bad to say about this company. Just love this suspension.
RT
Ruby Timm
Apr 27, 2025
★
★
★
★
★
Bought a new 2019 Ram 1500. Had bad rear wheel hop since new, got all four core 4x4 control arms and it fixed the issue. Thanks
DD
Dmitriy D
May 27, 2025
★
★
★
★
★
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast.
Thank you so much. I wish you will have something new for my car.
AL
Aaron Lake
Apr 27, 2025
★
★
★
★
★
Korby was a great help with getting me a set of leaf springs for my Cherokee. Great customer service and an awesome product all made in the USA. Proud to support and rock their parts on my vehicle. 👍 …
MH
Matthew Handy
Sep 24, 2025
★
★
★
★
★
Ran into an issue with a part that I ordered. Got ahold of them explained to them the issue I was having and they jumped in and got the issue fixed. Hands down the best customer service I have ever dealt with. The parts are hands down amazing. Highly recommend.
MD
Mark DiGrappa
Apr 27, 2025
★
★
★
★
★
First off: Korby, the gentleman that helped me decide on which kit to go with is EASILY the nicest, and most patient person I’ve dealt with, when ordering parts for this build. Second: the quality of the product is INSANE! These parts are so nicely fabricated, then powder coated for extra longevity, and they even offer an aluminum upgrade in some cases (which I went with, to save weight). Having said all of this, the most impressive thing was the lead time. These parts are build to order, and I literally ordered my suspension one week ago, today! Yes, they built, powder coated, packaged, shipped my suspension components (RAM 1500 Track rear trailing arm full set in 7075 aluminum, and front upper control arms), AND they arrived, all within a week! Granted, that I’m only one state away, but WOW!!! One week?! Amazing! So, in sort: excellent products, which arrived excellently packaged (no damage, an boxes not over-stuffed with heavy suspension parts; three boxes total, as opposed to one super heavy one…my back thanks you), super quickly, and customer service that ANY business would be envious of….so, if you’re in the market, absolutely go with Core 4X4!
JS
Jeffrey Shafer
Jan 22, 2026
★
★
★
★
★
Exceptional customer service. All my questions were asked in a timely manner and parts were replaced when an error occured. I encourage people to make purchases due to their exceptional quality products, but also because of their customer service. Will make additional purchases in the future.
GM
George Mar
Sep 24, 2025
★
★
★
★
★
Great company. Highly satisfied with Core 4x4 customer service. Had some bushings fall apart around 600 miles from home. Called and spoke with Korby Linscomb on Thursday, late in the afternoon. He was able to get my bushings sent across country overnight at a very reasonable rate. Had me up and running by Friday evening with enough time to enjoy the Great Smoky Mountain Jeep Invasion. Thanks Guys!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
