Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

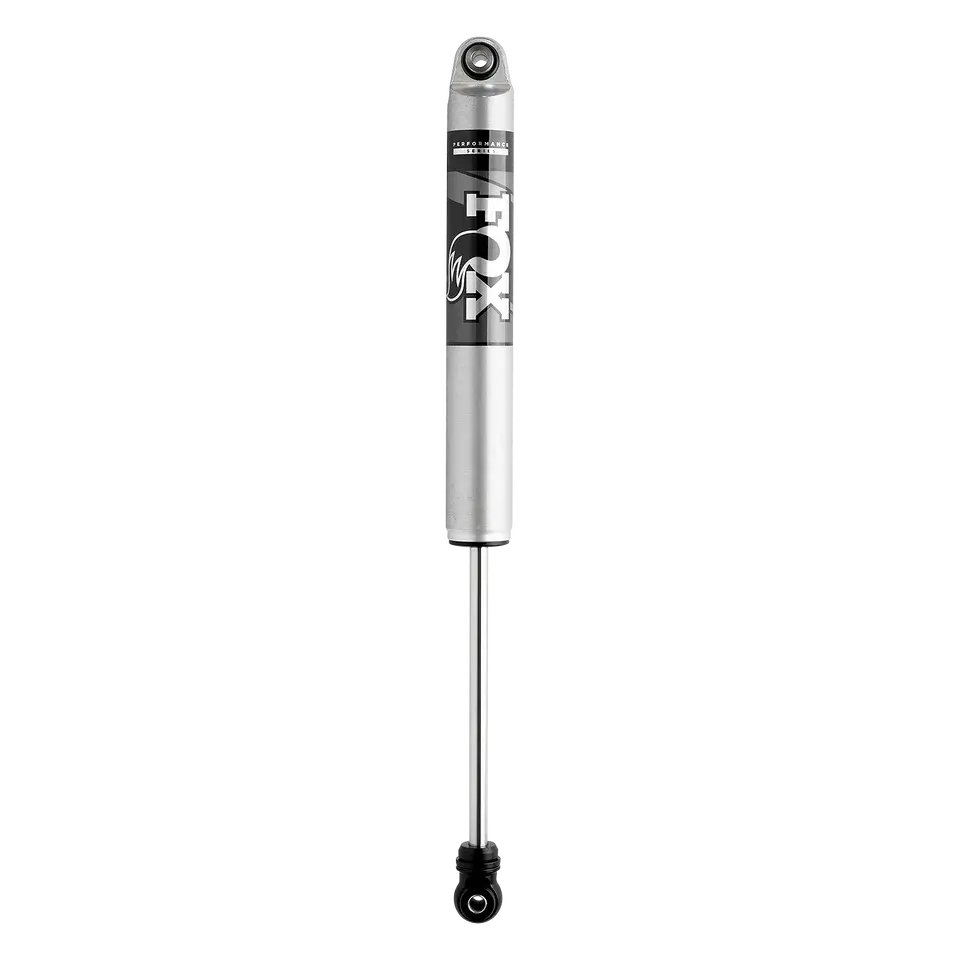

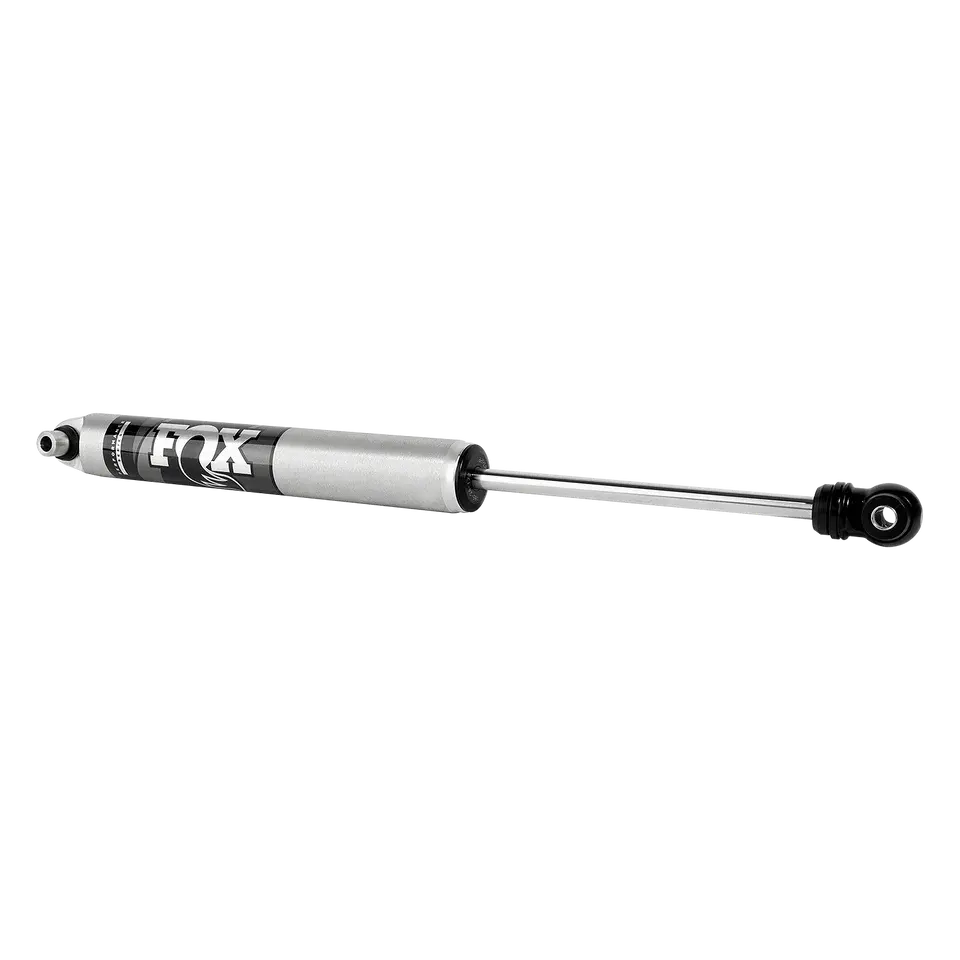

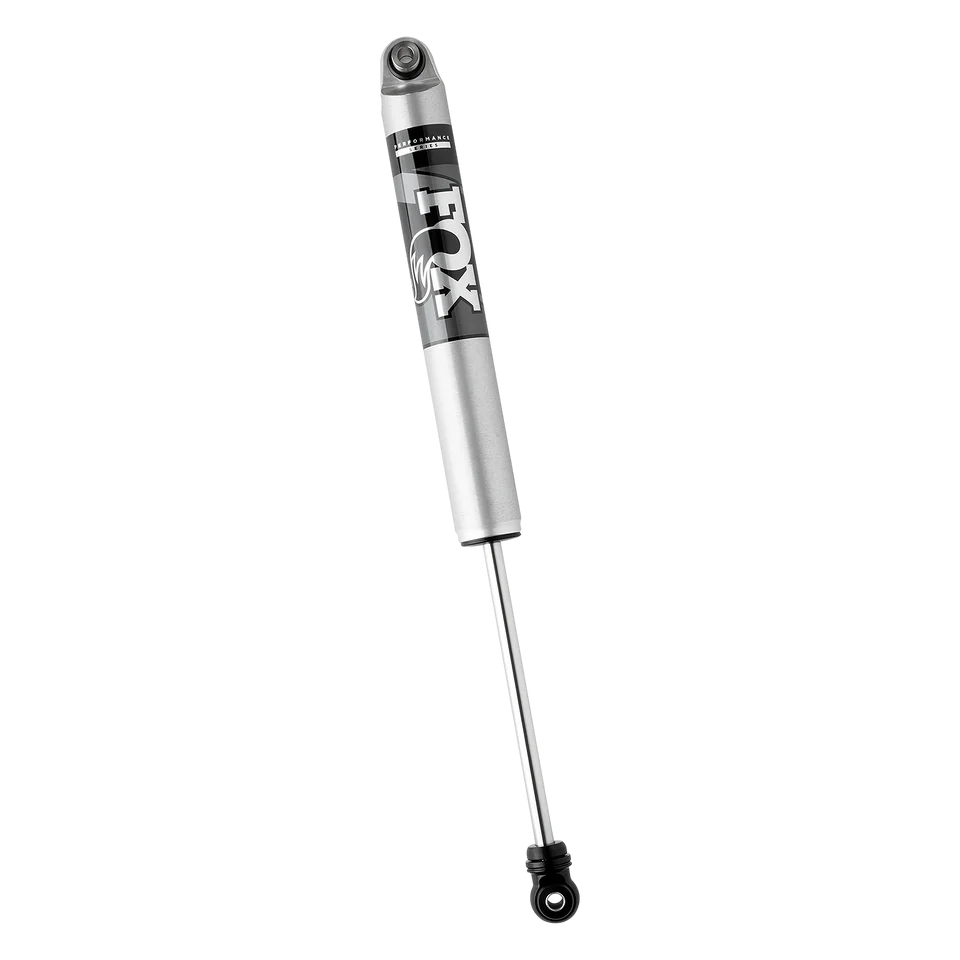

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 26.92
- Compressed - 16.8
- Travel - 10.12
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
D
DSI
Jul 26, 2025
★
★
★
★
★
Great products with excellent customer service after the sale
RC
Robert C
May 27, 2025
★
★
★
★
★
Fantastic products! Outstanding performance!! Absolutely the best customer service!! You will not be disappointed!
N
Nick
Sep 24, 2025
★
★
★
★
★
I have a 2016 RAM 1500 Crew Cab and I replaced the rear upper and lower control arms also the pan hard track bar and also the sway bar and links for the rear with all I had the articulating bushings. The vehicle now has no body role. They are absolutely incredible if you get the control arms you gotta get the CORE 4 x 4sway bar end links don’t don’t try and be cheap and get Moog or something else you got to get articulating bushings get the core 4 x 4 ones they are the best. My truck drives now through the canyons like a BMW. I have Fox high-performance shocks on there as well with all the CORE 4 x 4 suspension parts and they are amazing. Well worth the money I would highly recommend anybody thinking about CORE 4 x 4 go with CORE 4X4 and if you can go with their articulating bushings, they’re unbelievable drives better now than my Escalades. Well planted no body role and smooth on the Highway unbelievable the difference they all made!!
THANKS AGAIN CORE 4x4!!!!
MT
Mike T
Nov 23, 2025
★
★
★
★
★
Korby and the rest of the team at Core 4x4 know there stuff and answered my question in a timely manner. They even were able to quick ship a re-build kit for me so I could get my truck back on the road- Thanks!
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
BB
Brayden Brockey
Mar 23, 2024
★
★
★
★
★
Got a set of upper control arms for my xj, really impressed with the quality
AP
Ajay Paynter
Mar 9, 2026
★
★
★
★
★
Great company, who worked with me on shipping parts, to arrive in time for a show, when I explained my concern of possibly not getting the control arms in time. Quality is amazing on the part, affordable price for what you get, and the powdercoat is top notch, not a single issue with this product, would buy again.
CW
Cody Whitlock
Sep 24, 2025
★
★
★
★
★
10/10 overall experience, shipping, customer service, and such a great product!
JT
Jay Taylor
May 27, 2025
★
★
★
★
★
Had a worn out set of rear upper control arms on my TJ. These were old rubicon express long arms. can’t buy replacements and no one makes a direct fit replacement.
Talked with Korby at core off road sent some measurements and photos and a week later new arms showed up. Packaging was perfect fit was perfect.
Would highly recommend giving these guys a call.
D
David
Nov 23, 2025
★
★
★
★
★
First of I just want to say Great customer service korby Has helped me from the start and has not let me down! Reached out to him again today and he was able to warranty some parts out for me.
As far as the quality of the parts.. excellent! The build quality is great. I can definitely tell a
Difference from the cheap oem rear control arms to these and the pan hard bar.
Color, From what I can tell it’s super durable been through a few mud holes on top of the daily road grime and after a quick wipe they still pop!
Overall I recommend. Customer service is everything for me and it’s definitely there at Core 4x4.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
