Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

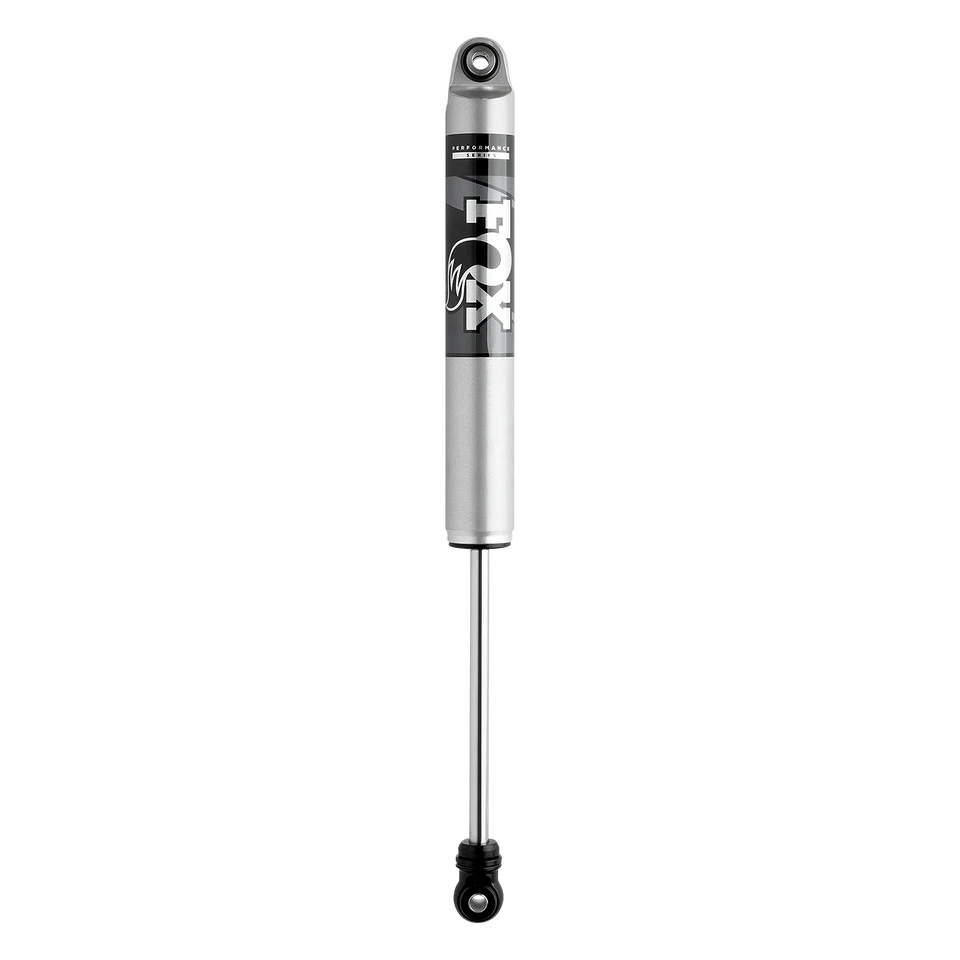

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 25.92
- Compressed - 16.3
- Travel - 9.62
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Gladiator | 2020 - Present | |
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Gladiator JT (20–Present) or Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
RR
Ryan Rogers
Aug 25, 2025
★
★
★
★
★
I purchased a set of the Cruiser Series control arms for my Jeep Jk based on postive reviews from different Jeep Facebook pages. Ordered and 2 days later realized they had the very same exact arms on sale in the overstock section. Called them up and they refunded me the savings from my original purchase. Amazing, honest service. Can't wait to get them installed. Keep up the good work guys.
EL
Eric Labrum
May 27, 2025
★
★
★
★
★
Best customer service I have ever experienced. They are my go to source do to quality and service
CD
Christopher Dami
Jun 26, 2025
★
★
★
★
★
2022 I ordered a 2023 Jeep Wrangler Rubicon in High Velocity yellow. Without any hesitation I knew I was going with Core 4x4’s 16pc Camp series suspension, powder coated in yellow. Compliments were a given from any and everyone that looked under my jeep. So beefy, I may have left some yellow paint on the rocks from Maine to Florida, but no bends or breaks. Customer service has been perfect each and every time I have needed something. Their warranty is top notch! Their communication is also wonderful. Might upgrade to the Crawl Series control arms where the Johnny joints are on both sides. Great all around company and a great team to troubleshoot your issue and come to a conclusion. Nothing bad to say about this company. Just love this suspension.
CM
Craig MacIver
May 27, 2025
★
★
★
★
★
Got the CAMP version of adjustable control arms and track bars for our 03 TJ with a 3” lift and 33x10.5 KO 2’s.
Super beefy bars, great fit and adjustability.
Friendly advice and support from Korby at CORE 4X4. Good follow up as well.
The ride quality is great as well as the handling. I think it all looks pretty good as well.
D
Don
Jul 26, 2025
★
★
★
★
★
Great shop, great parts and great service. You want to buy off this company and company’s like this!!!! Wish we had more companies as good as this one!! Thank you
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
8
89Patriot
Jan 22, 2026
★
★
★
★
★
Great company! I have used there products consistently with no complaints with quality you can see and feel. From my experience, their customer service is also amazing. Core 4x4 has no issues standing behind their already amazing products and will quickly and professionally solve issues may they arise. I will continue to be a customer.
BC
Brad C
Mar 24, 2021
★
★
★
★
★
Outstanding experience! I asked Core to build me a set of custom control arms that were larger/heavier than they normally build. They gladly accepted the challenge and turned out an expertly crafted and super strong product ahead of schedule. Fit and finish are excellent. Spence and Cameron were a pleasure to work with every step of the way. And all of this for a very reasonable price. I highly recommend these guys!
EA
Eric Ahonen
Mar 24, 2021
★
★
★
★
★
Awesome control arms! My mechanic said “ your Jeep is pretty much bulletproof now.” And I just got the tier 1 arms! The people at the core 4x4 shop were really nice too. They were running behind on shipping, (which is understandable) so I decided to go pick it up because it was only an hour drive. They gave me a free $60 hardware kit for the inconvenience. Thanks core 4x4! You guys are awesome!!
RH
Rex Hodges
Jun 26, 2025
★
★
★
★
★
After ordering an upper and lower adjustable control arm kit manufactured by CORE 4X4 from a jeep parts distributor who's intials are E.T., they came with 3 of the threaded ends missing. After over 2 months of phone calls and emails to this E.T. company nothing was resolved. I finally decided to call CORE 4X4 myself and tell them my dilemma. I spoke with a very personable and professional gentleman named Korby, who is one of CORE 4X4's representatives, after a brief discussion of what I went thru he simply asked me for a picture and some measurements and the items I was missing and asked if I could cover ONLY the cost of shipping and I had my missing parts in exactly 1 weeks time. This company not only builds all it's parts in the U.S.A., they stand behind their products with great customer service and life time warranty. My experience with this company and their Rep Korby was fantastic. I would definitely recommend CORE 4X4 to anyone who needs parts for any 4x4 projects. You just can't beat their quality and service.
Rex Hodges
Valparaiso, Indiana
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Gladiator JT (20–Present), Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
