Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

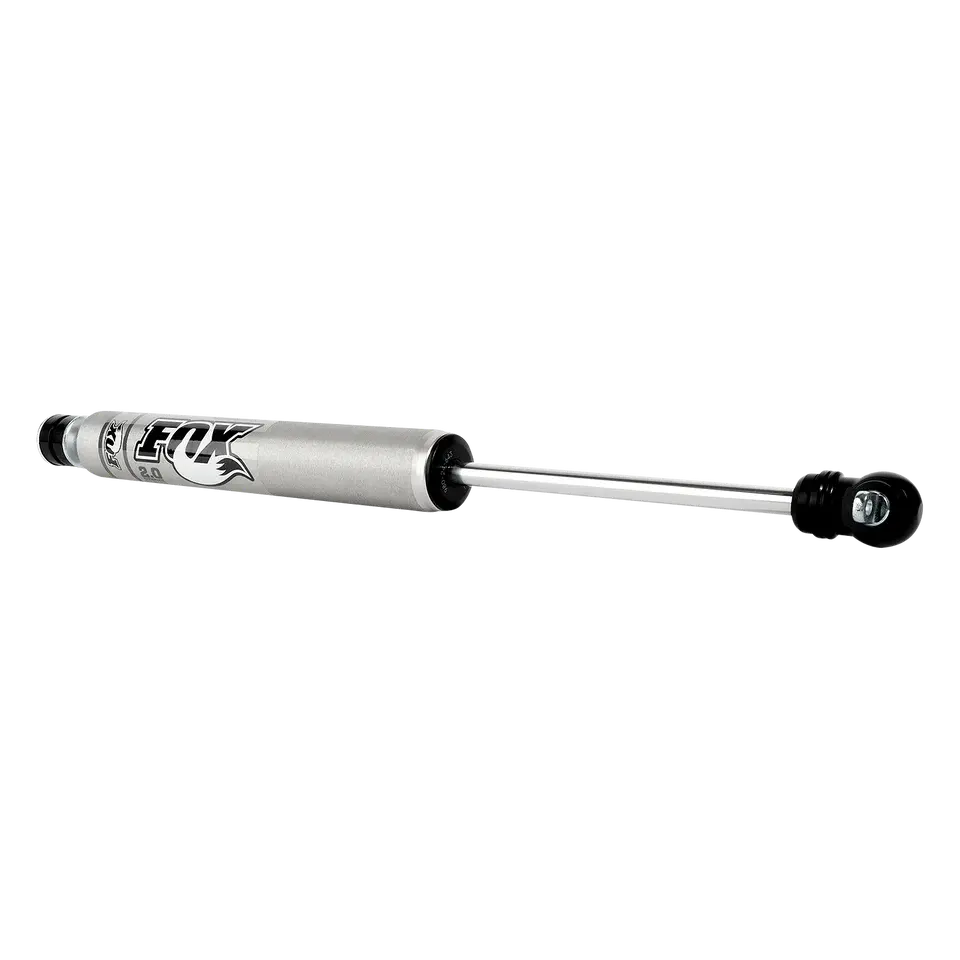

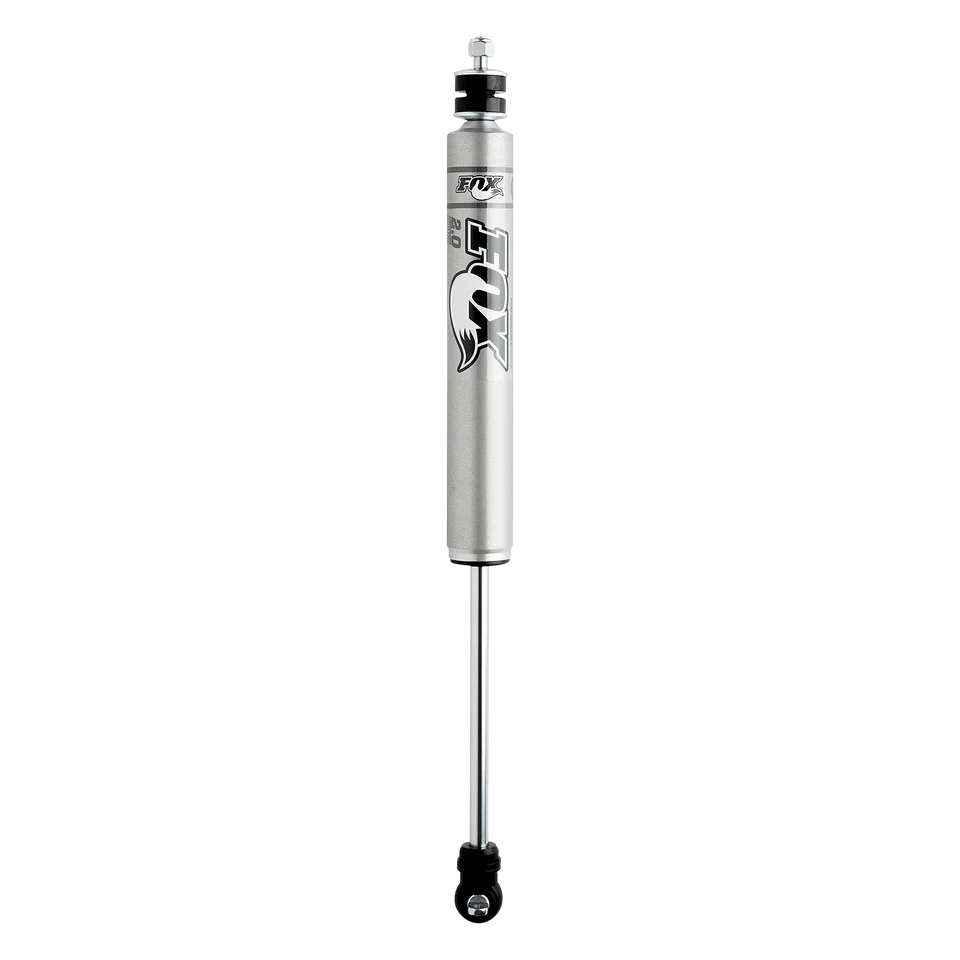

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 27.08
- Compressed - 16.7
- Travel - 10.13
- Top Mount - Stem Top
- Bottom Mount - Bar Pin
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984 - 2001 | |
| Jeep | Comanche | 1986 - 1992 | |
| Jeep | Grand Cherokee | 1993 - 1998 | |
| Jeep | Grand Cherokee | 1999 - 2004 |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
N
Nick
Sep 24, 2025
★
★
★
★
★
I have a 2016 RAM 1500 Crew Cab and I replaced the rear upper and lower control arms also the pan hard track bar and also the sway bar and links for the rear with all I had the articulating bushings. The vehicle now has no body role. They are absolutely incredible if you get the control arms you gotta get the CORE 4 x 4sway bar end links don’t don’t try and be cheap and get Moog or something else you got to get articulating bushings get the core 4 x 4 ones they are the best. My truck drives now through the canyons like a BMW. I have Fox high-performance shocks on there as well with all the CORE 4 x 4 suspension parts and they are amazing. Well worth the money I would highly recommend anybody thinking about CORE 4 x 4 go with CORE 4X4 and if you can go with their articulating bushings, they’re unbelievable drives better now than my Escalades. Well planted no body role and smooth on the Highway unbelievable the difference they all made!!
THANKS AGAIN CORE 4x4!!!!
JT
jacob trice
Apr 27, 2025
★
★
★
★
★
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul!
I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!!
I couldn't be happier with the transaction👍🏼
Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever.
Thanks Core 4x4, ya'll are welcome at my campfire anytime!
Jake T.
Pleasant Hill, Or.
RM
R2d2 Movi78
Feb 21, 2026
★
★
★
★
★
I’m extremely impressed with Core 4x4. The quality of their parts is outstanding — everything feels solid, well‑built, and engineered with real attention to detail. Shipping was fast and everything arrived perfectly packaged. Their customer service is just as good as their products: responsive, helpful, and genuinely committed to making sure you get exactly what you need.
Overall, a top‑tier experience. I’ll definitely be buying from them again. Specially thank you Mr. Linscomb from Core 4x4. Arturo M.
A
Aaron
Mar 23, 2024
★
★
★
★
★
I have recently come to know Core 4x4 when I purchased a Jeep XJ and was looking for a place that had dedicated XJ suspension and components. Here is what makes them different than most other shops. All of their components are top shelf quality and they back it up if you break any of it. I was able to see their shop when I picked up an order locally and was impressed with their attention to detail and how they assemble and powder coat each part. I had an issue with a shackle and needed the threaded shaft to be shorter. I called in and talked to Kaden and he told me to come by and they would shorten it for me. When I got there, Kaden and Spencer (the owner) met me and talked about options and proceeded to make the right adjustments to fit my XJ. Told me if anything changes in the future and I need additional length, they would take care of me. So what really sets them apart from others is their Customer Service. Try calling in to any other Jeep suspension or part shop and see how they treat you. Been there - done that.
Will continue to do business with Core and their team. Getting that kind of service for just a shackle has me thinking I may need to replace my JT components with Core's. Thanks Guys for being helpful good humans!
DT
Dean Tk421
Feb 21, 2026
★
★
★
★
★
I purchased the Jeep WJ control arms Camp series over a year ago. Very pleased and impressed. Easy installation and solid build. Bracket broke for rear upper control arm, they redesigned it to be more robust and sent me a new one with hardware, honoring their guarantee!
RC
Robert C
May 27, 2025
★
★
★
★
★
Fantastic products! Outstanding performance!! Absolutely the best customer service!! You will not be disappointed!
RT
Ruby Timm
Apr 27, 2025
★
★
★
★
★
Bought a new 2019 Ram 1500. Had bad rear wheel hop since new, got all four core 4x4 control arms and it fixed the issue. Thanks
DD
DANIEL DUSSAULT
Nov 23, 2025
★
★
★
★
★
Very beefy items for a very reasonable price. Personally have CORE rear track bar and all upper control arms for my 04 Jeep TJ. Had a slight issue with control arm length and they went above and beyond to swap jam nuts to get me where I needed to be. Really have to appreciate a company like this.
VK
Victor Keele
Sep 24, 2025
★
★
★
★
★
Great customer service. I got my front upper and lower control arms and hardware on Friday afternoon. It didn’t come with instructions so I called Core 4X4 and they immediately e mailed me the instructions. Also, the kit I got had the spacers missing so I called. It was late Friday by thus time but they took care of the issue first thing Monday morning and I got the spacers on Tuesday. Great company.
S
Sebastian
Oct 24, 2025
★
★
★
★
★
Great products they sell, got a crawl series long arm kit for my xj and it has held up quite nice, they are beefy, and for what ever reason they fail it has a great warranty with a customer service to match, when someone asks what control arm kit to buy I always recommend core 4x4
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Fox |
