Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

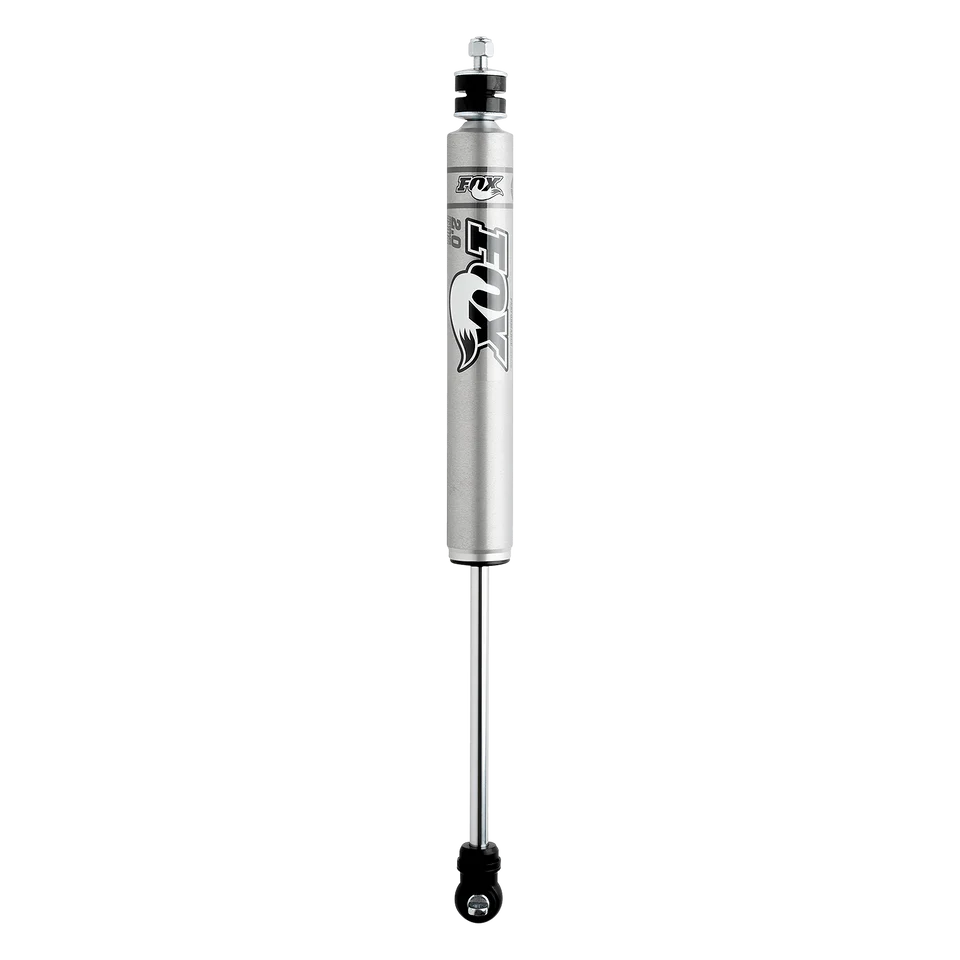

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 25.48
- Compressed - 15.85
- Travel - 9.63
- Top Mount - Stem Top
- Bottom Mount - BP1
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984 - 2001 | |
| Jeep | Comanche | 1986 - 1992 | |
| Jeep | Grand Cherokee | 1993 - 1998 | |
| Jeep | Grand Cherokee | 1999 - 2004 |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
WT
William Turton
Nov 23, 2025
★
★
★
★
★
Finally a company with a great product and customer service to match. I changed my order last minute from short arms to long arms. The lift is extremely well built. Korbey was awesome! Highly
recommend Core 4x4
JF
jacob fezza
Mar 24, 2022
★
★
★
★
★
I wanted to take a moment and give these guys a shout out, I’ve currently got, for my xj, their adjustable control arms, tier 4 adjustable track bar and adjustable leaf spring shackles. You can always count on a fair price, high quality products, and quick delivery. Keep up the great work guys, will definitely continue to shop with you
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
DD
Dmitriy D
May 27, 2025
★
★
★
★
★
Installed rear and upper control arms and track bar on my 3rd Gen 4RUNNER to align rear axle and restore factory wheel base after 3.5" lift. Car drives better than New! Improved handling cornering and overall driving. Very solid and high quality made product. Support is outstanding. Shipping extremely fast.
Thank you so much. I wish you will have something new for my car.
AM
Adam M
Sep 24, 2025
★
★
★
★
★
First time buying from Korby @ Core 4x4 and it’s being nothing short of a great experience. I bought the non adjustable Trail kit for my 5th Gen Ram 1500 with a 2” lift. The welds look great, nice powder coat finish and quality bushing. Had some trouble fitting the grease nipples due to the powder coating but a thread tap would fix that. They fit easily and perform great. I felt the improvement straight away. No more wheel hop on hard acceleration which was my main reason for the purchase.
I was missing some smaller bushings needed for the 5th Gen and Korby’s custom service was on point, with responsive emails and mailing out the missing parts straight away. Very happy with their products and customer service. Highly recommended company👌🏽
BB
Brayden Brockey
Mar 23, 2024
★
★
★
★
★
Got a set of upper control arms for my xj, really impressed with the quality
CD
Christopher Dami
Jun 26, 2025
★
★
★
★
★
2022 I ordered a 2023 Jeep Wrangler Rubicon in High Velocity yellow. Without any hesitation I knew I was going with Core 4x4’s 16pc Camp series suspension, powder coated in yellow. Compliments were a given from any and everyone that looked under my jeep. So beefy, I may have left some yellow paint on the rocks from Maine to Florida, but no bends or breaks. Customer service has been perfect each and every time I have needed something. Their warranty is top notch! Their communication is also wonderful. Might upgrade to the Crawl Series control arms where the Johnny joints are on both sides. Great all around company and a great team to troubleshoot your issue and come to a conclusion. Nothing bad to say about this company. Just love this suspension.
MV
Mr. V
Mar 24, 2021
★
★
★
★
★
Good quality parts, much stronger than stock
Z
Zion
Sep 24, 2025
★
★
★
★
★
Every product I have received from them has been nothing short of fantastic. Korby in Customer service went above and beyond to help me fix my own mistake. I cannot reccomend them enough.
K
Korosunagi
Jul 26, 2025
★
★
★
★
★
I broke a grease fitting off in my end link. I thought I was going to have to buy a new one. Reached out to Core 4x4 and wham! bam! They fixed it and sent it back with 2 day shipping. Got it a day early even. If they couldn't fix it they were going to send me a new one. Now that's customer service! They are now a permanent part of my garage.
Thank you Core 4x4!
