$444.95
$422.70
-

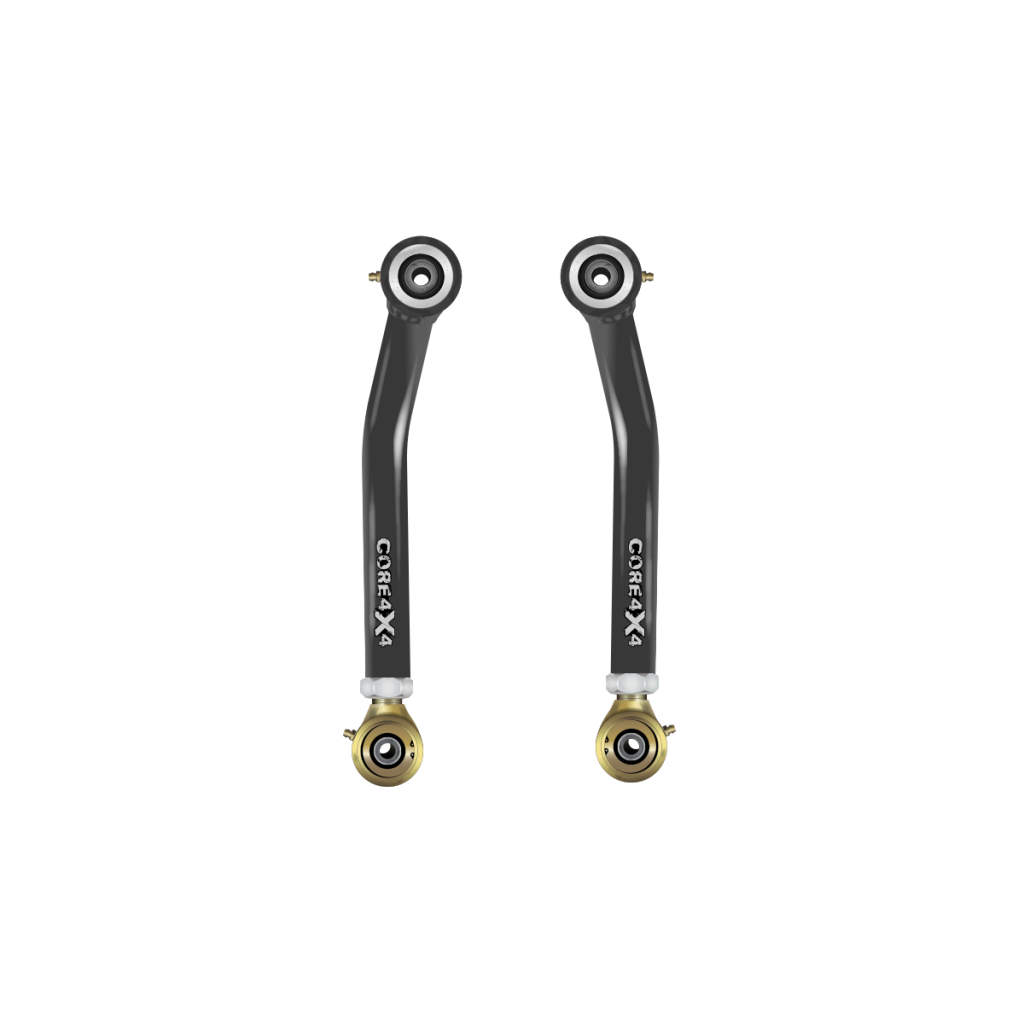

Experience the ultimate off-road flexibility with the Crawl Series Rear Lower Control Arms compatible with Jeep Wrangler TJ/LJ model years 1997-2006. These arms maintain excellent road manners while providing superior off-road performance. These control arms offer a definitive advantage over competitor aftermarket offerings in terms of durability and performance.
Our Rear Lower Control Arms are built with robust 1.75” OD DOM Tubing with .313” wall thickness, which outperforms most of our competitors. For improved flexibility and durability, each arm features original Johnny Joints at both ends.
These control arms are fully adjustable offering easy adjustment of your wheel center. Fine-tune your suspension setup and accommodates lifts from 0 to 6 inches, ensuring optimal performance regardless of your vehicle’s ride height. For lifts beyond 6 inches, additional options are available. Please contact us for more information.
For maximum durability and corrosion resistance, all our control arms undergo a 2-stage powder coating process. We begin with a zinc primer base followed by a durable top coat in your choice of color, ensuring long-lasting aesthetics and protection against the elements.
Our Crawl Series represents the pinnacle of American manufacturing. When you choose our Crawl Series, you are not only selecting a high-quality product but also supporting American-made products and benefiting from high manufacturing standards.
Installation is straightforward using factory hardware. For convenience, we offer optional Grade 8 hardware kits, available separately, for those dealing with stubborn or rusted bolts.
Investing in Crawl Series Rear Lower Control Arms means giving your vehicle the strength, durability, and off-road flexibility it deserves. Give your vehicle the upgrade it deserves and experience the difference in off-road performance today.
| Series | Crawl |
|---|---|
| Color Options | Charcoal, Orange, Yellow, Blue, Green, Light Green, Red, Purple, Black, White |
| Built With | 1.75" OD 5/16" Wall DOM tubing |
| Grease Fittings | Included |
| Lift Range | 0" — 6", 6"+ |
| Fixed End | Welded Rock Jock Johnny Joint |
| Thread Size | 1.25" x 12 TPI |
| Thread Length | 3.25" |
| Make | Model | Year |
|---|---|---|
| Jeep | Wrangler TJ | 1997 |
| Jeep | Wrangler TJ | 1998 |
| Jeep | Wrangler TJ | 1999 |
| Jeep | Wrangler TJ | 2000 |
| Jeep | Wrangler TJ | 2001 |
| Jeep | Wrangler TJ | 2002 |
| Jeep | Wrangler TJ | 2003 |
| Jeep | Wrangler TJ | 2004 |
| Jeep | Wrangler TJ | 2005 |
| Jeep | Wrangler TJ | 2006 |
| Jeep | Wrangler LJ | 1997 |
| Jeep | Wrangler LJ | 1998 |
| Jeep | Wrangler LJ | 1999 |
| Jeep | Wrangler LJ | 2000 |
| Jeep | Wrangler LJ | 2001 |
| Jeep | Wrangler LJ | 2002 |
| Jeep | Wrangler LJ | 2003 |
| Jeep | Wrangler LJ | 2004 |
| Jeep | Wrangler LJ | 2005 |
| Jeep | Wrangler LJ | 2006 |
Our product lines are designed to offer the absolute most value for your budget. Not every build is the same and we understand that. Our series differ mostly in the components used in the construction of the parts. Our Cruise and Town Series utilizes our high grade flex poly bushings at both ends of the arm, this has proven to be a smooth riding easy to maintain and replace bushing that we absolutely love. Our Camp and Trail Series utilizes 5/16″ wall DOM tubing and incorporates a flexible Johnny Joint at the adjusting end, this series has been our most popular series for all around use, great for daily drivers that want to tear up the trails as well. Our Crawl, Tow, and Track Series utilizes the same 5/16″ wall DOM tubing, but features Johnny Joints at both ends. This series gives you the absolute most out of your suspension. This is great for heavy towing/hauling and extreme off-roading. Also, if the component is straight in these series we will machine these left and right hand threaded for easy adjustment on the vehicle!
We are constantly expanding our product lines to include complete kits, if you don’t see something on the site for your vehicle, reach out to our sales team and we can put something together for you.
Our two main sizes of jam nuts require an1-1/2″ wrench or an 1-5/8″ wrench. Generally speaking the 1-5/8″ jam nuts are used on our lower control arms and the 1-1/2″ jam nuts on our upper control arms and track bars. There are some exceptions, but we do offer a crow’s foot that has both sizes.
Any non-synthetic moly based grease is safe on our products, avoid lithium greases and anything red as this can prematurely deteriorate the internal components of the Johnny Joints and bushings used on our parts.
